MAZAK QTN 250MY-II MULTI AXIS LATHES WITH MILLING AND Y AXIS
Have one to sell?
ConditionUsed
1 available

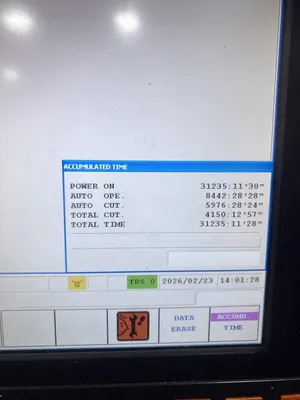

LESS THAN 4,000 HRS CUT TIME| AND 3 LIVE TOOL HOLDERS

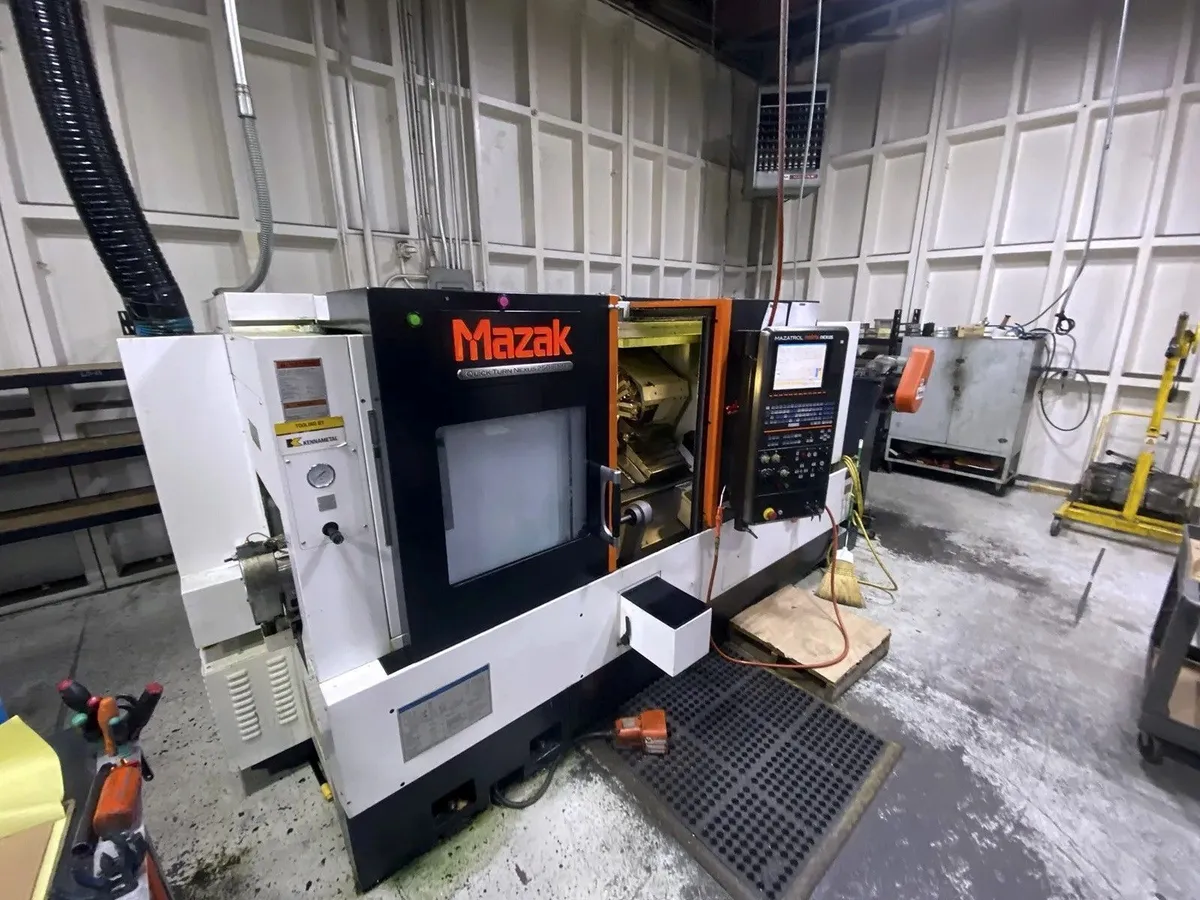

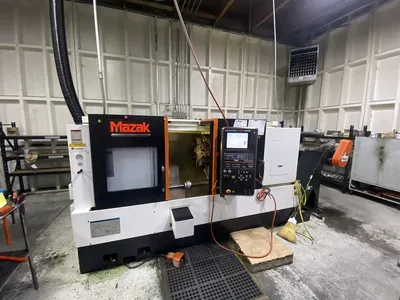

The 2011 Mazak QTN 250MY CNC Lathe with Mazatrol Matrix Nexus control is a versatile multi-tasking turning center designed for high-precision manufacturing. Equipped with Y-axis capability, it performs turning, milling, drilling, and tapping in a single setup. Ideal for aerospace, automotive, and medical industries producing shafts, gears, and complex housings in steel or aluminum with speed, accuracy, and efficiency.
MAZATROL MATRIX NEXUS
(3) TOOL HOLDERS
TAILSTOCK
PARTS CATCHER
TOOL PRESETTER
CHIP CONVEYOR
LESS THAN 4,000 HRS CUT TIME| AND 3 LIVE TOOL HOLDERS
The 2011 Mazak QTN 250MY CNC Lathe with Mazatrol Matrix Nexus control is a versatile multi-tasking turning center designed for high-precision manufacturing. Equipped with Y-axis capability, it performs turning, milling, drilling, and tapping in a single setup. Ideal for aerospace, automotive, and medical industries producing shafts, gears, and complex housings in steel or aluminum with speed, accuracy, and efficiency.
Imperial
| Maximum Swing | 26.6" |
| Max Turning Diameter | 14.76" |
| Main Spindle Bore/Max Bar Capacity | 3.5"/ 3.0" |
| Tail Stock/Sub Spindle | TAILSTOCK |
| Maximum Cutting Length | 40" |
| X-Axis Travel (X1, X2, X3) | 9" |
| Z-Axis Travel (Z1, Z2, Z3) | 43 |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 2" |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.5" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |

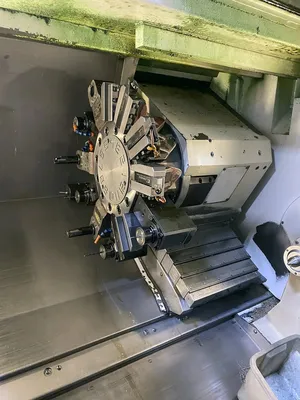

| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Number of Available Live Tool Holders | 3 |
| Control | CNC (MAZATROL MATRIX NEXUS) |
MAZATROL MATRIX NEXUS
(3) TOOL HOLDERS
TAILSTOCK
PARTS CATCHER
TOOL PRESETTER
CHIP CONVEYOR
