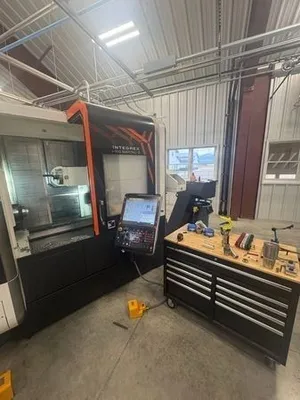

This 2017 MAZAK INTEGREX i100 BARTAC-S CNC Lathe is a versatile machine ready to enhance your workshop's capabilities. It is equipped with the user-friendly Mazatrol SmoothX CNC Control.
This model comes with a range of options and upgrades. The Chip Conveyor helps to remove waste efficiently, while the Tool Presetter simplifies setup and reduces time. Includes high-pressure coolant, mist collector, and several HSK toolholders.

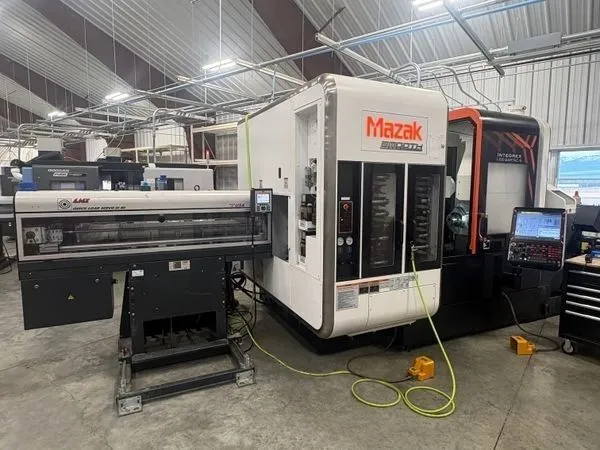

Included is a Bar Feeder that automatically supplies raw material, enabling continuous operation.
Live Tooling and Sub Spindle features enable complex, varied tasks without requiring separate machines. The Y Axis and 5 Axis functions further broaden the range of operations you can perform, adding depth to machining possibilities.
MAZATROL SMOOTH X
CHIP CONVEYOR
TOOL PRESETTER
BAR FEEDER
LIVE TOOLING
SUB SPINDLE
Y AXIS
5 AXIS
HIGH-PRESSURE COOLANT
MIST COLLECTOR
HSK TOOL HOLDERS (50+/ to be confirmed)
This 2017 MAZAK INTEGREX i100 BARTAC-S CNC Lathe is a versatile machine ready to enhance your workshop's capabilities. It is equipped with the user-friendly Mazatrol SmoothX CNC Control.
This model comes with a range of options and upgrades. The Chip Conveyor helps to remove waste efficiently, while the Tool Presetter simplifies setup and reduces time. Includes high-pressure coolant, mist collector, and several HSK toolholders.
Included is a Bar Feeder that automatically supplies raw material, enabling continuous operation.
Live Tooling and Sub Spindle features enable complex, varied tasks without requiring separate machines. The Y Axis and 5 Axis functions further broaden the range of operations you can perform, adding depth to machining possibilities.
Imperial
| Maximum Swing | 20.87" |
| Max Turning Diameter | 19.68" |
| Main Spindle Bore/Max Bar Capacity | 4" |
| X-Axis Travel (X1, X2, X3) | 17.72" |
| Z-Axis Travel (Z1, Z2, Z3) | 35.59" |
| Y-Axis Travel (Y1, Y2, Y3) | 8.27" |
| C-Axis Indexing (1, 2) | .0001/ .0001 |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Maximum Bar Work | 4" |
| Main Spindle Speed | 2,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 15 HP |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 hp |

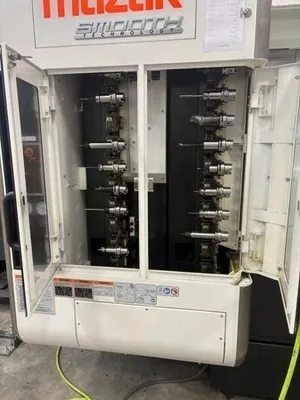

| ATC Magazine Capacity | 72 HSK-A63 |
| B-Axis Milling Spindle Speed | 12000 rpm |
| B-Axis Milling Spindle Horse Power | 10 |
| Bar Feed | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Workpiece Unloader & Conveyor | Intelligent Bar Loader |
| 5-AXIS MACHINING PACKAGE | YES |
| Control | CNC (MAZATROL SMOOTH X) |
MAZATROL SMOOTH X
CHIP CONVEYOR
TOOL PRESETTER
BAR FEEDER
LIVE TOOLING
SUB SPINDLE
Y AXIS
5 AXIS
HIGH-PRESSURE COOLANT
MIST COLLECTOR
HSK TOOL HOLDERS (50+/ to be confirmed)
