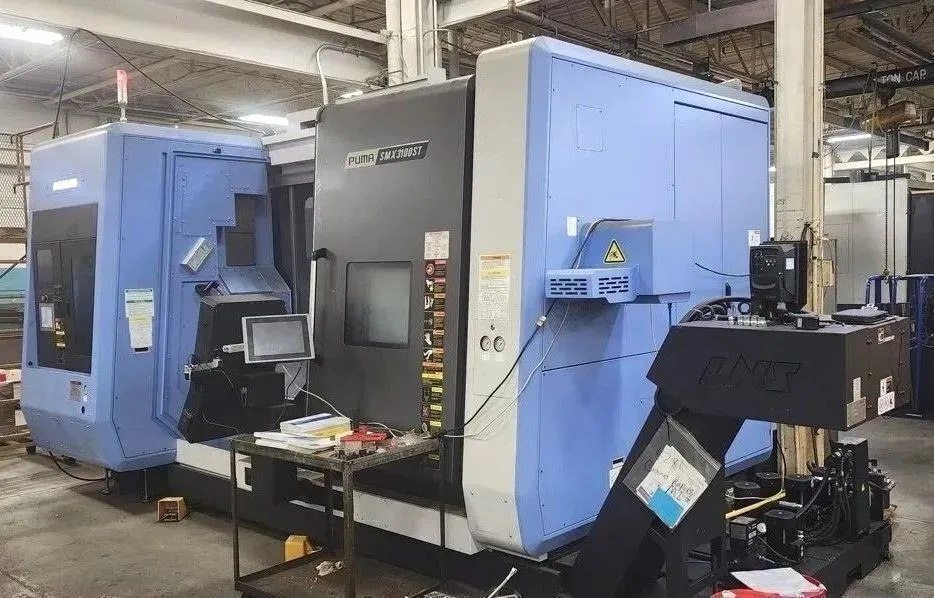

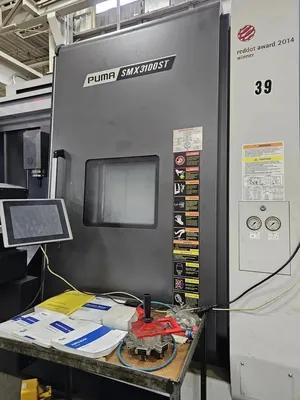

2019 DN SOLUTIONS PUMA SMX 3100ST - NEVER RAN PRODUCTION, NEVER TOOLED UP!!!
Have one to sell?
ConditionUsed
1 available
New in 2019: NEVER RAN PRODUCTION, NEVER TOOLED UP, Save Almost Half the Cost of a New Machine!
Mill-Turn Center with 12,000 RPM B-Axis Articulating Milling Head, 12 Station Live Tool Lower Turret, 80 Station ATC, Air Chuck with 5.5" bore, LNS Servo S3 T-L Quick Load Barfeed

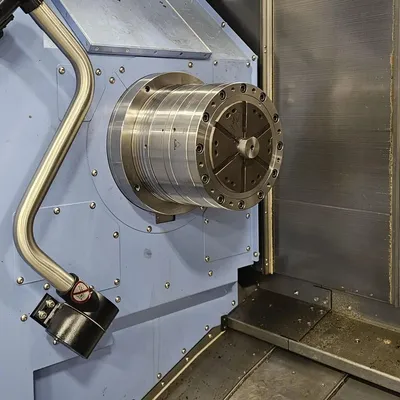

Main Spindle Chuck Size: Samchully Hch-18 18" 3-Jaw Chuck

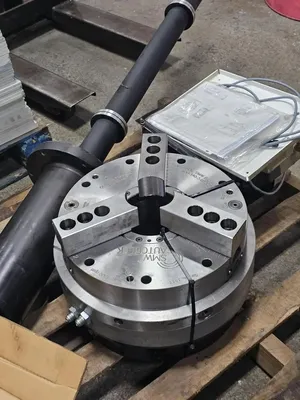

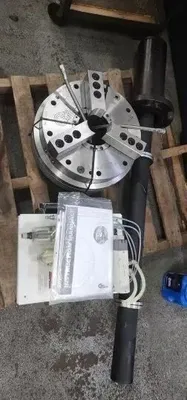

Collet Chuck on Main, Air Chuck with 5.5 Diameter Bore (on pallet)
Main Spindle Nose / Bore: 4.1" Bore, Current Spindle Liner
Setup Is Configured For 2.875" Bar Capacity
Main Spindle Indexing: Full C-Axis
Second Spindle Chuck Size: Samchully Mh-212 12" 3-Jaw Chuck
Second Spindle Indexing: Full C-Axis
NEVER RAN PRODUCTION, NEVER TOOLED UP, MILL-TURN CENTER WITH:

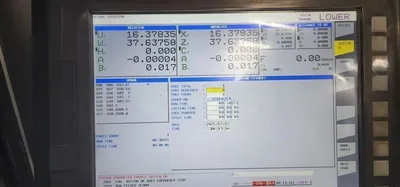

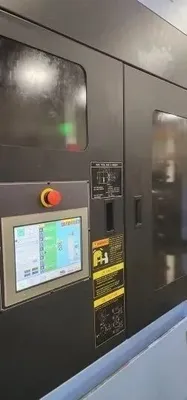

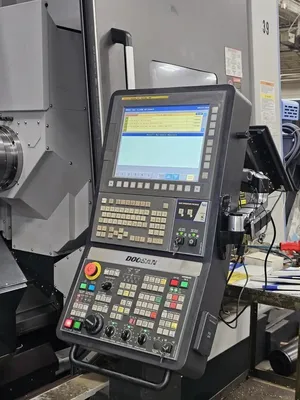

FANUC SERIES 31I-MODEL B5 CNC CONTROL W/ DOOSAN EASY OPERATION PACKAGE AND 15" DISPLAY

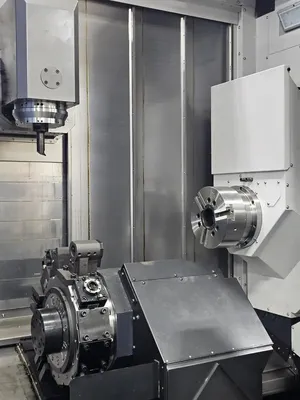

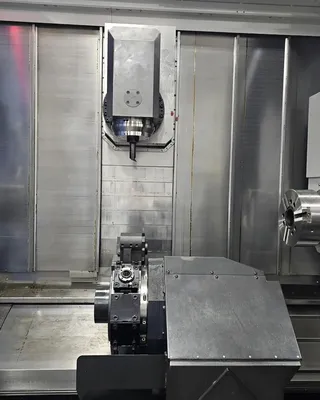

12,000 RPM B-AXIS ARTICULATING MILLING HEAD
12 STATION LIVE TOOL LOWER TURRET

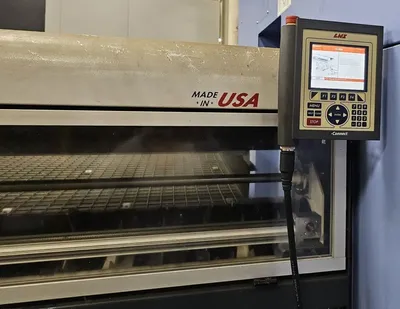

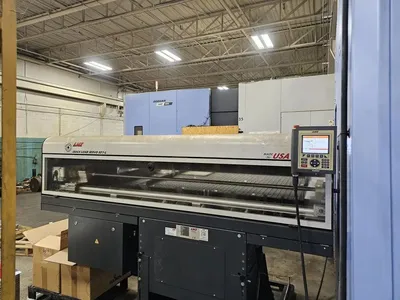

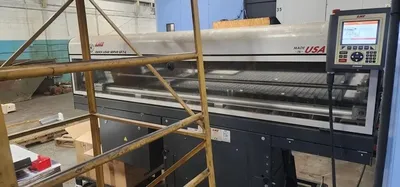

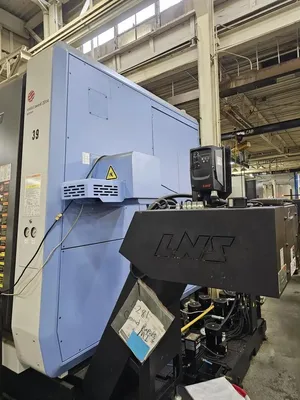

LNS BARFEED
12,000 RPM CAPTO C6 TAPER B, Z, & Y AXIS MILLING SPINDLE
80 STATION TOOL CHANGER WITH TOOL LIBRARY CONTROL SCREEN
COLLET CHUCK ON MAIN
AIR CHUCK WITH 5.5 DIAMETER BORE ( ON PALLET)
SAMCHULLY MH-212 12" 3-JAW CHUCK ON RIGHT SPINDLE
FULL C-AXIS ON BOTH SPINDLES,
40HP LEFT SPINDLE, 30HP RIGHT SPINDLE,
LOWER X/Z AXIS LIVE MILLING & STATIC TOOL TURRET WITH 12 STATIONS (ALL LIVE CAPABLE)
TOOL PRESETTER

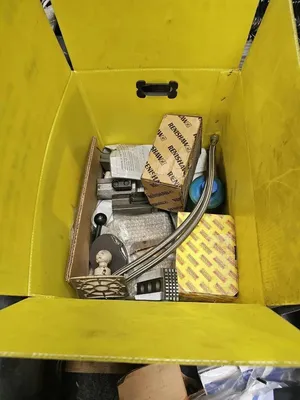

RENISHAW TOOL & PARTS PROBING SYSTEM WITH RMI-Q RADIO RECEIVER,
RENISHAW RPM600 PARTS PROBE
RENISHAW TRS2 LASER TOOL BREAKAGE DETECTION, SERVO AUTO DOOR, LNS MF2 FILTERING CHIP CONVEYOR WITH VARIABLE SPEED DRIVE, COMPLETE COOLANT SYSTEM AND TANK, MACHINE MANUALS
(3) CAPTO C6 TOOL HOLDERS,
(5) LIVE TOOLS, LIVE TOOLS, AND STATIC TOOL HOLDERS,

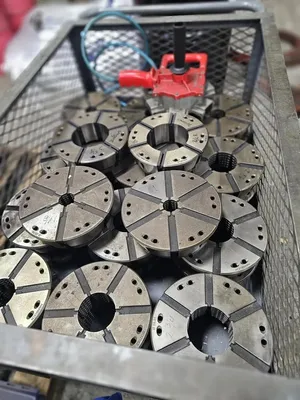

SERRATED COLLETS
1, 1 1/8, 1 1/4, 1 3/8, 1 1/2, 1 5/8, 1 3/4, 1 7/8, 2, 2 1/8 , 2 1/4, 2 3/8, 2 1/2, 2 5/8
2 3/4, 2 7/8, 3, 3 1/8, 3 1/4, 3 3/8, 3 1/2, 3 5/8, 3 3/4, 4, 4 1/4, 4 3/8, 4 1/2,
SMOOTH COLLETS, 3 5/8, 3 7/8
New in 2019: NEVER RAN PRODUCTION, NEVER TOOLED UP, Save Almost Half the Cost of a New Machine!
Mill-Turn Center with 12,000 RPM B-Axis Articulating Milling Head, 12 Station Live Tool Lower Turret, 80 Station ATC, Air Chuck with 5.5" bore, LNS Servo S3 T-L Quick Load Barfeed
Imperial
| Maximum Swing | 26" |
| Max Turning Diameter | 60.6" |
| Main Spindle Bore/Max Bar Capacity | 5.5" |
| Tail Stock/Sub Spindle | SUBSPINDLE |
| Maximum Cutting Length | 60.6" |
| X-Axis Travel (X1, X2, X3) | 27.4" |
| Z-Axis Travel (Z1, Z2, Z3) | 62.4" |
| Y-Axis Travel (Y1, Y2, Y3) | 11.8" |
| C-Axis Indexing (1, 2) | FULL C- AXIS |
| Main Spindle Chuck Size | 18" |
| Main Spindle Chuck Type | Collet |
| Main Spindle Bore Diameter | 5.5" |
| Main Spindle Maximum Bar Work | 5.4" |
| Main Spindle Speed | 3,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 40 HP |
| Sub Spindle/2nd Spindle Chuck Size | 12 |
| Sub Spindle/2nd Spindle Chuck Type | Air |
| Sub Spindle/2nd Spindle Speed | 4,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 35 HP |
| ATC Magazine Capacity | 80 |
| Number of Turrets | 1 |
| Turret Tool Positions 1, 2 | 12 |
| B-Axis Travel | +/- 240° |
| B Axis Rotary Tool Spindle Speed | 12000 rpm |
| B-Axis Rotary Tool Spindle Horsepower | 35 hp |
| Bar Feed | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Tool Eye Automatic Second Spindle | Yes |
| Number of Available Live Tool Holders | 5 |
| Control | CNC (Fanuc 31i-B5) |
Main Spindle Chuck Size: Samchully Hch-18 18" 3-Jaw Chuck
Collet Chuck on Main, Air Chuck with 5.5 Diameter Bore (on pallet)
Main Spindle Nose / Bore: 4.1" Bore, Current Spindle Liner
Setup Is Configured For 2.875" Bar Capacity
Main Spindle Indexing: Full C-Axis
Second Spindle Chuck Size: Samchully Mh-212 12" 3-Jaw Chuck
Second Spindle Indexing: Full C-Axis
NEVER RAN PRODUCTION, NEVER TOOLED UP, MILL-TURN CENTER WITH:
FANUC SERIES 31I-MODEL B5 CNC CONTROL W/ DOOSAN EASY OPERATION PACKAGE AND 15" DISPLAY
12,000 RPM B-AXIS ARTICULATING MILLING HEAD
12 STATION LIVE TOOL LOWER TURRET
LNS BARFEED
12,000 RPM CAPTO C6 TAPER B, Z, & Y AXIS MILLING SPINDLE
80 STATION TOOL CHANGER WITH TOOL LIBRARY CONTROL SCREEN
COLLET CHUCK ON MAIN
AIR CHUCK WITH 5.5 DIAMETER BORE ( ON PALLET)
SAMCHULLY MH-212 12" 3-JAW CHUCK ON RIGHT SPINDLE
FULL C-AXIS ON BOTH SPINDLES,
40HP LEFT SPINDLE, 30HP RIGHT SPINDLE,
LOWER X/Z AXIS LIVE MILLING & STATIC TOOL TURRET WITH 12 STATIONS (ALL LIVE CAPABLE)
TOOL PRESETTER
RENISHAW TOOL & PARTS PROBING SYSTEM WITH RMI-Q RADIO RECEIVER,
RENISHAW RPM600 PARTS PROBE
RENISHAW TRS2 LASER TOOL BREAKAGE DETECTION, SERVO AUTO DOOR, LNS MF2 FILTERING CHIP CONVEYOR WITH VARIABLE SPEED DRIVE, COMPLETE COOLANT SYSTEM AND TANK, MACHINE MANUALS
(3) CAPTO C6 TOOL HOLDERS,
(5) LIVE TOOLS, LIVE TOOLS, AND STATIC TOOL HOLDERS,
SERRATED COLLETS
1, 1 1/8, 1 1/4, 1 3/8, 1 1/2, 1 5/8, 1 3/4, 1 7/8, 2, 2 1/8 , 2 1/4, 2 3/8, 2 1/2, 2 5/8
2 3/4, 2 7/8, 3, 3 1/8, 3 1/4, 3 3/8, 3 1/2, 3 5/8, 3 3/4, 4, 4 1/4, 4 3/8, 4 1/2,
SMOOTH COLLETS, 3 5/8, 3 7/8
