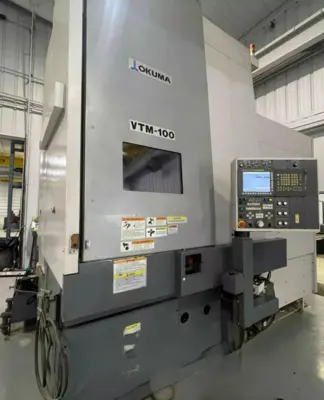

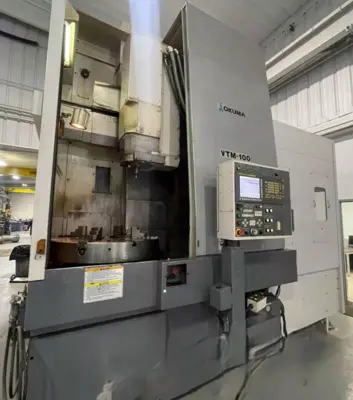

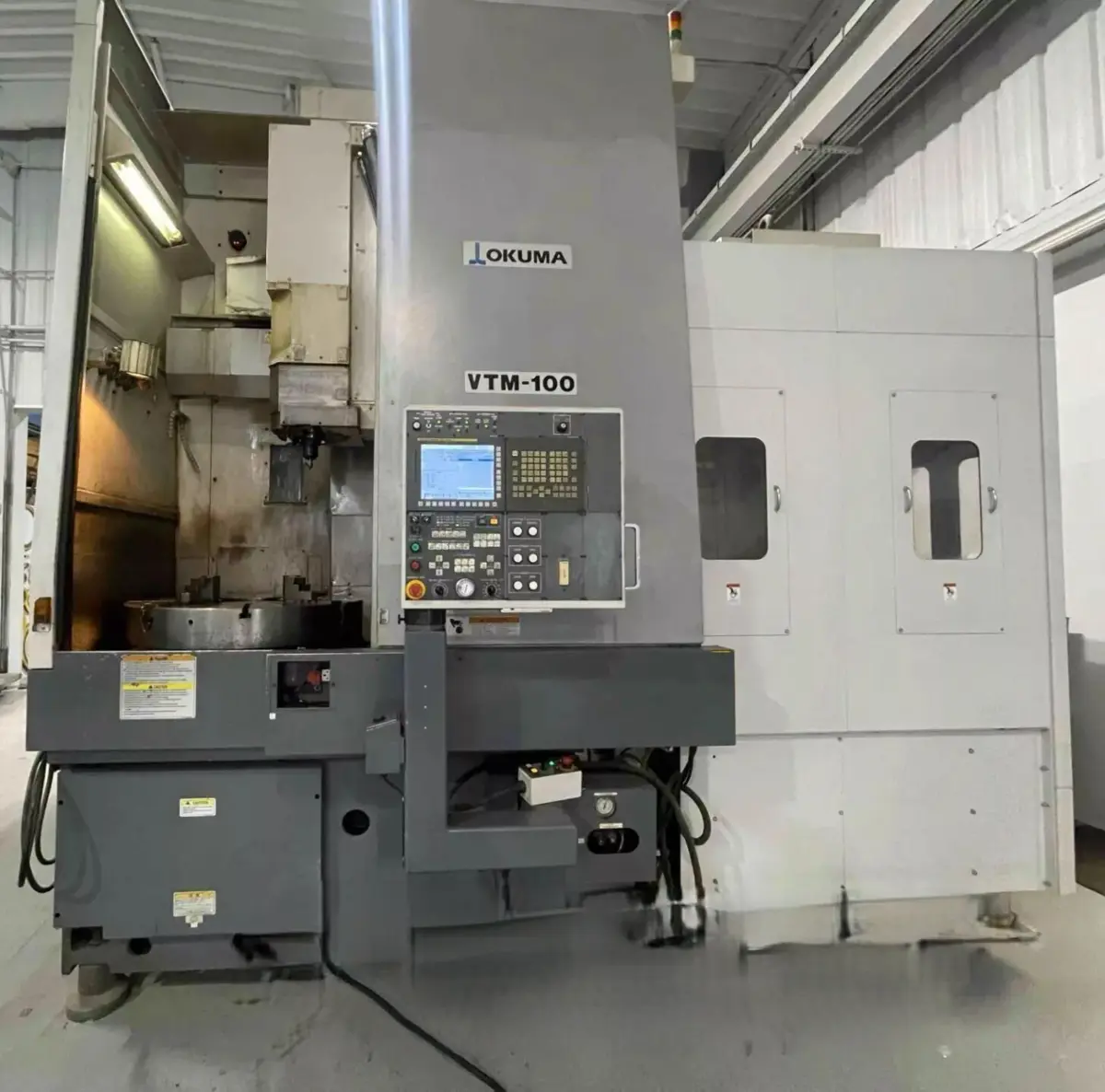

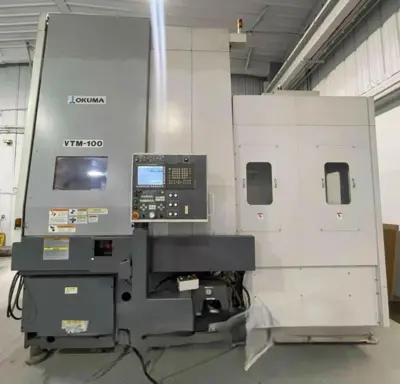

OKUMA VTM 100 VTL WITH C-AXIS MILLING

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
VTL VERT. LIVE SPINDLE CNC
Manufacturer:
OKUMA
Model:
VTM 100
Condition:
Excellent
Year:
2011
Stock #:
210987
Status:
For Sale

Description

Explore precise machining with the OKUMA VTM 100 VTL, featuring 40" max swing, 39.4" turn diameter, and 33" height. Equipped with FANUC 31i-MA control, C-axis live tool, 50 taper milling spindle, 60-station ATC, and through-spindle coolant.

Table Dia39.37"1,000 mm
Maximum Swing40"1,016 mm
Maximum Turning Diameter39.4"1,000.8 mm
Maximum Turning Height3333
Table Weight Capacity2,640 lb1,197.5 kg
Vertical Travel of Ram, Z-Axis30.07"763.78 mm
Horizontal Railhead Travel, X-Axis25.59"25.59"
Chuck size39.339.3
Main Table Motor40 HP40 HP
Table RPM1,250 RPM1,250 RPM
Live Spindle Motor10/ 7.5 HP10/ 7.5 HP
Live Spindle Speed, 2-Ranges10 - 450010 - 4500
C-Axis Contouring360,000360,000
Automatic Tool Changer6060
Rapid Traverse X/Z630630630630
Tool ShankCAT 50CAT 50
Feed Rate "C" Axis360 deg
ControlCNC (FANUC 31i-MA)CNC (FANUC 31i-MA)
Dimensions169″ x 126″ x 169″169″ x 126″ x 169″
Weight29,767 LBS29,767 LBS

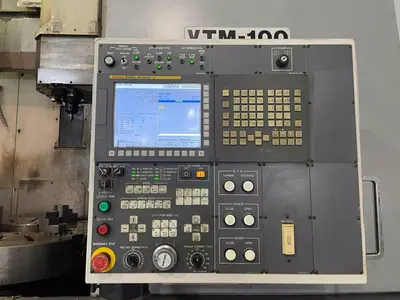

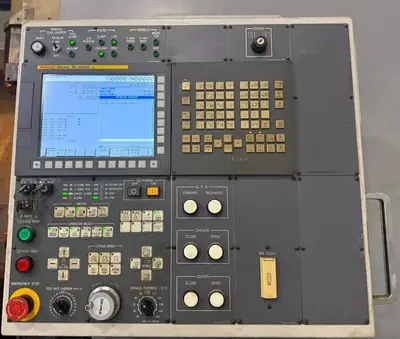

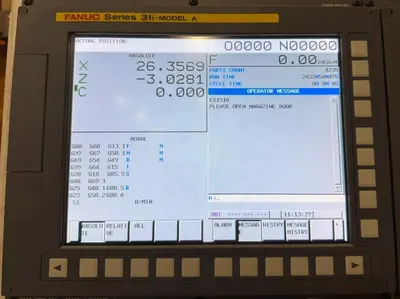

FANUC 31i-MA CONTROL

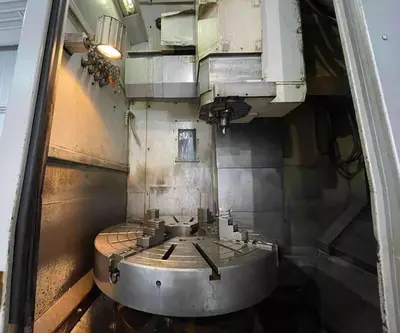

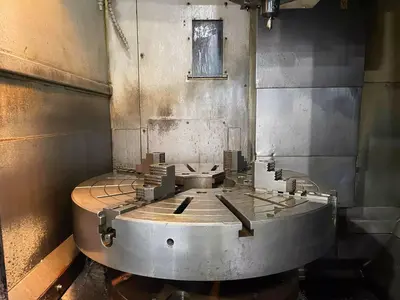

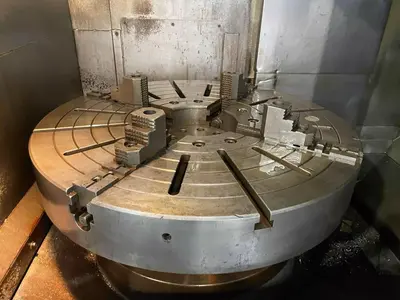

39.37″ 4-JAW CHUCK
C AXIS LIVE TOOL

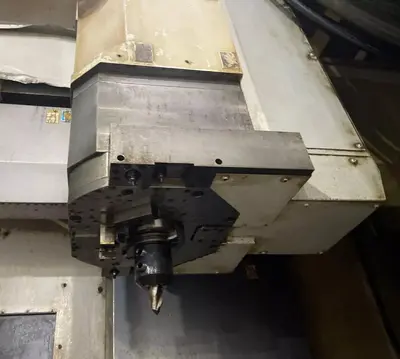

50 TAPER MILLING SPINDLE

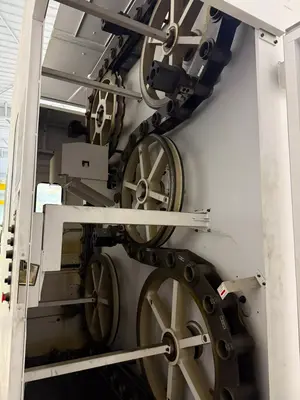

60 STATION AUTOMATIC TOOL CHANGER
A2-11 SPINDLE NOSE
4.33″ SPINDLE BORE

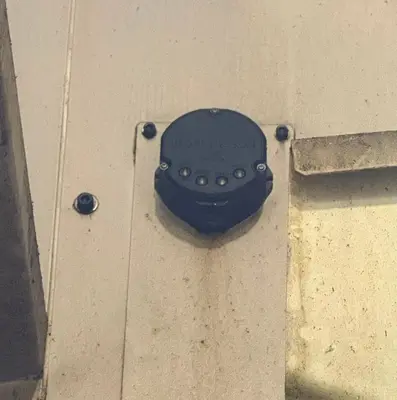

PROBING SYSTEM (TOOL PROBE INCLUDED)

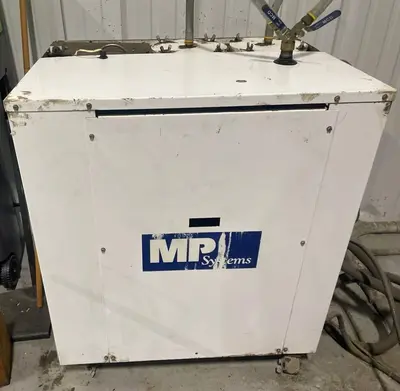

THROUGH SPINDLE COOLANT
CHIP CONVEYOR
FOOT SWITCHES
