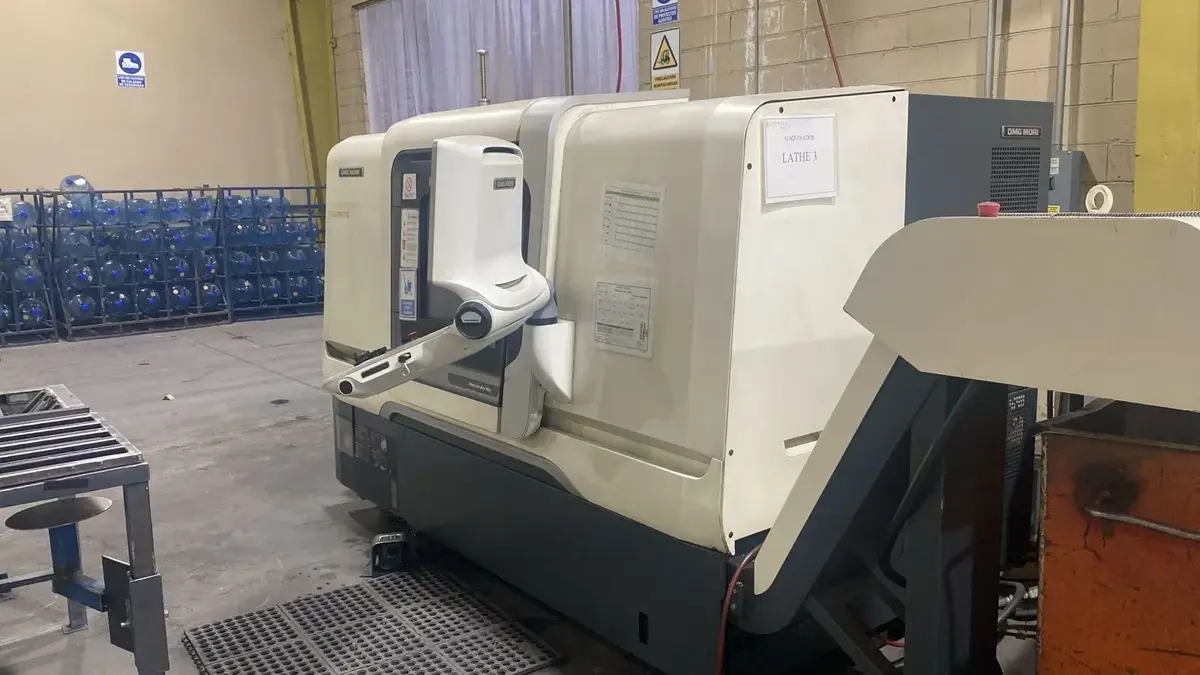

DMG MORI NLX 2500/ 700 LATHE

NLX 2500/700 (2021) — Turning Only Specs
📐 Capacity
• Max turning diameter: 14.4 in (366 mm)
• Max turning length: 27.8 in (705–708 mm)
• Swing over bed: ~36.2 in (920 mm)
• Swing over cross slide: ~29.2 in (740 mm)
• Bar capacity:
o Standard: ~3.1–3.5 in (80–90 mm)
o Optional big bore: up to 4.1 in (105 mm)

🧭 Axis Travels (2-Axis Machine)
• X-axis: 10.2 in (260 mm)
• Z-axis: 31.3 in (795 mm)
• Y-axis: ❌ Not equipped (turning-only configuration)

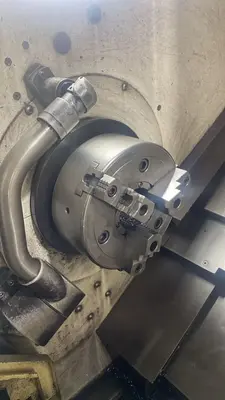

⚙️ Spindle (Main Only)
• Chuck size: typically 10” (standard)
• Spindle speed:
o 4,000–5,000 RPM (standard range)
• Spindle motor: ~25 HP (18.5 kW)
• Spindle bore: ~3.1–3.6 in (80–91 mm typical)

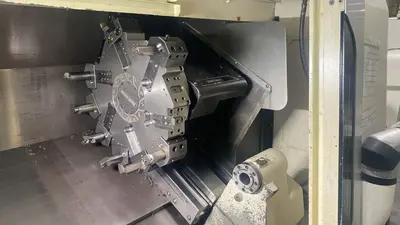

🔧 Turret (Turning Only)
• Type: BMT or VDI turret (non-live tooling setup)
• Stations: typically 10–12 tools
• Live tooling: ❌ Not included
• Driven tools RPM: ❌ N/A

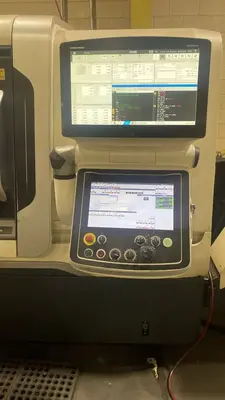

⚡ Control
• Control system:
o MAPPS (Mitsubishi-based)
o CELOS interface (2021 machines)

🏗️ Machine Construction
• Guideways: Box ways (not linear rails)
• Thermal compensation: Standard
• Bed: One-piece slant bed for rigidity

📏 Physical / General
• Machine weight: ~13,000–14,000 lbs
• Footprint: ~13 ft x 8–9 ft (varies with options)
