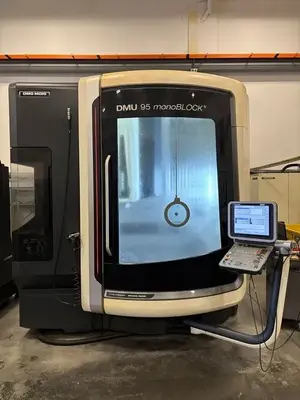

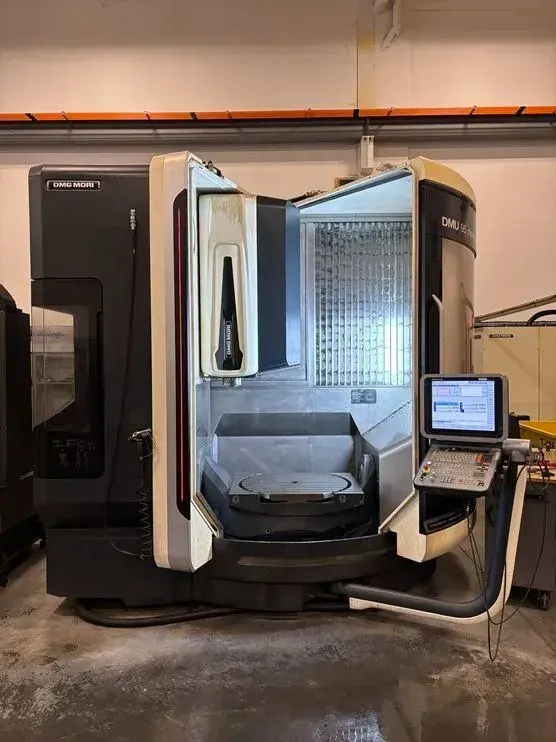

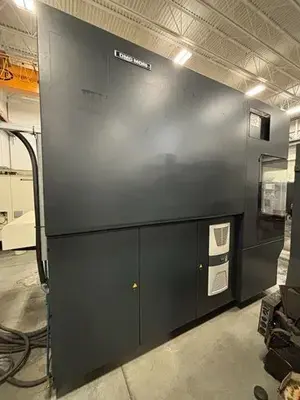

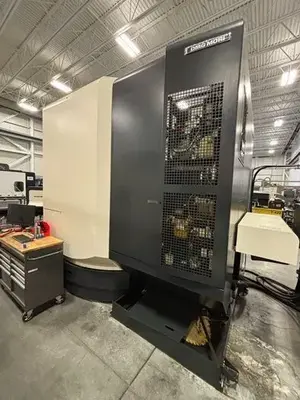

DMG MORI DMU 95 MONOBLOCK CNC 5 AXIS VERTICAL MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
DMG MORI DMU 95 Monoblock CNC 5 Axis Machining Center, 2019 model. Ideal for precision engineering, this used unit offers advanced capabilities in a compact form, enhancing workflow efficiency with simultaneous 5 axis capabilities for Medical or Aerospace industries.
SPECIFICATIONS:
NUMBER OF TABLES / PALLETS 1
TABLE SIZE - L 39.3"
TABLE SIZE - W 29.5"
WEIGHT ON TABLE 2,200 lb

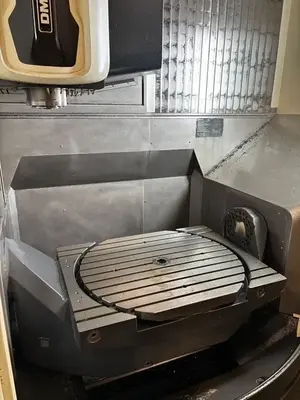

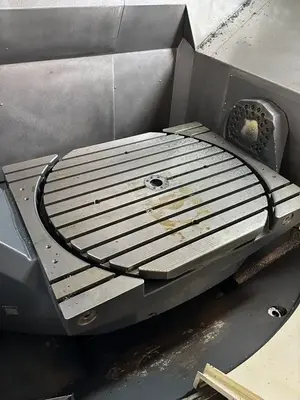

INTEGRATED NC ROTARY TABLE SIZE 33.4"
MAIN SPINDLE HORSE POWER 46.9 hp
MAIN SPINDLE SPEEDS 20,000 RPM
MAX WORKPIECE DIAMETER AND HEIGHT 40.9" X 23.2" HT.
MAIN SPINDLE TAPER HSK A63.0
X - AXIS TRAVEL 37.4"
Y - AXIS TRAVEL 33.5"
Z - AXIS TRAVEL 25.6"
A - AXIS TRAVEL + - 120 DEGREES
C - AXIS TRAVEL TABLE INDEXING 360 DEGREES
RAPID TRAVERSE RATE - X 1,576 in/min.
RAPID TRAVERSE RATE - Y 1,576 in/min.
RAPID TRAVERSE RATE - Z 1,576 in/min.
CUTTING FEED RATE 1,576 in/min.

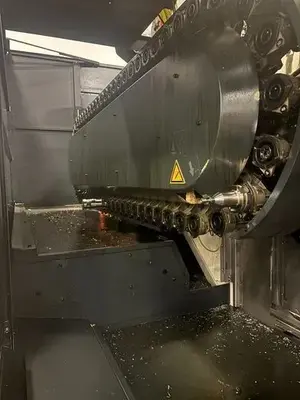

AUTOMATIC TOOL CHANGER 60
TOOL DIAMETER 3.14", 6.3"
TOOL LENGTH 16.5"
TOOL WEIGHT 17.6 lb
MACHINE WEIGHT 39,462 lb
CONTROL CNC (HEIDENAIN TNC 640 3D CNC CONTROL)
EQUIPPED WITH:

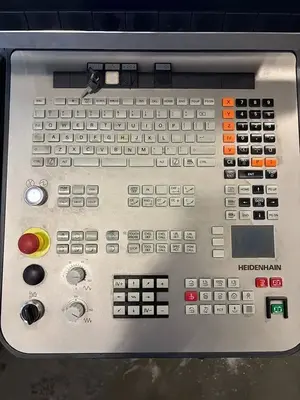

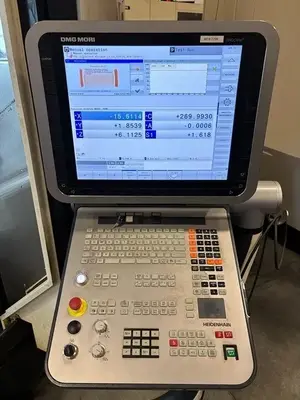

HEIDENHAIN TNC 640 3D CNC CONTROL
SPEED MASTER SPINDLE 20,000 RPM
MDYNAMICS PACKAGE
MPC MACHINE PROTECTION CONTROL
SAFETY PACKAGE FOR POWER FAILURE
SPRAY PISTAL WITH PUMP
ROTATING CLEARVIEW WINDOW
COOLANT RING JET
3D QUICKSET
CHIP CONVEYOR
INFRARED MEASURING PROBING RENISHAW SK 40
BLUM LASER TOOL LENGTH MEASUREMENT

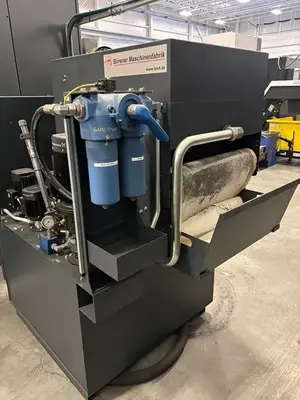

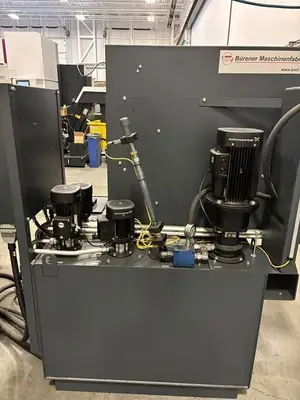

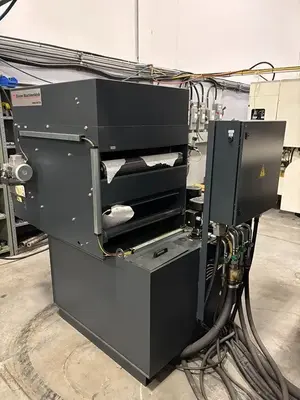

PRODUCTION PACKAGE 40 BAR/23L/MIN 500L TANK COOLANT THRU SPINDLE AND FILTRATION
HSK A63 WITH 60 ATC
HAND HELD REMOTE PULSE GENERATOR
INNER COOLED BALL SCREWS
OPTIMAL 3-POINT SUPPORT SYSTEM
3D SIMULTANEOUS GRAPHICS
DYNAMIC COLLISION MONITORING (DCM)
SIMULTANEOUS 5 AXIS MILLING B-AXIS
TRANSFORMER
