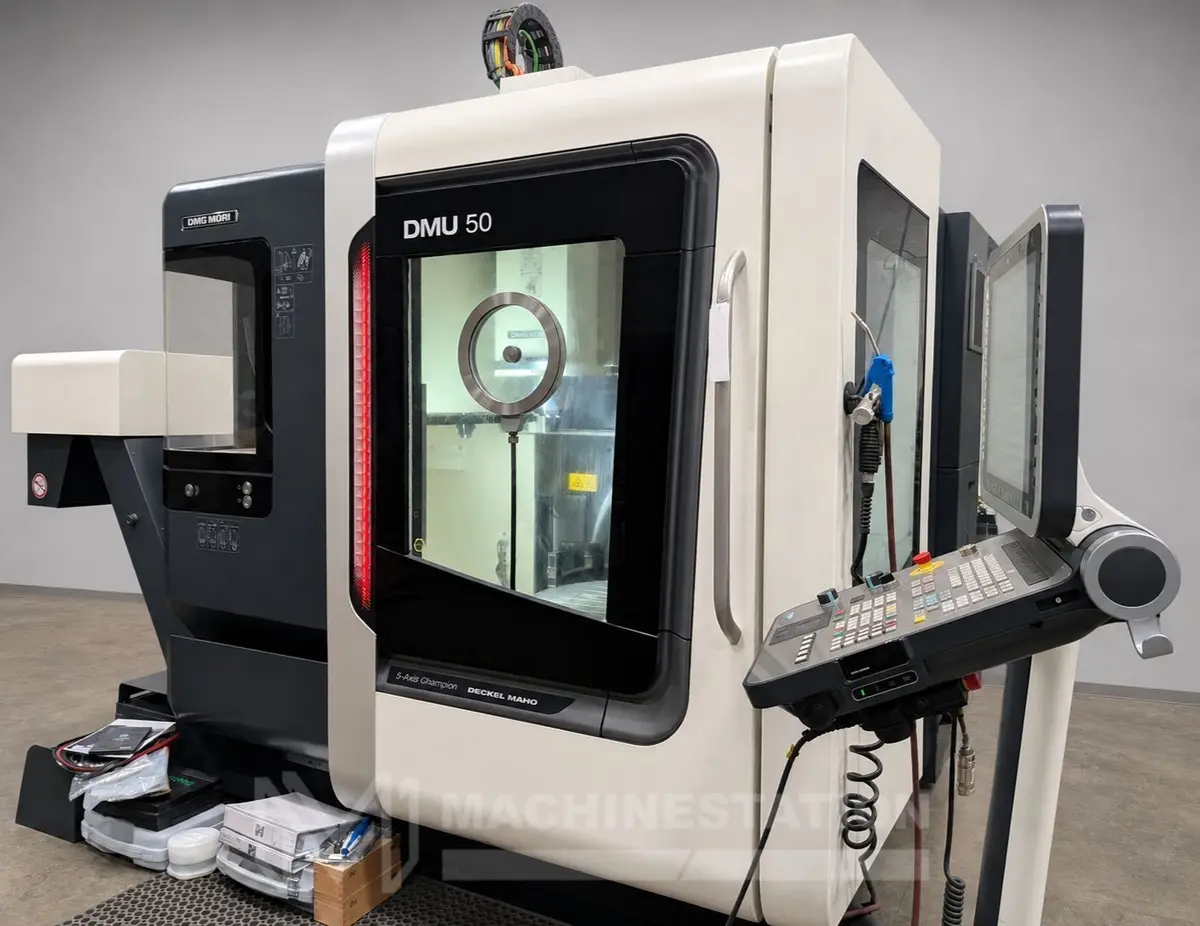

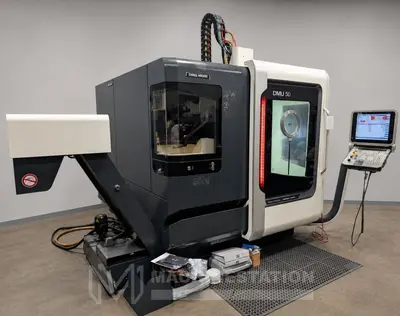

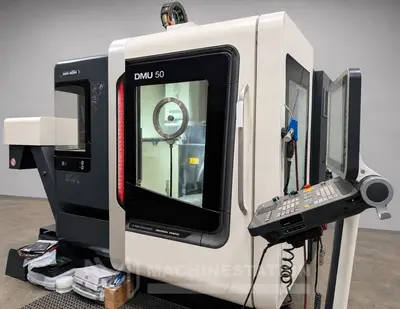

2015 DMG MORI DMU 50 5-AXIS CNC VERTICAL MACHINING CENTER - 18,000 RPM MILL
Have one to sell?
ConditionUsed
1 available
2015 DMG MORI DMU 50 GEN II, 5-axis CNC vertical machining center with 18,000 RPM spindle, 60-tool ATC, and Siemens ERGOline control. Features include through-spindle coolant, 3D QuickSet, and a trunnion table. Max table load: 661 lbs; CAT 40 spindle.
Max Weight on Table: 661 lbs
Max Tool Size: 3.14″ X 11.81″
Max Tool Weight: 17.63 lbs.
Air Required: 80 psi, 4 scfm
Power: 400 v / 60 hz / 34 kva

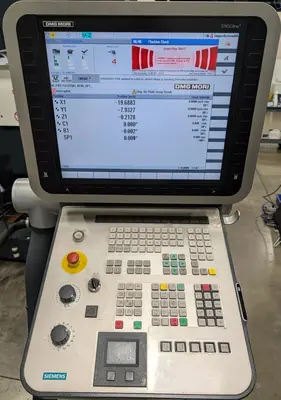

SIEMENS ERGOline CNC CONTROKL

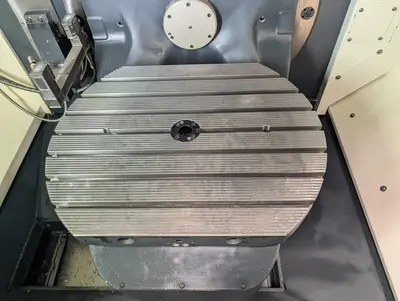

ø 24.8″ × 19.7″ TRUNNION TABLE
18,000 RPM HIGH SPEED SPINDLE

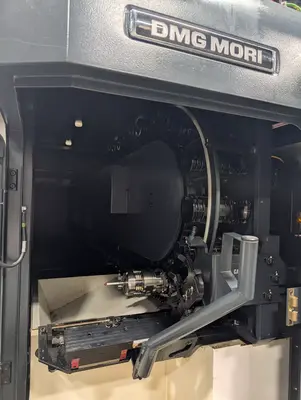

60 STATION AUTOMATIC TOOL CHANGER
THROUGH SPINDLE COOLANT
MICRON PAPER FILTERATION COOLANT SYSTEM

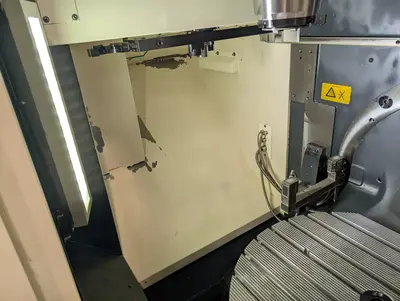

DMG MORI POWER PROBING SYSTEM (TOOL PROBE INCLUDED)
INTERNAL WINDOW COOLANT WIPER

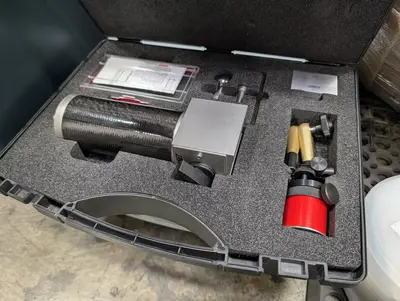

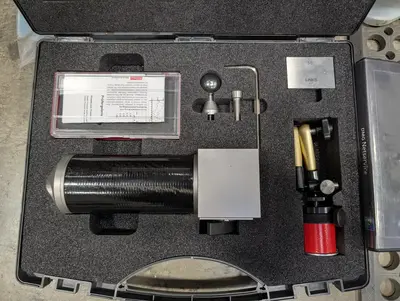

3D QUICKSET
CHIP CONVEYOR

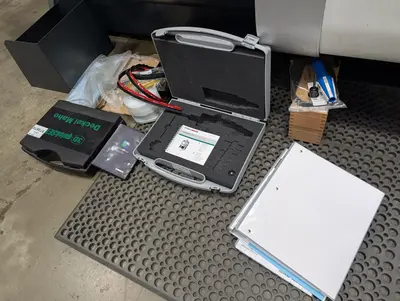

BOOKS & MANUALS
2015 DMG MORI DMU 50 GEN II, 5-axis CNC vertical machining center with 18,000 RPM spindle, 60-tool ATC, and Siemens ERGOline control. Features include through-spindle coolant, 3D QuickSet, and a trunnion table. Max table load: 661 lbs; CAT 40 spindle.
Imperial
| X Travel | 19.7" |
| Y Travel | 17.7" |
| Z Travel | 15.7" |
| Spindle Speed | 18000 rpm |
| Tool Capacity (ATC) | 60 |
| Table Size (W) | 19.7" |
| Table Size (L) | 24.6" |
| Main Spindle Motor | 20 hp |
| Spindle Taper | CAT 40 |
| Table Type C-Axis Table Rotation | 1 Degree Index |
| B-Axis (Table Swivel) | -35° +110° ( Table Tilt ) |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 945 IPM |
| Control | CNC (SIEMENS 840D ERGOLINE) |
| Dimensions | 216.5″ x 135″ x 106″ High Approx. |
| Weight | 10,604 LBS |
Max Weight on Table: 661 lbs
Max Tool Size: 3.14″ X 11.81″
Max Tool Weight: 17.63 lbs.
Air Required: 80 psi, 4 scfm
Power: 400 v / 60 hz / 34 kva
SIEMENS ERGOline CNC CONTROKL
ø 24.8″ × 19.7″ TRUNNION TABLE
18,000 RPM HIGH SPEED SPINDLE
60 STATION AUTOMATIC TOOL CHANGER
THROUGH SPINDLE COOLANT
MICRON PAPER FILTERATION COOLANT SYSTEM
DMG MORI POWER PROBING SYSTEM (TOOL PROBE INCLUDED)
INTERNAL WINDOW COOLANT WIPER
3D QUICKSET
CHIP CONVEYOR
BOOKS & MANUALS
