2012 CAMPBELL 750-36-36-36/42

2012 CAMPBELL 750-36-36-36/42

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
Vertical Universal Grinders
Manufacturer:
CAMPBELL
Model:
750-36-36-36/42
Condition:
Very Good
Year:
2012
Stock #:
211004
Status:
For Sale

Description

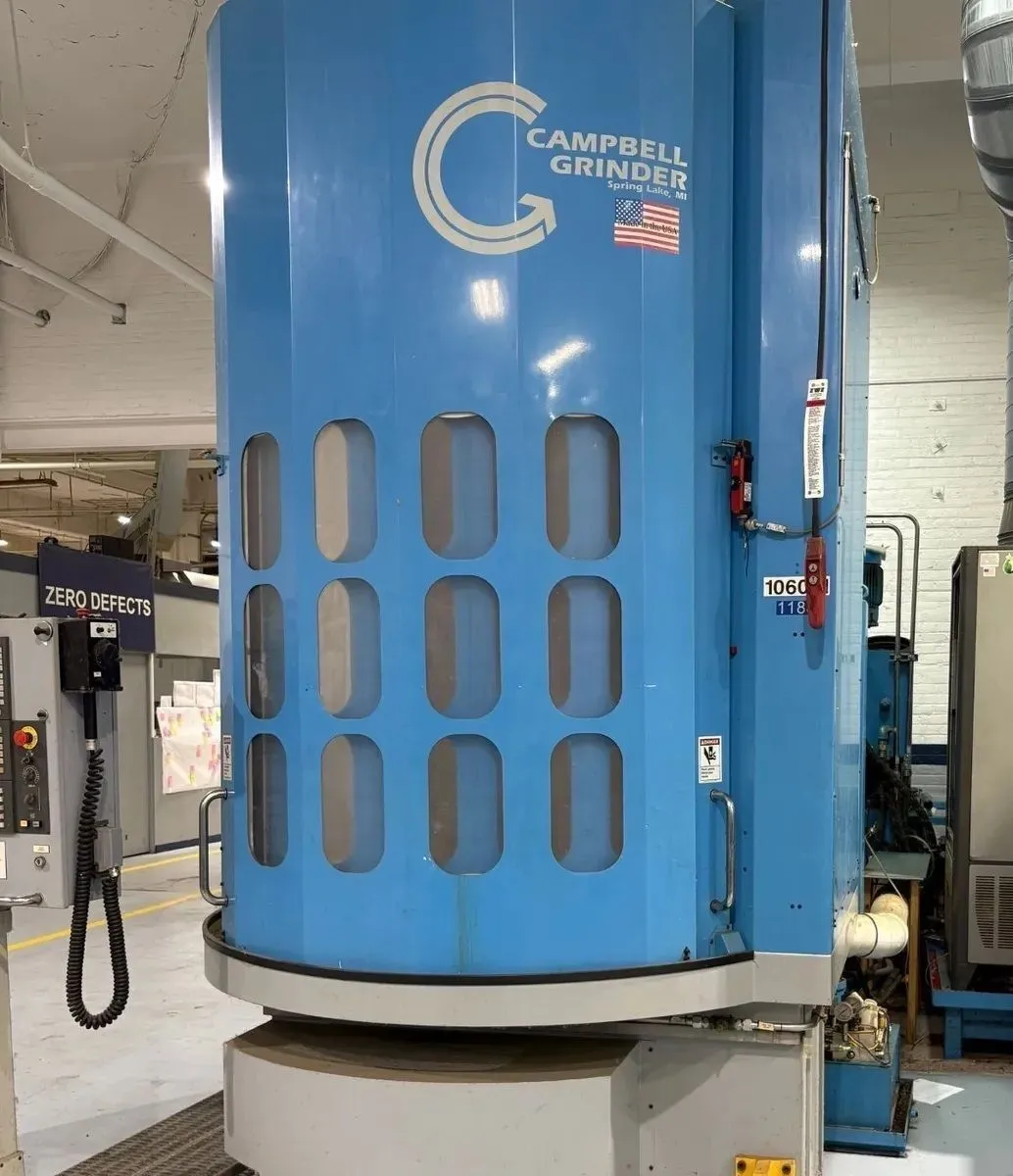

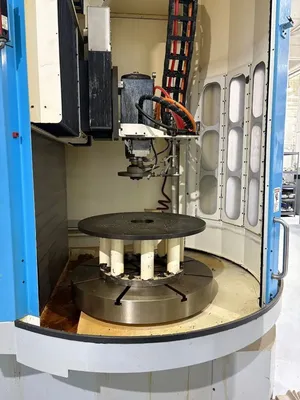

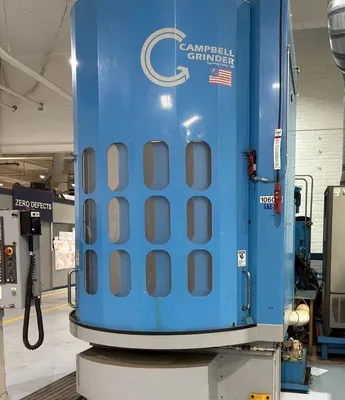

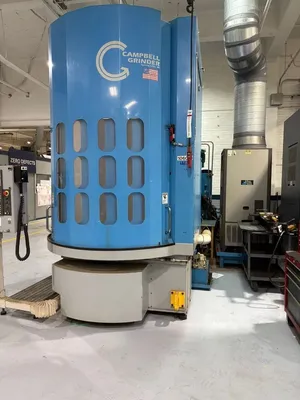

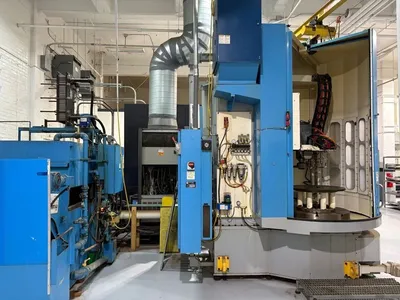

2012 CAMPBELL 750-36-36-36/42 Vertical Universal Grinder, used condition. Features a 36" table dia, 42" swing, 25 hp power, 7,200 RPM max speed. Equipped with FANUC 32I CNC, cooling filter, chiller, mist collector, and grinding wheels.

Table Dia36"914.4 mm
Swing42"1,066.8 mm
Power25 hp18.6 kW
RPM7,200 RPM7,200 RPM
ControlCNC (FANUC 32i)CNC (FANUC 32i)
Dimensions208″ L-R x 166″ F-B x 139″ H208″ L-R x 166″ F-B x 139″ H
Weight25,000 Lbs.25,000 Lbs.

PART HEIGHT – MAXIMUM: 24″ (ARBOR DEPENDENT)
AND APPROACH DEPENDENT, ANGULAR OR STRAIGHT APPROACH
X-AXIS: 36″
Z-AXIS: 36″
MAIN GRINDING SPINDLE: 25 HP
CAMPBELL GRINDER FOR SALE SPINDLE SPEEDS: 1,500 TO 7,200 RPM
SPINDLE TAPER: HSK-80
B-AXIS (SPINDLE SWIVEL): +/- 180 DEGREES
TABLE DRIVE MOTOR (A.C. DIGITAL SERVO “WHISPER DRIVE”): 7.5 HP
C-AXIS TABLE DRIVE: 0 – 150 RPM
TABLE RUN-OUT, RADIAL & AXIAL: 0.0001″
ROTARY DRESSER SPINDLE MOTOR: 10 HP / 3600 RPM
ELECTRICS: 480/3/60

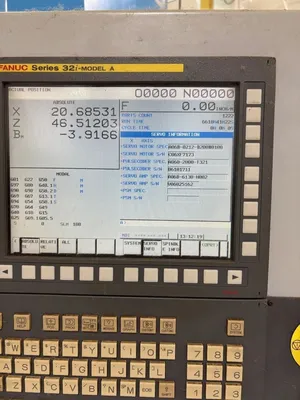

FANUC SERIES 32I CNC
COOLING FILTER (14'X5') DIMENSIONS
CHILLER (4' X 5)'
MIST COLLECTOR
GRINDING WHEELS
