YOU JI 1000-ATC (2009)
Have one to sell?
ConditionUsed
1 available

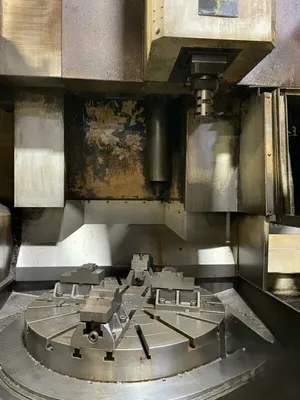

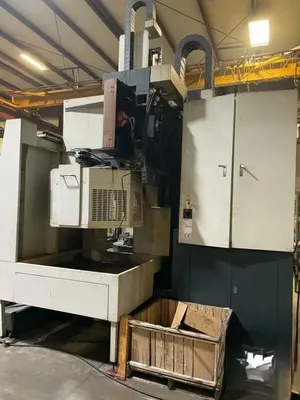

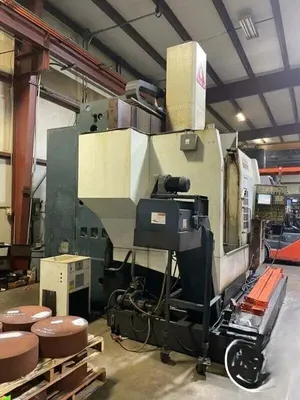

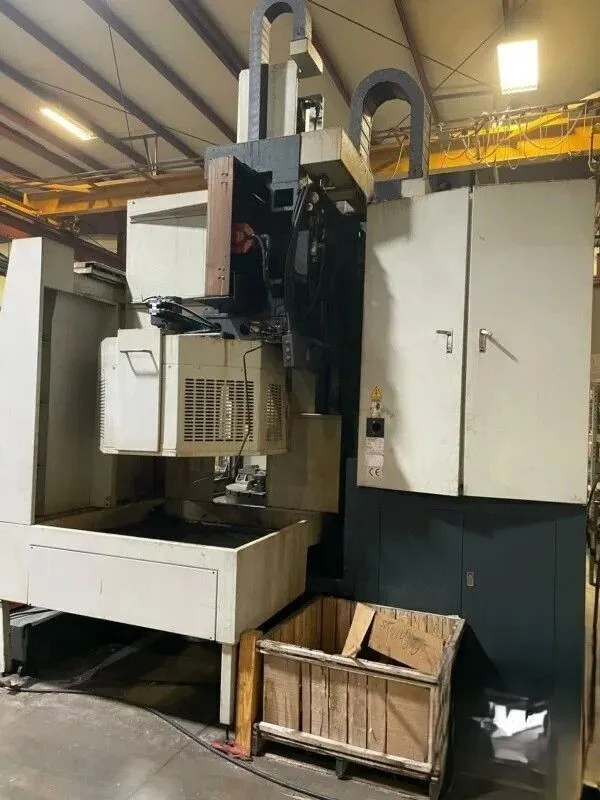

Discover the YOU JI 1000-ATC VTL Vertical CNC, a used 2009 model. Featuring a 39.37" table, 8,800-lb load capacity, 12-station ATC, and a 60 hp motor, this machine is equipped with a Fanuc Oi-TD CNC control and offers robust precision in heavy-duty tasks.
TABLE DIAMETER 39.37″
MAXIMUM SWING 53.14″
MAXIMUM CUTTING DIAMETER 43.30″
MAXIMUM CUTTING HEIGHT 35.43″
RAIL TRAVEL 20″
RAM STROKE, Z-AXIS 31.49″
TABLE WEIGHT CAPACITY 8,800 LBS
TABLE SPEED, 2-RANGES 1-600 RPM
CUTTING FEED RATE 0.39-78.7 IPM
AUTOMATIC TOOL CHANGER 12 ATC
TOOL SHANK BT-50 7/24
Fanuc Oi-TD CNC Control
12-STATION AUTOMATIC TOOL CHANGER
39.37″ 4-JAW HYDRAULIC INDEPENDENT CHUCK
RAM W/ 12-POSITION AUTOMATIC TOOL CHANGER
CHIP CONVEYOR
MISC. TOOLING
60 HP TABLE DRIVE MOTOR
Discover the YOU JI 1000-ATC VTL Vertical CNC, a used 2009 model. Featuring a 39.37" table, 8,800-lb load capacity, 12-station ATC, and a 60 hp motor, this machine is equipped with a Fanuc Oi-TD CNC control and offers robust precision in heavy-duty tasks.
Imperial
| Table Dia | 39.37" |
| Table Load Capacity | 8,800 lb |
| Swing | 53.14" |
| Turning Height | 35.43" |
| Main Motor | 60 hp |
| Number of Ranges | 2 |
| X-Axis Travel | 20 |
| Z-Axis Travel | 31.49" |
| Automatic Tool Changer | 12 |
| Table Speed | 600 RPM |
| Chuck Size | 39.37 in |
| Main Spindle Turning Diameter Max: | 43.3 in |
| Control | CNC (FANUC Oi - TD) |
| Weight | 64,200 lbs. |
TABLE DIAMETER 39.37″
MAXIMUM SWING 53.14″
MAXIMUM CUTTING DIAMETER 43.30″
MAXIMUM CUTTING HEIGHT 35.43″
RAIL TRAVEL 20″
RAM STROKE, Z-AXIS 31.49″
TABLE WEIGHT CAPACITY 8,800 LBS
TABLE SPEED, 2-RANGES 1-600 RPM
CUTTING FEED RATE 0.39-78.7 IPM
AUTOMATIC TOOL CHANGER 12 ATC
TOOL SHANK BT-50 7/24
Fanuc Oi-TD CNC Control
12-STATION AUTOMATIC TOOL CHANGER
39.37″ 4-JAW HYDRAULIC INDEPENDENT CHUCK
RAM W/ 12-POSITION AUTOMATIC TOOL CHANGER
CHIP CONVEYOR
MISC. TOOLING
60 HP TABLE DRIVE MOTOR
