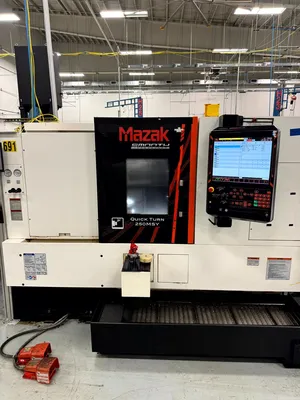

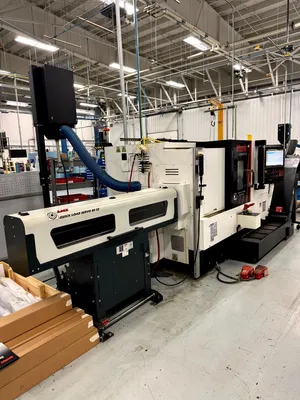

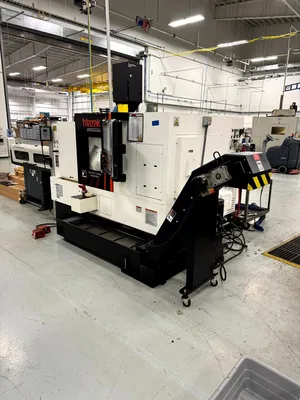

MAZAK QT 250MSY CNC TURNING & MILLING CENTER W/ Y-AXIS, LNS BAR FEED
Have one to sell?
ConditionUsed
1 available
THIS 2019 QT 250MSY COMES WITH A SMOOTH G CONTROL, LNS BARFEED, PARTS CATCHER, CHIP CONVEYOR, ATLM. AND 4 LIVE TOOLS
Swing Over Bed 26.5"
Turning Diameter 14.75"
Turning Length 21.275"
Chuck Size 1, 2 10", 6"
Spindle Nose 1, 2 A2-8, A2-5
Bar Capacity 1, 2 3"
Spindle Speeds 1, 2 4000, 6000 RPM
Spindle Horsepower 1, 2 35, 10 HP
X - Axis Travel X1, X2, X3 9"
Z - Axis Travel Z1, Z2, Z3 22.75"
Y - Axis Travel Y1, Y2, Y3 4" (+/- 2")
C - Axis Indexing 1, 2 .0001, .0001 Degree
W - Axis Travel Sub Spindle 23"
Rapid Traverse Rates X1, X2, X3 1181 IPM
Rapid Traverse Rates Z1, Z2, Z3 1299 IPM
Rapid Traverse Rates Y1, Y2, Y3 826 IPM
Turret Tool Positions 1, 2, 3 12
Turret Rotary Tool Speeds 1, 2, 3 4500 RPM
Turret Rotary Tool Horse Power 1, 2, 3 7.5 HP
Machine Weight 12,000 Lbs.

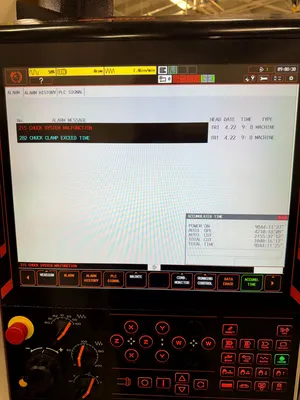

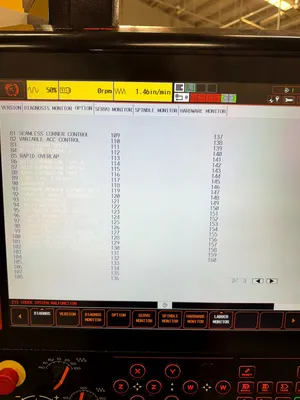

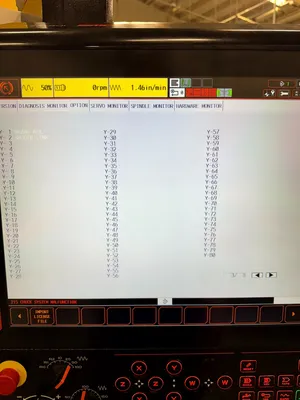

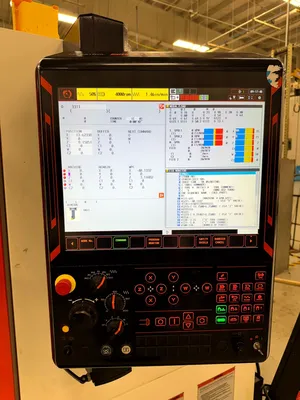

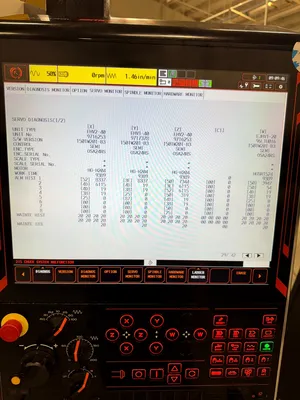

MAZATROL SHOOTHG CNC
WINDOWS 8 OPERATING SYSTEM FOR MAZAK MACHINE CONTROL.
19·· COLOR LCD (TOUCH SCREEN)
EIA/ ISO PACKAGE KY MILL T/C
SMOOTH STANDARD SOFTWARE FOR LATHE (MILL)
USB I/F (1-PORT)
LAN PORT
SD MEMORY I/F(l-PORT)+ USB I/F (1- PORT)
MILLING-SPINDLE SYNCHRONOUS TAPPING
ROTARY-TOOL SPINDLE SPEED 6000 RPM
C-AXIS 0.0001 DEGREE INCREMENT (1ST SPINDLE)
1ST SPINDLE MOTOR AC 26KW/35HP(30 MIN) 4,000 RPM(343 FT-LBS
1ST SPINDLE SPEED 4000 RPM
1ST SPINDLE BORE DIA.(3. 58") / A2-8 NOSE
AUTO CHUCK JAWS OPEN/CLOSE (1ST & 2ND SPINDLE)
CHUCK OPEN/CLOSE CONFIRMATION (1ST & 2ND SPINDLE)
KITAGAWA B-210A8 W/ S-1877 CYL. (3. 03" CAP.) (1ST SPINDLE (N/A HAS COLLET CHUCKS)
2ND SPINDLE C-AXIS .0001 DEG.
SECOND SPINDLE MOTOR (15HP)
SECOND SPINDLE SPEED 6000 RPH
2ND SPINDLE BORE DIA (2.05" ) / A2-5 NOSE
KITAGAWA B-206A5 W/ RNKP105-15 CLOSED CYLINDER (2ND SPINDLE) (N/A HAS COLLET CHUCKS)
CHUCK AIR BLAST (SECOND SPINDLE)
Y-AXIS CONTROL
ABSOLUTE POSITIONING SYSTEM
(N/A WITH SCALE FEEDBACK)
X, Y, Z PITCH ERROR COMPENSATION INPUT
TOOL EYE (AUTOMATIC)

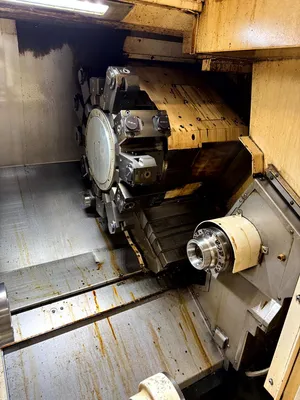

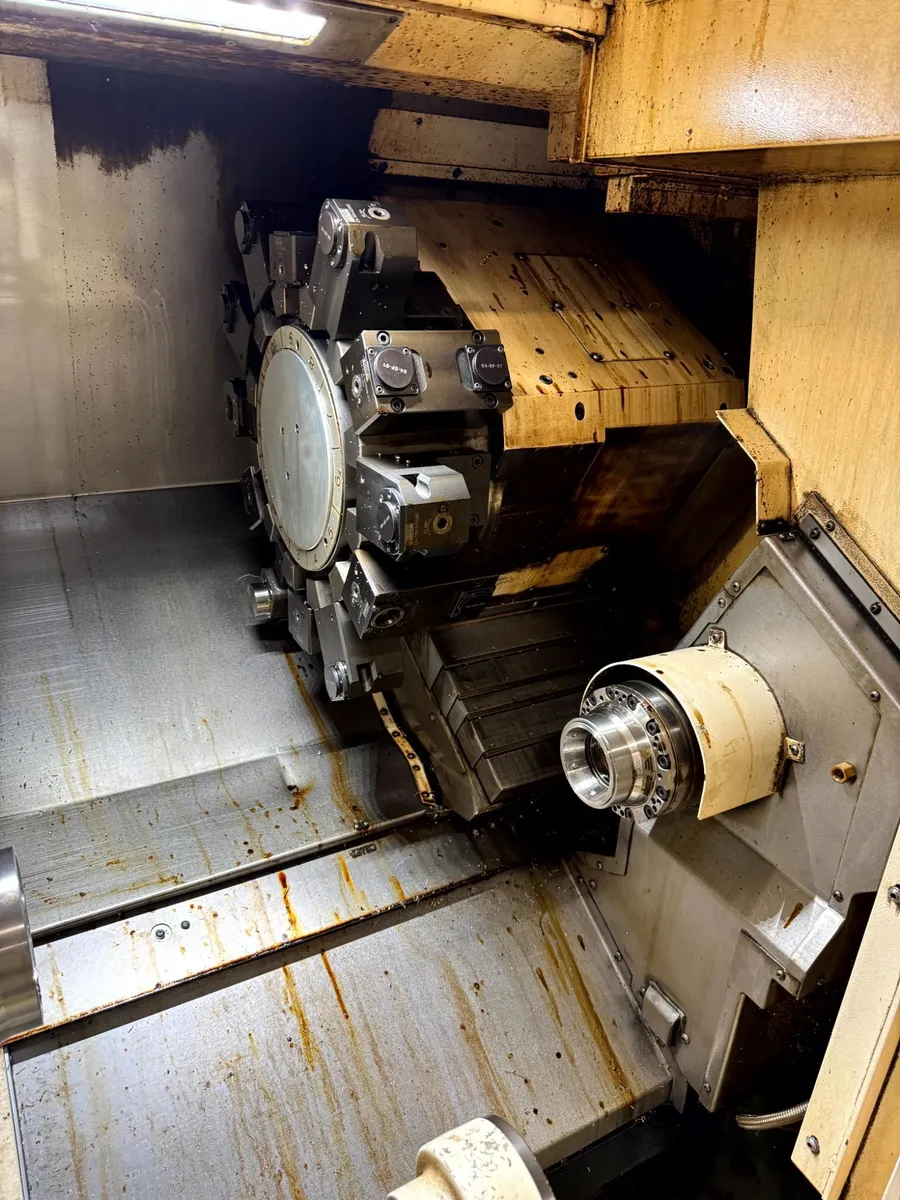

12 POSITION VDI TURRET
STANDARD TOOLING PACKAGE (VDI)
(25 FT-LBS/6,000 RPM)
ROLLER GUIDES
OPERATOR DOOR INTERLOCK WITH LOCK-SWITCH
HYDRAULIC PRESSURE INTERLOCK
INTELLIGENT SAFETY SHIELD (MANUAL OPERATION)
$3700.00 213 PSI HIGH-POWER COOLANT
$5,100 AUTOMATIC PARTS CATCHER (DIA. 3·· X 4.7'' X 5.5 LBS)
$2,400.00 TURRET AIR BLAST
$2,000.00 DUCT MIST COLLECTOR PREP
$6,800.00 CHIP CONVEYOR SIDE 20'' (500U) (HINGE TYPE)
$780.00 SMOOTH ENGRAVING FUNCTION
$990.00 SIGNAL TOWER
(3 COLOR LIGHTS, SQUARE)
BAR FEEDER INTERFACE KIT

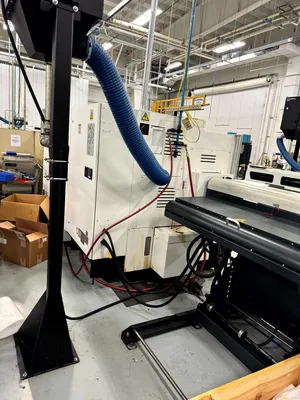

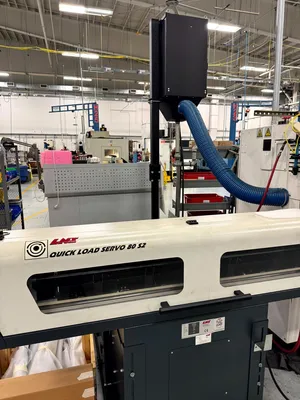

$24,500 LNS QUICK LOAD SERVO 80-S2 BAR FEED (CUSTOMER RETAINS)
BAR-FEEDER LOAD TYPE SHOULD BE REAR LOAD.
$2800.00 240V TO 480V MAIN BREAKER
FIELD CONVERSION KIT

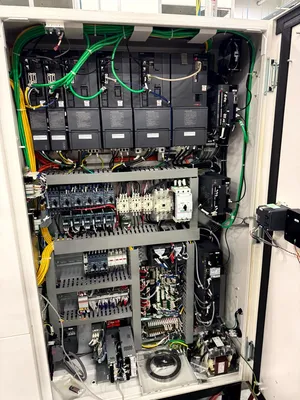

ELECTRICAL CONTROL BOX UL STANDARD(240V)
MULTITAP TRANSFORMER
RELOCATION DEVICE
DIGITAL DOCUMENTATION
MANUAL SET CD-ROM
FOUNDATION KIT(PLATES)
(2) I.D. ROTARY HEADS
(2) O.D. ROTARY HEADS
(4) STATIC O. D. DBL HOLDER
FULL COMPLIMENT OF STATIC TOOL HOLDERS
ROYAL CB 80 NX COLLET SYSTEM ON MAIN SPINDLE
ROYAL COLLET SYSTEM ON SUB SPINDLE
MIST COLLECT & ROYAL ROTO RACK ( NOT INCLUDED)
