MAZAK QTS 350M WITH MILLING

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Document (1)

QTS 350M SN 273351.docx

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTS 350M
Condition:
Good
Year:
2016
Stock #:
211012
Status:
For Sale

Description

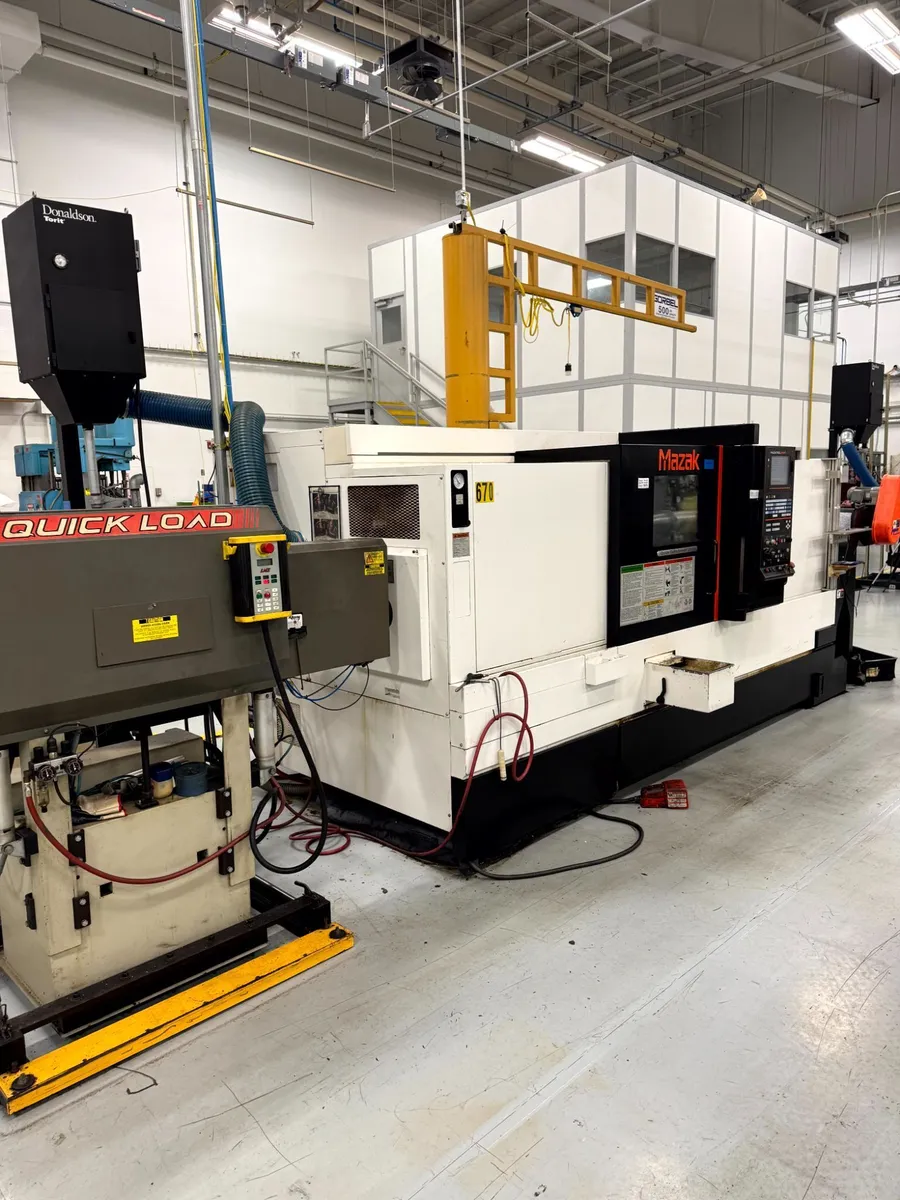

2016 MAZAK QTS 350M with milling, used CNC lathe multi-axis. Features include a 28.35" maximum swing, 16.5" max turning diameter, 4.4" spindle bore, and a 12" hydraulic chuck. Equipped with MAZATROL SMART CONTROL, mist collector, 213 PSI high-pressure coolant, and LNS Quick Load Barfeeder

Maximum Swing28.35"720.09 mm
Max Turning Diameter16.5"419.1 mm
Main Spindle Bore/Max Bar Capacity4.4"/ 4"4.4"/ 4"
Tail Stock/Sub SpindleTAILSTOCKTAILSTOCK
Maximum Cutting Length48.67"1,236.2 mm
X-Axis Travel (X1, X2, X3)10.38"10.38"
Z-Axis Travel (Z1, Z2, Z3)53.1353.13
Main Spindle Chuck Size12"304.8 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter4.4"111.76 mm
Main Spindle Maximum Bar Work4"101.6 mm
Main Spindle Speed3,300 RPM3,300 RPM
Main Spindle Horsepower (CONT. /30 MINS)4040
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 240004000
Turret Rotary Tool Horse Power 1, 21010
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
High Pressure Coolant System (PSI)213213
ControlCNCCNC
Weight15,218 lbs15,218 lbs

MAZATROL SMART CONTROL
12″ HYD. 3-JAW CHUCK W/ 4.0″ HOLE
AUTO PART CATCHER
MIST COLLECTOR
HIGH PRESSURE COOLANT - 213 PSI
AUTOMATIC CHUCK JAW OPEN/CLOSE
LAN PORT
MT CONNECT
INCH/METRIC CONVERSION
EIA/ISO CONVERSION
REMOVE SPINDLE CHUCK
PROGRAMMING SOFTWARE
HAINBUCH COLLET/CHUCK WORK HOLDING SYSTEM
BAR FEEDER INTERFACE
LNS BAR FEEDER
CHIP CONVEYOR
