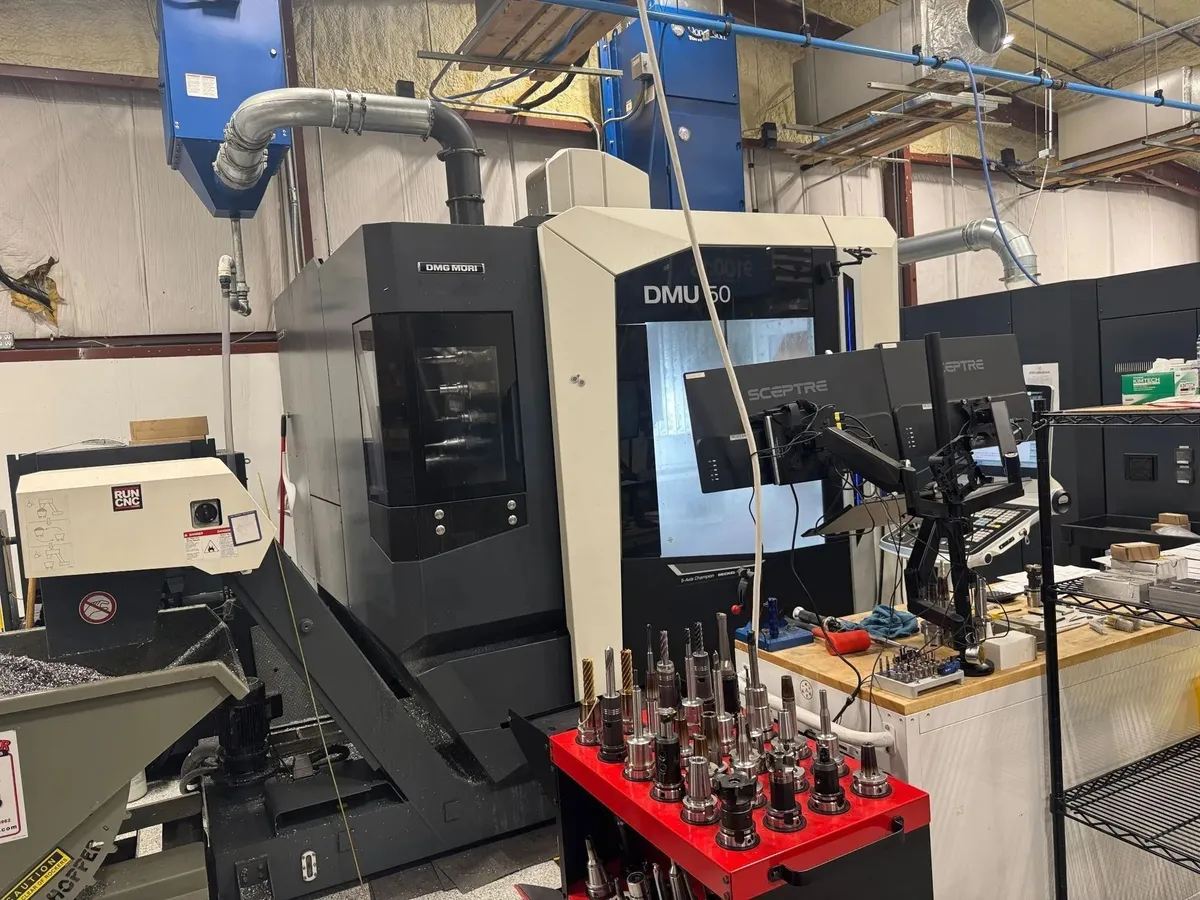

2021 DMG Mori DMU 50 Gen III Vertical 5-Axis Machining Center

2021 DMG Mori DMU 50 Gen III Vertical 5-Axis Machining Center

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
DMG MORI
Model:
DMU 50 GEN III
Condition:
Excellent
Year:
2021
Stock #:
211021
Status:
For Sale

Description

Discover precision with the 2021 DMG Mori DMU 50 Gen III 5-Axis Vertical Machining Center. Used but powerful with a 20000 rpm spindle, 32-tool ATC, and a robust 28 hp motor. Enhanced with CELOS control, chip conveyor, and laser tool measuring.

X Travel25.6"650.24 mm
Y Travel20.47"519.94 mm
Z Travel18.7"474.98 mm
Spindle Speed20000 rpm20,000 RPM
Tool Capacity (ATC)3232
Table Size (W)24.8"629.92 mm
Table Size (L)19.6"497.84 mm
Main Spindle Motor28 hp
Spindle TaperHSK 63HSK 63
Spindle Nose To Table Top5.9” - 24.6”5.9” - 24.6”

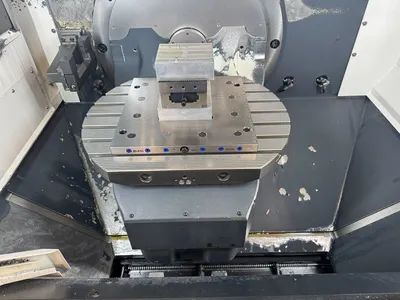

Table Type A-Axis Trunnion Tilt Range-5+100 DEG-5+100 DEG
Part ProbeYesYes
Tool Probe/Auto Tool Length MeasurementYesYes
B-AXIS (Table Swivel)3511035110
Rapid Traverse Rates: X Axis Y Axis Z Axis1654 IPM/ 1654 IPM/ 1654 IPM1654 IPM/ 1654 IPM/ 1654 IPM
Chip ConveyorYESYES
ControlCNC (SIEMENS 840D ERGOLINE)CNC (SIEMENS 840D ERGOLINE)
Weight16,500 lbs16,500 lbs

MAX TABLE LOAD 660 LBS
TOOL DIAMETER 3.14”-5.11”
TOOL LENGTH 11.8”
TOOL WEIGHT 13.2 LBS
MAX WORKPIECE HEIGHT 11.8”

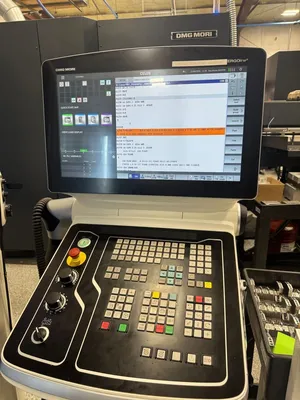

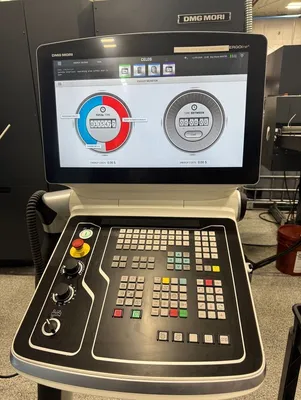

CELOS WITH SIEMENS 840D SLIMLINE CNC CONTROL
CHIP CONVEYER
3D QUICKSET
SWARF CONVEYER
40 BAR INTERNAL COOLANT SUPPLY
LASER TOOL MEASURING
INFARED MEASURING PROBE PP60 OPTICAL
