2015 MATSUURA CUBLEX 35 PC32

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
MATSUURA
Model:
CUBLEX 35 PC32
Condition:
Very Good
Year:
2015
Stock #:
211025
Status:
For Sale

Description

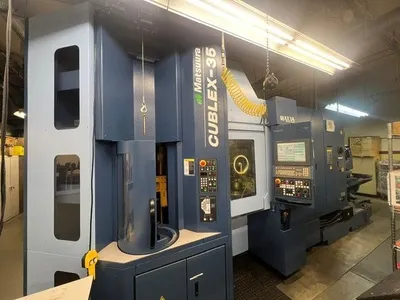

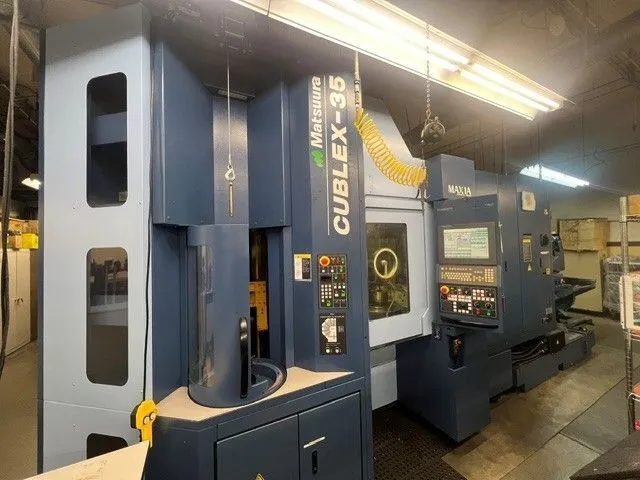

2015 Matsuura CUBLEX-35 5-Axis Multi Tasking Machining Center s/n 19798 w/ Matsuura G-Tech 31i Controls, Hand Wheel, 520-Station Tool Chager, HSK63 Spindle Tooling, 20,000 RPM Spindle, P-32 Tower Pallet System with Load/Unload Station and Pallets, Laser Tool Setting and Breakage Detection, +65 Degree to -125 Degree B-Axis, 360 Degree C-Axis, Programmable Tailstock, 3000 RPM on C-AxisCooljet Coolant System, Chip Augers, Coolant (SOLD AS-IS - NO WARRANTY)

X Travel21.65"549.91 mm
Y Travel17.32"439.93 mm
Z Travel22.83"579.88 mm
Spindle Speed20000 rpm20,000 RPM
Tool Capacity (ATC)520520
Main Spindle Motor25 hp
Spindle TaperHSK 63HSK 63
Table Type A-Axis Trunnion Tilt Range-125° to +65°-125° to +65°
Table Type C-Axis Table Rotation1 Degree Index1 Degree Index
Coolant ThruYesYes
Tool Probe/Auto Tool Length MeasurementYesYes
Multiple PalletsYesYes
Palletech System Number of Pallets3232
B-Axis (Table Swivel)+65 Degree to -125 Degree+65 Degree to -125 Degree
Rapid Traverse Rates2362 ipm
ControlCNC (Matsuura G-Tech 31i)CNC (Matsuura G-Tech 31i)

Max Workpiece Size: Ø 13.77 in × H 12.40 in
Max Loading Capacity: 132 lbs
C-Axis Travel (Rotation): 360° continuous
Turning Spindle Speed (C-Axis): Up to 3,000 RPM via a Direct Drive (DD) motor
for high-speed chuck rotation.
Horsepower 20 HP continuous / 25 HP peak
Max Workpiece Size: Ø 13.77 in × H 12.40 in
Max Loading Capacity: 132 lbs
Pallet System: 32 pallets (Tower Pallet System)

MATSUURA G-TECH 31I CONTROLS
HAND WHEEL
520-STATION TOOL CHANGER
HSK63 SPINDLE TOOLING
20,000 RPM SPINDLE

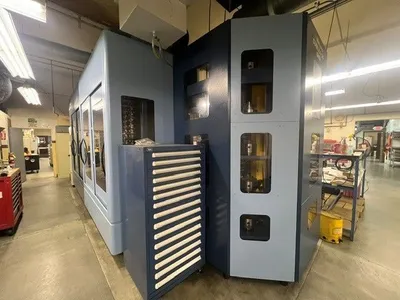

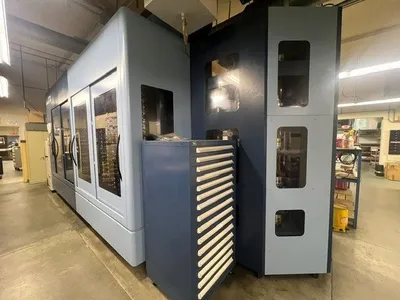

P-32 TOWER PALLET SYSTEM WITH LOAD/UNLOAD STATION AND PALLETS
LASER TOOL SETTING AND BREAKAGE DETECTION, +65 DEGREE TO -125 DEGREE B-AXIS, 360 DEGREE C-AXIS,
PROGRAMMABLE TAILSTOCK
3000 RPM ON C-AXIS
COOLJET COOLANT SYSTEM
CHIP AUGERS

(SOLD AS-IS - NO WARRANTY)
