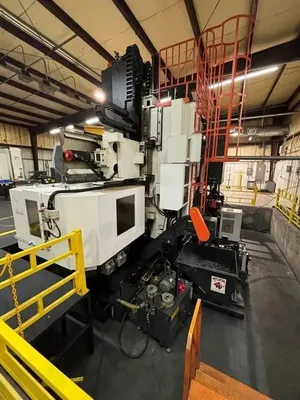

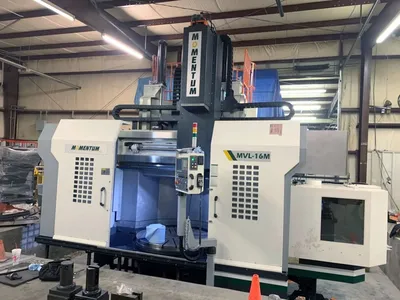

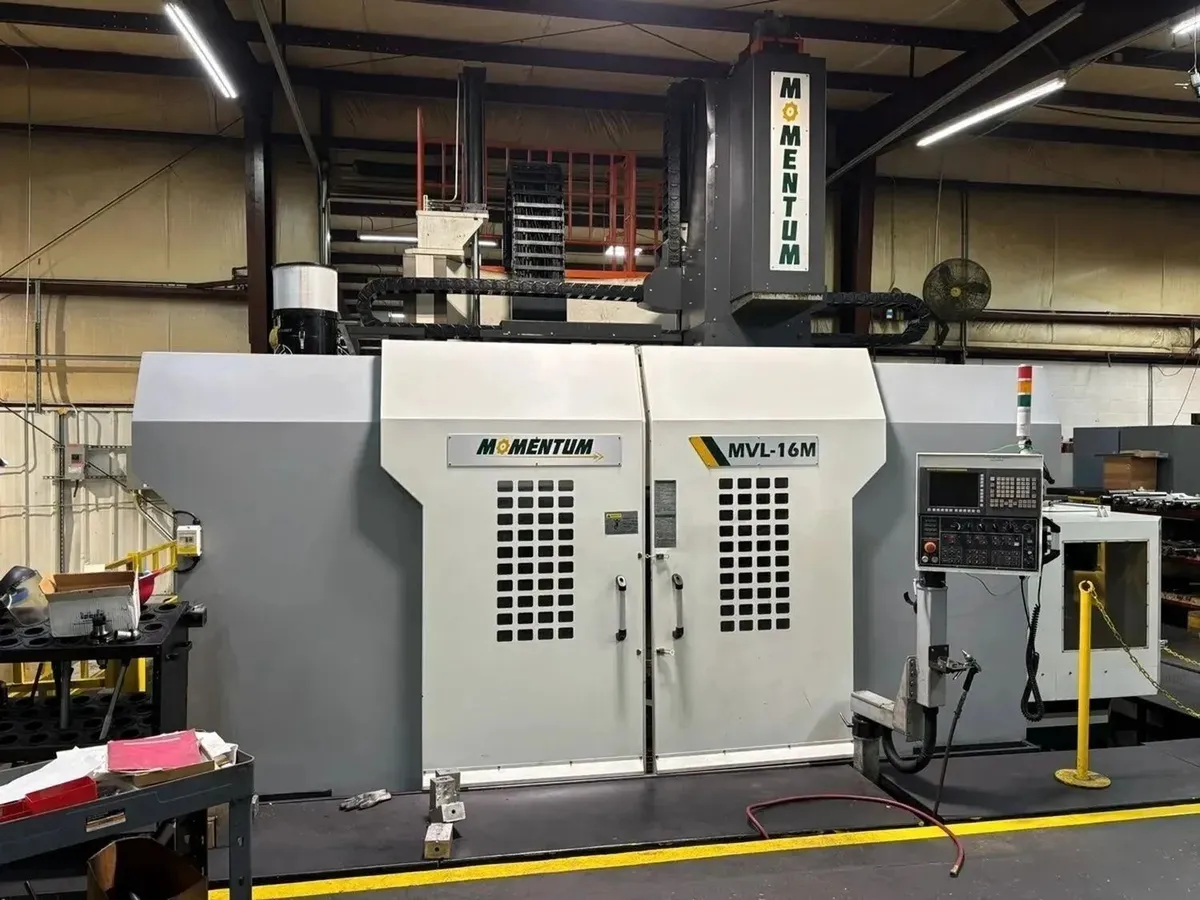

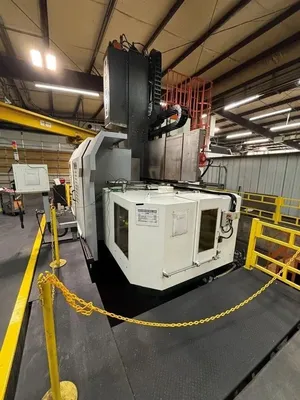

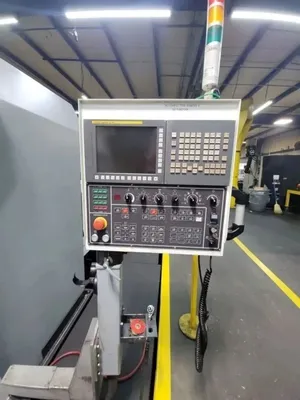

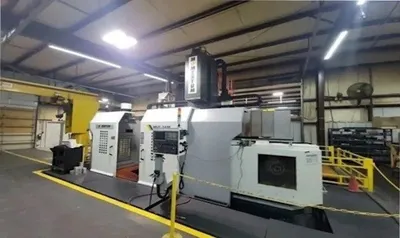

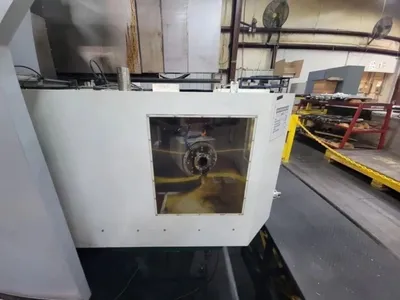

2021 MOMENTUM MVL-16M

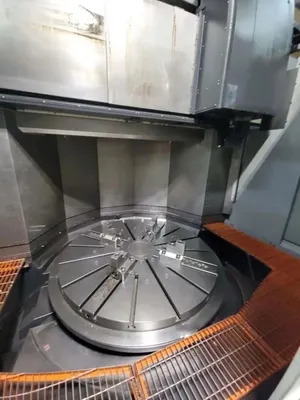

TABLE DIAMETER T-SLOTTED................................62.99"
MAX. TABLE WEIGHT.......................................22,046 LBS.
MAX. TABLE TORQUE.......................................17,701
BORING MILL JAWS........................................4
MAXIMUM TURNING DIAMETER................................78.74"
MAXIMUM HEIGHT UNDER RAM FACE...........................70.08"
MAXIMUM CUTTING HEIGHT..................................63.18"
TABLE SPEEDS LOW / HIGH RANGE...........................65 TO 280 RPM
MILLING SPINDLE SPEEDS..................................486-3000 RPM
MILLING SPINDLE TAPER...................................#50
MAX MILLING SPINDLE TORQUE..............................604
RAM DIAMETER............................................10"X10"
RAM VERTICAL TRAVEL Z AXIS..............................39.37"
RAM HORIZONTAL TRAVEL...................................45.87"
RAIL TRAVEL.............................................35.43"
FEED RATE...............................................0.039 TO 78.4 IPM
RAPID TRAVERSE..........................................393 IPM
FLOOR SPACE.............................................R-L 161" X F-B 204"
MACHINE HEIGHT..........................................213.78"
MACHINE WEIGHT..........................................82,000 LBS.
MAIN MOTOR..............................................73.7 / 60.3 HP / 60 HP T220/3/60
X AND Z AXIS SERVO MOTORS...............................9.4 WITH 3:1 REDUCTION
MILLING SPINDLE HORSEPOWER..............................29.5
CF AXIS MOTOR...........................................9.4 WITH 360:1 REDUCTION
REQUIRED ELECTRICAL POWER...............................3-PH 460V ±10%; 60HZ ±1%
MAIN BREAKER SIZE.......................................175 AMP, 139 KVA @ 460V
CTS / FLOOD / BED WASH PUMPS BAR [PSI], L/MIN...........87 AND 100
TANK VOLUME LITERS GALLONS...............................157
TANK FILTRATION, BASKET / SECONDARY......................0.040/0.024
