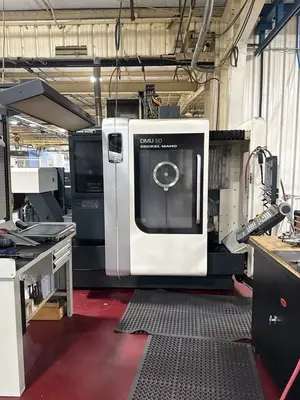

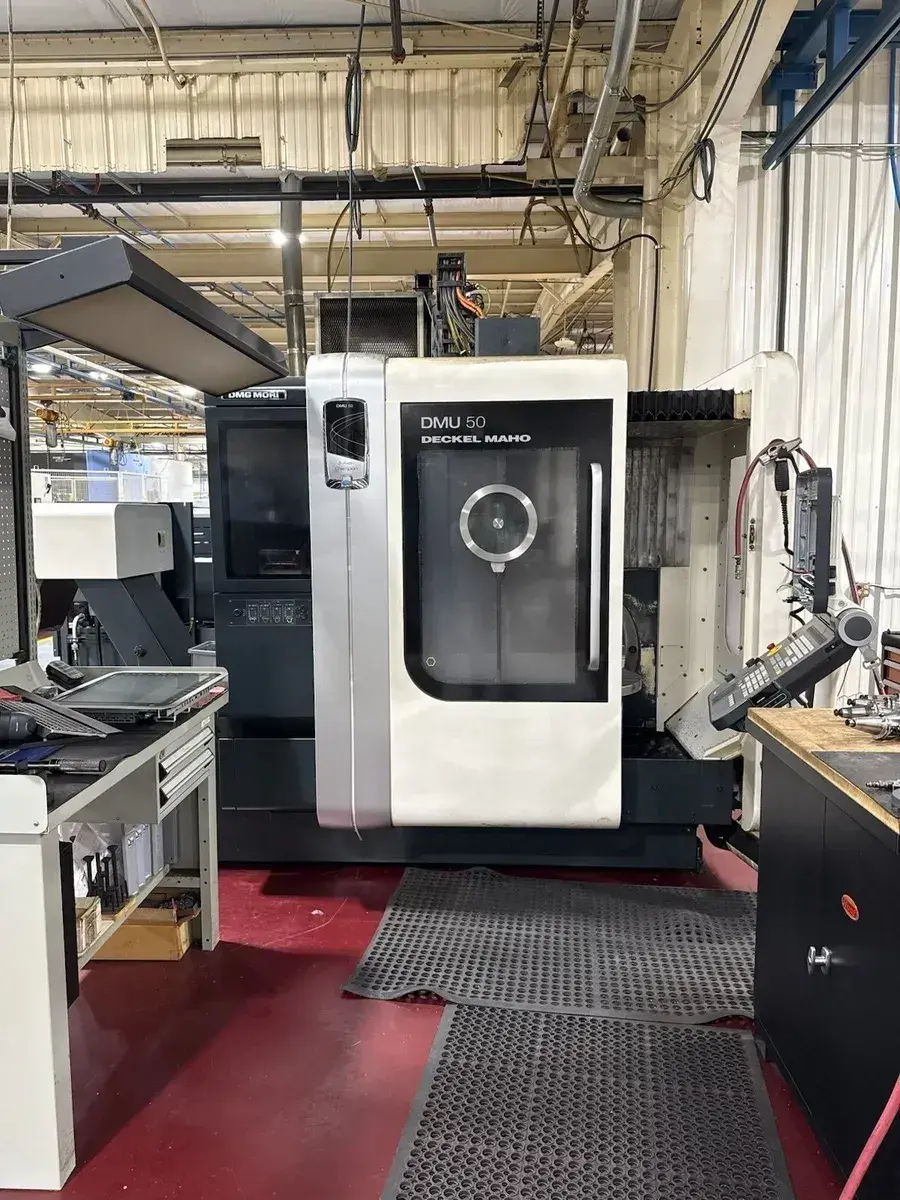

2014 DMG MORI DMU 50 5-AXIS CNC VERTICAL MACHINING CENTER - 18,000 RPM MILL

2014 DMG MORI DMU 50 5-AXIS CNC VERTICAL MACHINING CENTER - 18,000 RPM MILL

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, VERTICAL
Manufacturer:
DMG MORI
Model:
DMU 50 GEN II
Condition:
Very Good
Year:
2014
Stock #:
211035
Status:
For Sale

Description

Optimize productivity with the 2014 DMG MORI DMU 50 Gen II 5-Axis CNC Vertical Machining Center. Features include a high-speed spindle at 18,000 rpm, Siemens CNC control, and a 46 HP motor. 30-tool capacity and versatile table support complex machining tasks.

X Travel19.7"500.38 mm
Y Travel17.7"449.58 mm
Z Travel15.7"398.78 mm

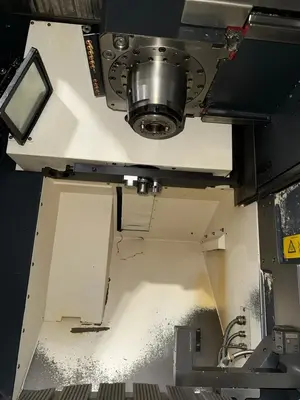

Spindle Speed18000 rpm18,000 RPM
Tool Capacity (ATC)3030
Table Size (W)19.7"500.38 mm
Table Size (L)24.6"624.84 mm
Main Spindle Motor46 hp
Spindle TaperHSK 63HSK 63

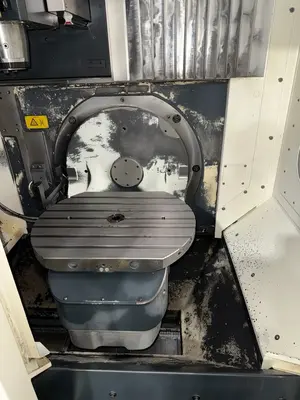

Table Type A-Axis Trunnion Tilt Range-5 / +110°-5 / +110°
Table Type C-Axis Table Rotation1 Degree Index1 Degree Index
B-Axis (Table Swivel)-35° +110° ( Table Tilt )-35° +110° ( Table Tilt )
Rapid Traverse Rates: X Axis Y Axis Z Axis945 IPM945 IPM
ControlCNC (SIEMENS)CNC (SIEMENS)
Dimensions216.5″ x 135″ x 106″ High Approx.216.5″ x 135″ x 106″ High Approx.
Weight10,604 LBS10,604 LBS

Max Weight on Table: 661 lbs
Max Tool Size: 3.14″ X 11.81″
Max Tool Weight: 17.63 lbs.
Air Required: 80 psi, 4 scfm
Power: 400 v / 60 hz / 34 kva
Electrics: 440/400/3/60

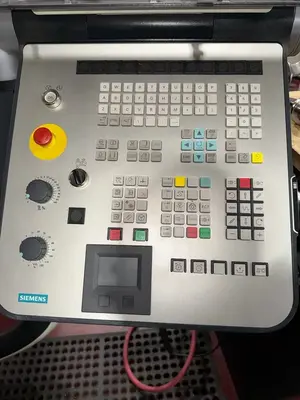

SIEMENS CNC CONTROL
HIGH PRESSURE COOLANT THROUGH SPINDLE
CHIP CONVEYOR
