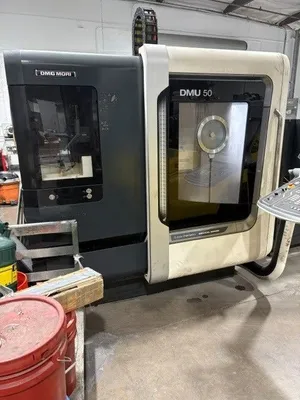

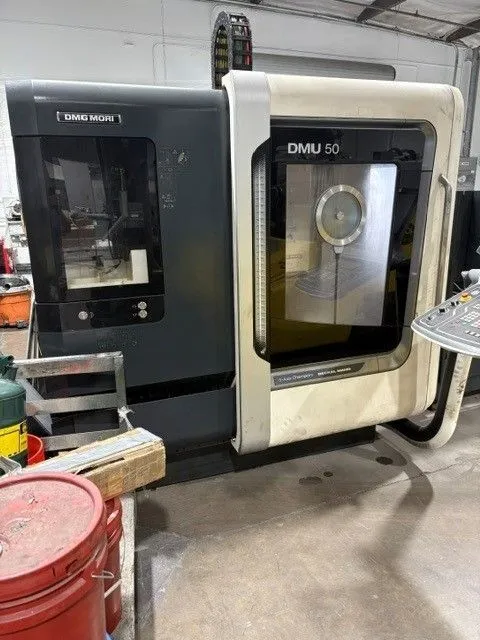

2015 DMG MORI DMU 50 5-AXIS CNC VERTICAL MACHINING CENTER - 18,000 RPM MILL
Have one to sell?
ConditionUsed
1 available
2015 DMG MORI DMU 50 GEN II, full 5-axis CNC vertical machining center with 18,000 RPM spindle, 60-tool ATC, and CELOS Siemens control. Features include through-spindle coolant and a trunnion table. Max table load: 661 lbs.; CAT 40 spindle.
Max Weight on Table: 661 lbs
Max Tool Size: 3.14″ X 11.81″
Max Tool Weight: 17.63 lbs.
Air Required: 80 psi, 4 scfm
Power: 400 v / 60 hz / 34 kva
CELOS SIEMENS 840CONTROL
PROBE
CHIP CONVEYOR

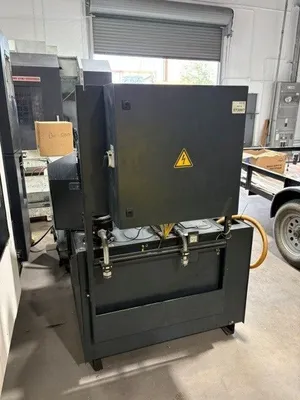

TRANSFORMER
CAT 40
**GERMAN MADE MACHINE**
2015 DMG MORI DMU 50 GEN II, full 5-axis CNC vertical machining center with 18,000 RPM spindle, 60-tool ATC, and CELOS Siemens control. Features include through-spindle coolant and a trunnion table. Max table load: 661 lbs.; CAT 40 spindle.
Imperial
| X Travel | 19.7" |
| Y Travel | 17.7" |
| Z Travel | 15.7" |
| Spindle Speed | 18000 rpm |
| Tool Capacity (ATC) | 60 |
| Table Size (W) | 19.7" |
| Table Size (L) | 24.6" |
| Main Spindle Motor | 20 hp |
| Spindle Taper | CAT 40 |
| Table Type C-Axis Table Rotation | .001 N/C Contouring 360000 Degrees |
| Tool Probe/Auto Tool Length Measurement | Yes |

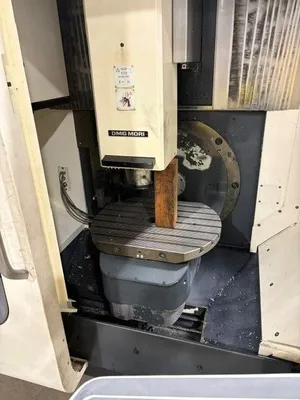

| B-Axis (Table Swivel) | -35° +110° ( Table Tilt ) |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 945 IPM |

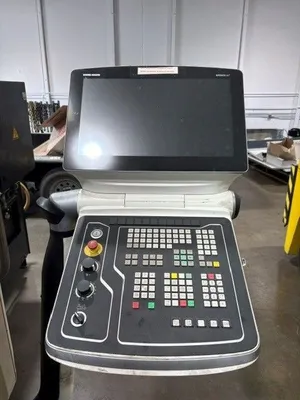

| Control | CNC (CELOS with Siemens 840D SLIMline CNC Control) |
| Dimensions | 216.5″ x 135″ x 106″ High Approx. |
| Weight | 10,604 LBS |
Max Weight on Table: 661 lbs
Max Tool Size: 3.14″ X 11.81″
Max Tool Weight: 17.63 lbs.
Air Required: 80 psi, 4 scfm
Power: 400 v / 60 hz / 34 kva
CELOS SIEMENS 840CONTROL
PROBE
CHIP CONVEYOR
TRANSFORMER
CAT 40
**GERMAN MADE MACHINE**
