2017 DMG Mori NLX-2500SY
Have one to sell?
ConditionUsed
1 available
$188,000.00 USD

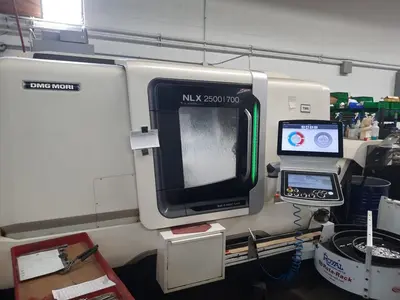

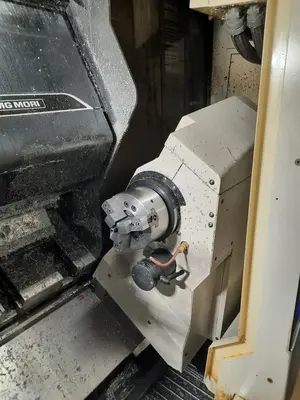

DMG Mori NLX-2500SY (2017) CNC Lathe with 10" & 6" chucks, parts catcher and chip conveyor.
This pre-owned DMG Mori CNC lathe is available to be seen under power for an inspection.
Chuck Size
10"
Bar Capacity
3.15"
Swing
36.2"
Turning Diameter
14.41"
Spindle Speed
4,000 RPM
Control

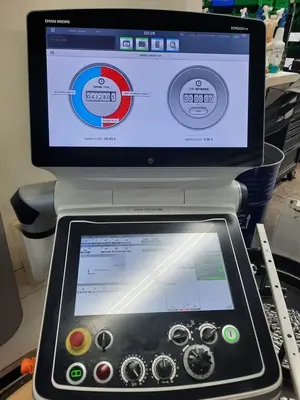

M730UM Celos-Ergoline Touch
Distance Between Centers
28.9"

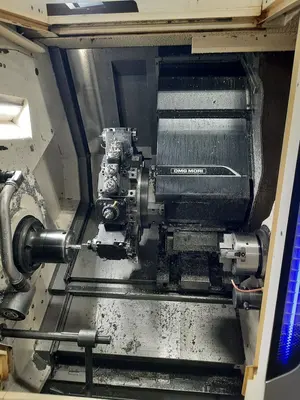

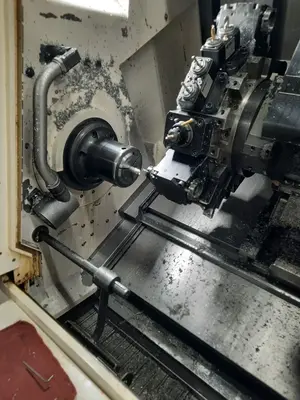

Turret
12 Station
Live Tooling

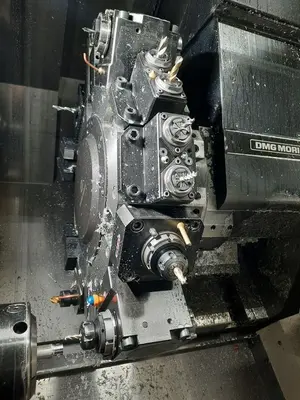

C-Axis Live Tooling, Y-Axis
Chip Removal
Chip Conveyor
Sub-Spindle
6" Chuck
EQUIPPED WITH:

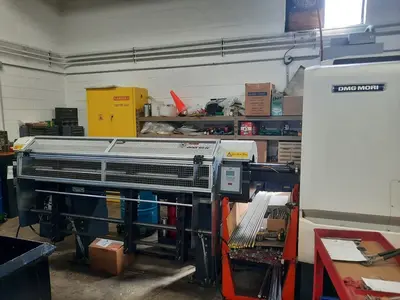

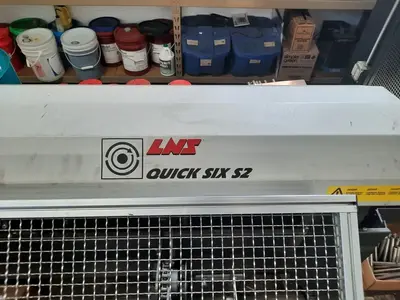

LNS Quick 6 Bar Feed
Trusty Cook Spindle Liners

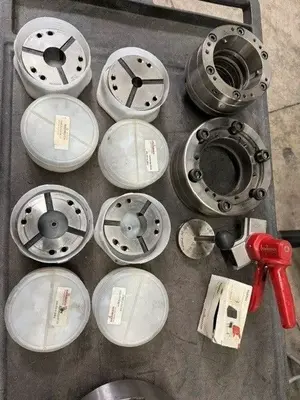

Chucks for Main & Sub Spindles
Vibration Cutting Control (VCC)
***Chucks featured ON the Machine are NOT Included***
***Mist Collector NOT Included***
DMG Mori NLX-2500SY (2017) CNC Lathe with 10" & 6" chucks, parts catcher and chip conveyor.
This pre-owned DMG Mori CNC lathe is available to be seen under power for an inspection.
Imperial
| Maximum Swing | 36.229" |
| Max Turning Diameter | 14.01" |
| Main Spindle Bore/Max Bar Capacity | 3.58"/3.1" |
| Maximum Swing Over Cross Slide | 29.72" |
| Distance Between Centers | 28.7" |
| Maximum Cutting Length | 27.75" |
| X-Axis Travel (X1, X2, X3) | 10.24" |
| Z-Axis Travel (Z1, Z2, Z3) | 31.3" |
| Y-Axis Travel (Y1, Y2, Y3) | 3.9" +/- 2" |
| C-Axis Indexing (1, 2) | 0.001 |
| W-Axis Travel Sub Spindle | 50.6 in |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.58" |
| Main Spindle Maximum Bar Work | 3.1" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 25 / 22 HP |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 1.7" |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 / 10 HP |
| Main & Sub Spindle Synchronization | Yes |
| Number of Turrets | 1 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 394 |
| Rapid Traverse, Z-Axis | 1181 |
| Control | CNC |
| Dimensions | 174" X 93" X 87" |
| Weight | 17,500 LBS |
Chuck Size
10"
Bar Capacity
3.15"
Swing
36.2"
Turning Diameter
14.41"
Spindle Speed
4,000 RPM
Control
M730UM Celos-Ergoline Touch
Distance Between Centers
28.9"
Turret
12 Station
Live Tooling
C-Axis Live Tooling, Y-Axis
Chip Removal
Chip Conveyor
Sub-Spindle
6" Chuck
EQUIPPED WITH:
LNS Quick 6 Bar Feed
Trusty Cook Spindle Liners
Chucks for Main & Sub Spindles
Vibration Cutting Control (VCC)
***Chucks featured ON the Machine are NOT Included***
***Mist Collector NOT Included***
