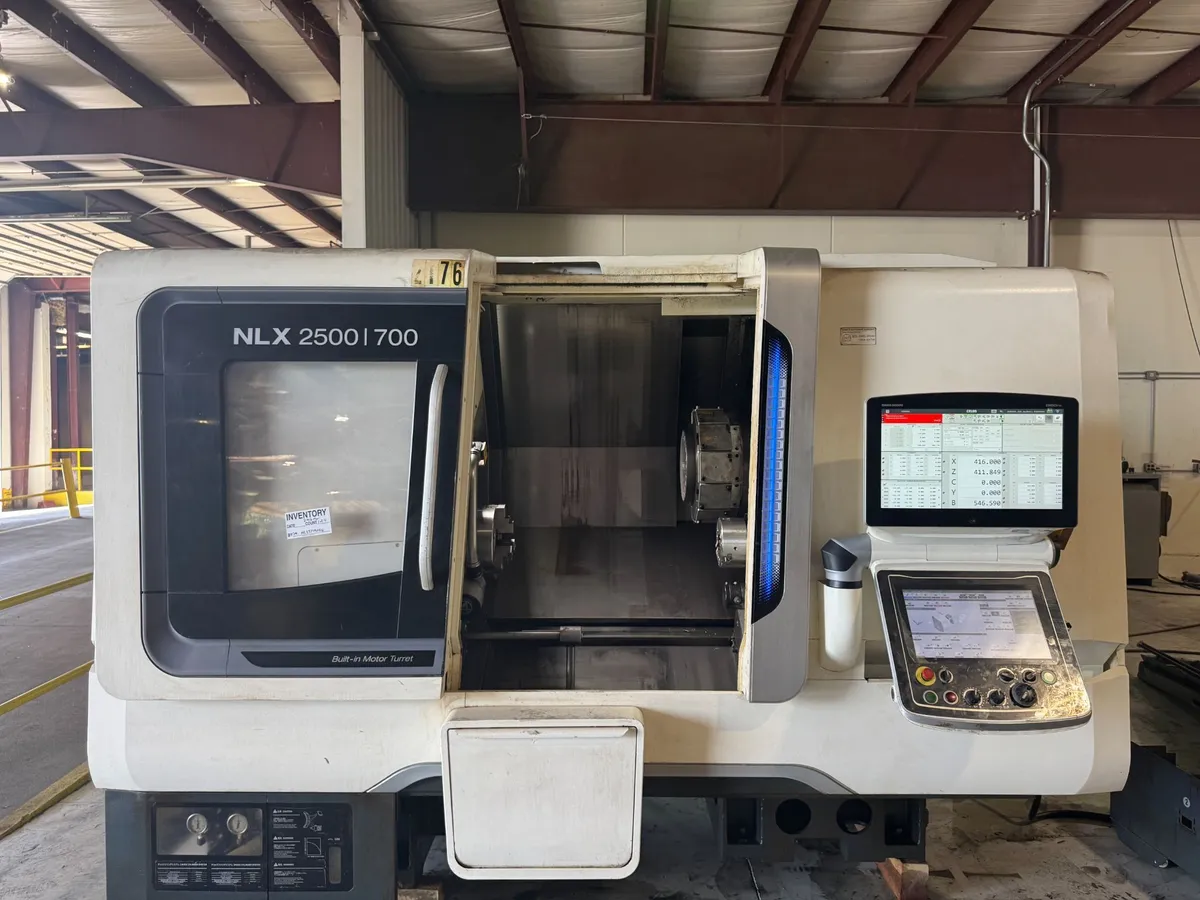

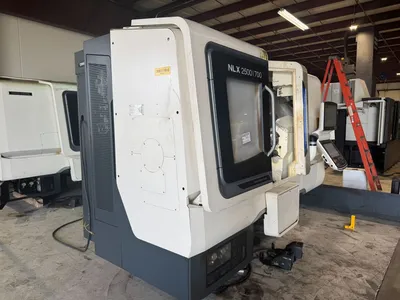

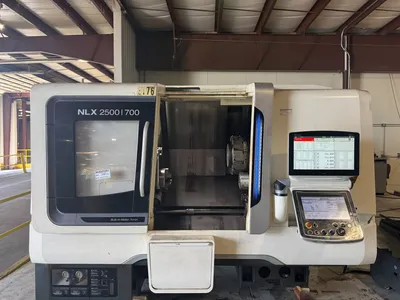

2019 DMG Mori NLX-2500SY - SUBSPINDLE - CHIP CONVEYOR
Have one to sell?
ConditionUsed
1 available
2019 DMG MORI NLX 2500/700 CNC turning center offering high-rigidity precision turning, approximately 18″ max turning diameter, 28″ turning length, 10″ chuck capability, powerful spindle performance, and production-ready features ideal for job shops, aerospace, automotive, and general machining applications.

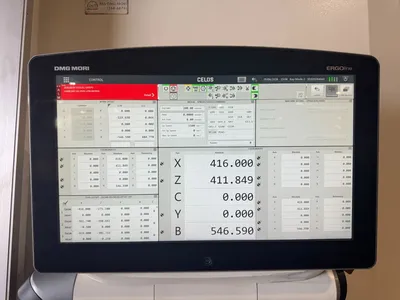

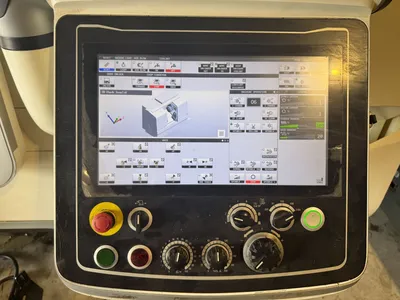

DMG Mori M730UM with Celos

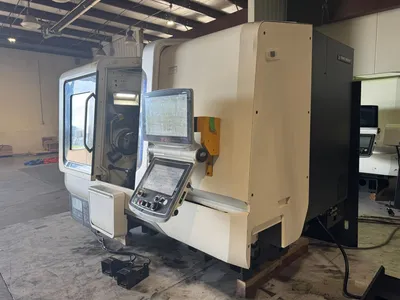

ERGO-line Touch Control

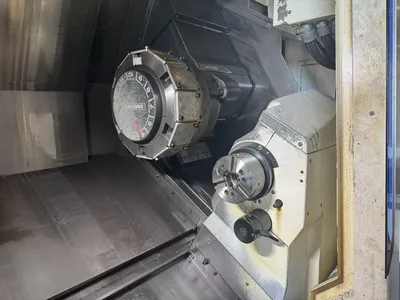

SUB-SPINDLE

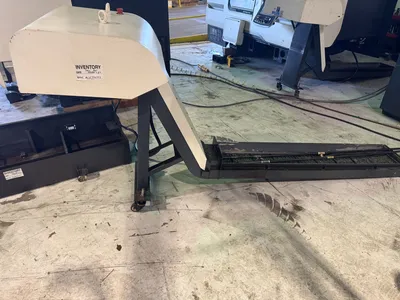

CHIP CONVEYOR
2019 DMG MORI NLX 2500/700 CNC turning center offering high-rigidity precision turning, approximately 18″ max turning diameter, 28″ turning length, 10″ chuck capability, powerful spindle performance, and production-ready features ideal for job shops, aerospace, automotive, and general machining applications.
Imperial
| Maximum Swing | 36.229" |
| Max Turning Diameter | 18.1" |
| Main Spindle Bore/Max Bar Capacity | 3.58"/3.1" |
| Tail Stock/Sub Spindle | SUB SPINDLE |
| Maximum Swing Over Cross Slide | 23.2" |
| Maximum Cutting Length | 27.75" |
| X-Axis Travel (X1, X2, X3) | 10.24" |
| Z-Axis Travel (Z1, Z2, Z3) | 31.3" |
| Y-Axis Travel (Y1, Y2, Y3) | 3.9" +/- 2" |
| C-Axis Indexing (1, 2) | 0.001 |

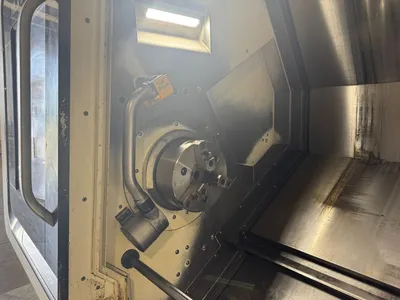

| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.58" |
| Main Spindle Maximum Bar Work | 3.1" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 25 / 22 HP |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 1.7" |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 / 10 HP |
| Main & Sub Spindle Synchronization | Yes |
| Number of Turrets | 1 |
| Turret Tool Positions 1, 2 | 12 |
| Bar Feed | No |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 394 |
| Rapid Traverse, Z-Axis | 1181 |
| Control | CNC (DMG MORI CELOS) |
| Dimensions | 174" X 93" X 87" |
| Weight | 17,500 LBS |
DMG Mori M730UM with Celos
ERGO-line Touch Control
SUB-SPINDLE
CHIP CONVEYOR
