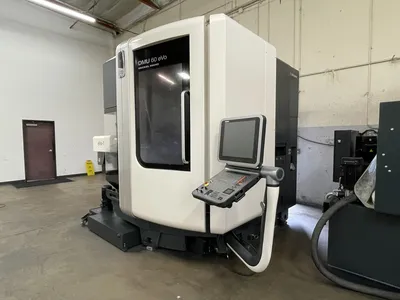

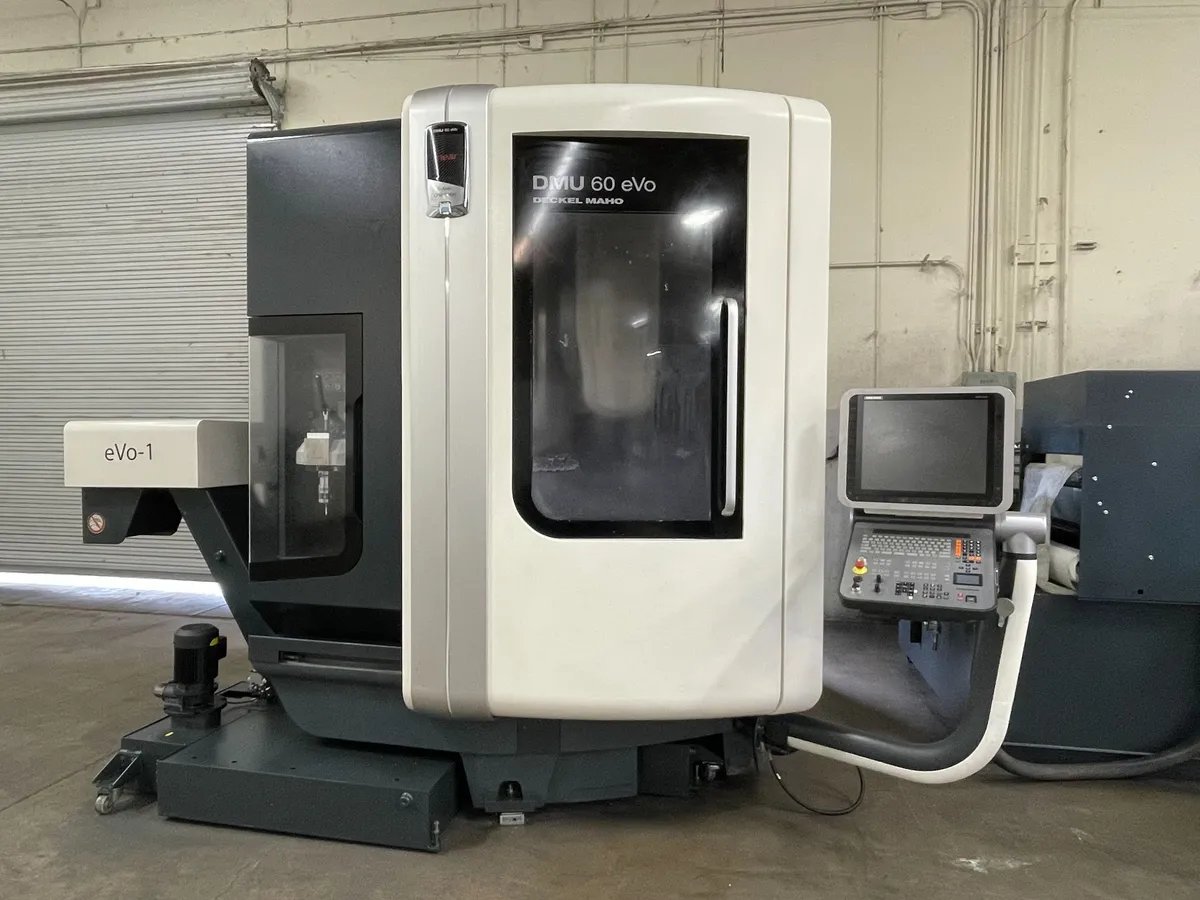

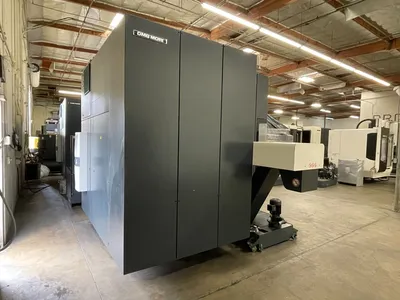

DMG MORI DMU 60 EVO LINEAR 5-AXIS - EXTREMELY NICE
Have one to sell?
ConditionUsed
1 available
$139,500.00 USD
2014 DMG MORI DMU 60 EVO LINEAR 5-Axis vertical machining center. Features X/Y/Z travel: 23.6"/19.7"/19.7", 18,000 RPM spindle, 60-tool capacity, HSK 63 taper, and full 5-axis contouring. Equipped with coolant through, part and tool probes. Used condition.
Travels (X/Y/Z/B/C) 23.6”x19.7”/19.7”/-5 to +110/360 Degree
Max Spindle RPM 18,000
Taper HSK-63
Tool Storage Capacity 60
Max Workpiece Size 23.62”x 19.69”
Table Loading Capacity 881.8 LBS
Spindle Drive Motor 46.94/33.53 HP
Torque (40/100% DC) ft/lbs 95.9/64.2
Rapid Traverse X/Y/Z 3,149” IPM
Table Max Rotational Speed B/C 2,362.2” IPM
Spindle Nose Distance to Table 4.9”-24.6”
Max Table Turning Speed 1,200 RPM

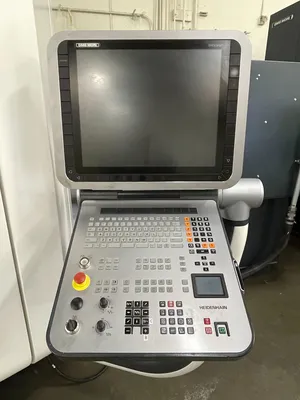

Heidenhain iTNC 530 Control
Linear Motor Drive Option
Renishaw Probing

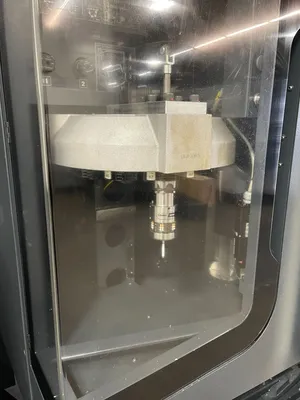

Blum Laser Tool Measuring
Through Spindle Coolant

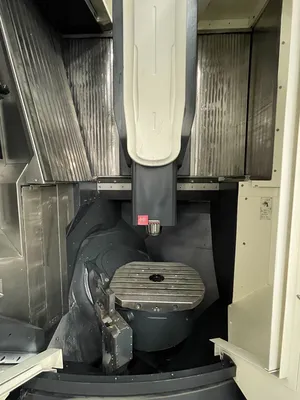

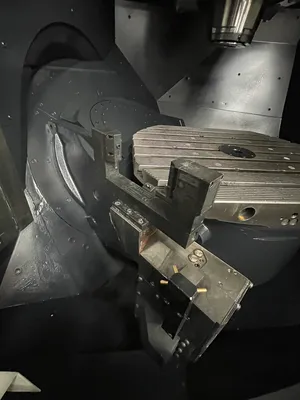

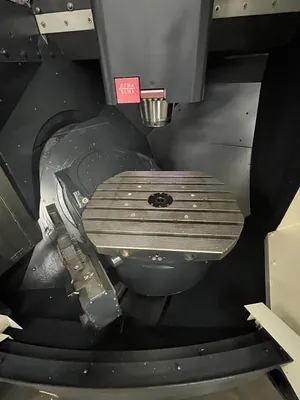

NC Swivel Rotary Table

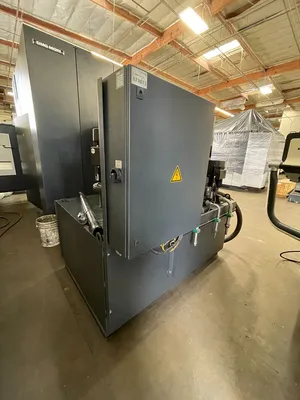

Bandpass Filtration Unit
Chip Conveyor
All Available Manuals
2014 DMG MORI DMU 60 EVO LINEAR 5-Axis vertical machining center. Features X/Y/Z travel: 23.6"/19.7"/19.7", 18,000 RPM spindle, 60-tool capacity, HSK 63 taper, and full 5-axis contouring. Equipped with coolant through, part and tool probes. Used condition.
Imperial
| X Travel | 23.6" |
| Y Travel | 19.7" |
| Z Travel | 19.7" |
| Spindle Speed | 18000 rpm |
| Tool Capacity (ATC) | 60 |
| Table Size (W) | 23.6" |
| Table Size (L) | 19.7" |
| Main Spindle Motor | 46.94 hp |
| Spindle Taper | HSK 63 |
| Spindle Nose To Table Top | 4.9”-24.6” |
| 4 Axis Table Rotation | Full Contouring .001 360000 Degrees |
| 5 Axis Programmable Axis's | Full 5 Axis's Contouring |
| Table Type C-Axis Table Rotation | .001 N/C Contouring 360000 Degrees |
| Coolant Thru | Yes |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| B-AXIS (Table Swivel) | -5110 |
| Chip Conveyor | YES |
| Control | CNC (HEIDENHAIN ITNC 530 5 AXIS CONTROL) |
Travels (X/Y/Z/B/C) 23.6”x19.7”/19.7”/-5 to +110/360 Degree
Max Spindle RPM 18,000
Taper HSK-63
Tool Storage Capacity 60
Max Workpiece Size 23.62”x 19.69”
Table Loading Capacity 881.8 LBS
Spindle Drive Motor 46.94/33.53 HP
Torque (40/100% DC) ft/lbs 95.9/64.2
Rapid Traverse X/Y/Z 3,149” IPM
Table Max Rotational Speed B/C 2,362.2” IPM
Spindle Nose Distance to Table 4.9”-24.6”
Max Table Turning Speed 1,200 RPM
Heidenhain iTNC 530 Control
Linear Motor Drive Option
Renishaw Probing
Blum Laser Tool Measuring
Through Spindle Coolant
NC Swivel Rotary Table
Bandpass Filtration Unit
Chip Conveyor
All Available Manuals
