2019 MAZAK HCR 5000/ 5 AXIS HORIZONTAL

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
MACHINING CENTERS, HORIZONTAL
Manufacturer:
MAZAK
Model:
HCR 5000/ 5 AXIS
Condition:
Excellent
Year:
2019
Stock #:
211044
Status:
For Sale

Description

The Mazak HCR-5000 5 Axis Machining Center (2019) is a high-performance CNC machining solution designed for complex, multi-sided precision machining. Ideal for aerospace, automotive, and energy applications, it delivers exceptional accuracy for structural components, satellite parts, blisks, engine blocks, and powertrain components. Featuring advanced 5-axis capability, it supports high-speed aluminum milling and heavy-duty roughing for demanding production environments.

X-AXIS TRAVEL28.74"730 mm
Y-AXIS TRAVEL28.74"730 mm
Z-AXIS TRAVEL28.74"730 mm
SPINDLE TAPERCAT 40CAT 40
SPINDLE DRIVE MOTOR47 hp
SPINDLE SPEED18000 rpm18,000 RPM
MAXIMUM WORKPIECE DIAMETER27.66"702.56 mm
TOOL CAPACITY (ATC)120120
NUMBER OF PALLETS22
PALLET SIZE19.69" x 19.69"19.69" x 19.69"
PALLET SIZE (W)19.69"500.13 mm
PALLET SIZE (L)19.69"500.13 mm
Number of Axis55
PALLET LOAD CAPACITY1102.31 lb
5 AXIS PROGRAMMABLE AXIS'S55
PART PROBEYESYES
TOOL PROBE/AUTO TOOL LENGTH MEASUREYesYes
HI-PRESSURE COOLANT SYSTEM1000 psi

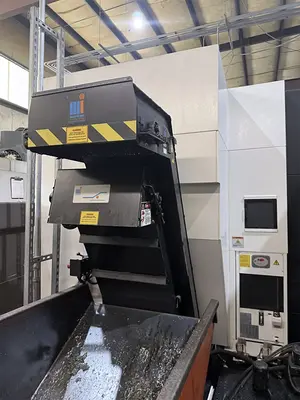

CHIP CONVEYORYesYes

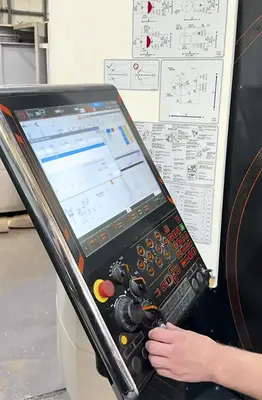

ControlCNC (SMOOTH X FULL 5 AXIS SIMULTANEOUS)CNC (SMOOTH X FULL 5 AXIS SIMULTANEOUS)
Dimensions230.85" x 123.51" x 111.85"230.85" x 123.51" x 111.85"
Weight33,907 LBS33,907 LBS

MAX WORKPIECE DIAMETER 27.66"
MAX WORKPIECE HEIGHT 26.34"
MAX WORKPIECE WEIGHT 1102.31 LBS
SPINDLE TAPER BIG PLUS 40
RAPID FEED RATES - X/ Y/ Z 2362.2 IPM
A 30
C 50

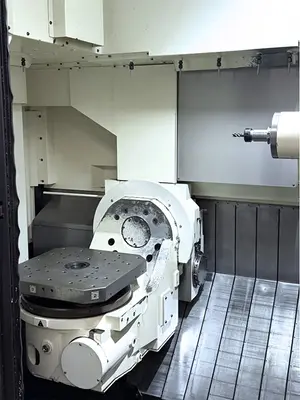

ROTARY TABLE TILT - A AXIS 225 DEGREES
ROTARY TABLE TILT - C AXIS 360,000 DEGREES

SMOOTH X FULL 5-AXIS SIMULTANEOUS CONTROL
BIG PLUS 40 SPINDLE
AUTOMATIC PALLET CHANGER
THROUGH SPINDLE COOLANT

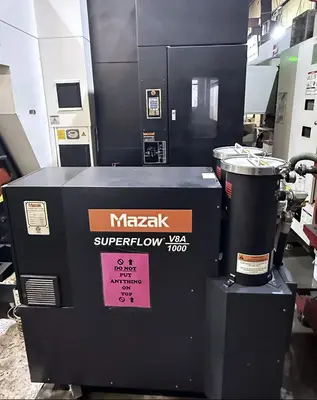

1000 PSI SUPER FLOW V8A HIGH PRESSURE PUMP
RENISHAW RMP600 PROBE
MIST COLLECTOR
DUAL CHIP CONVEYOR
SMOOTH ENGRAVING FUNCTION
