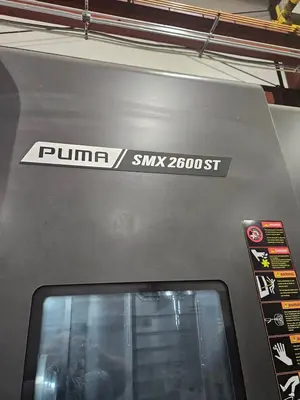

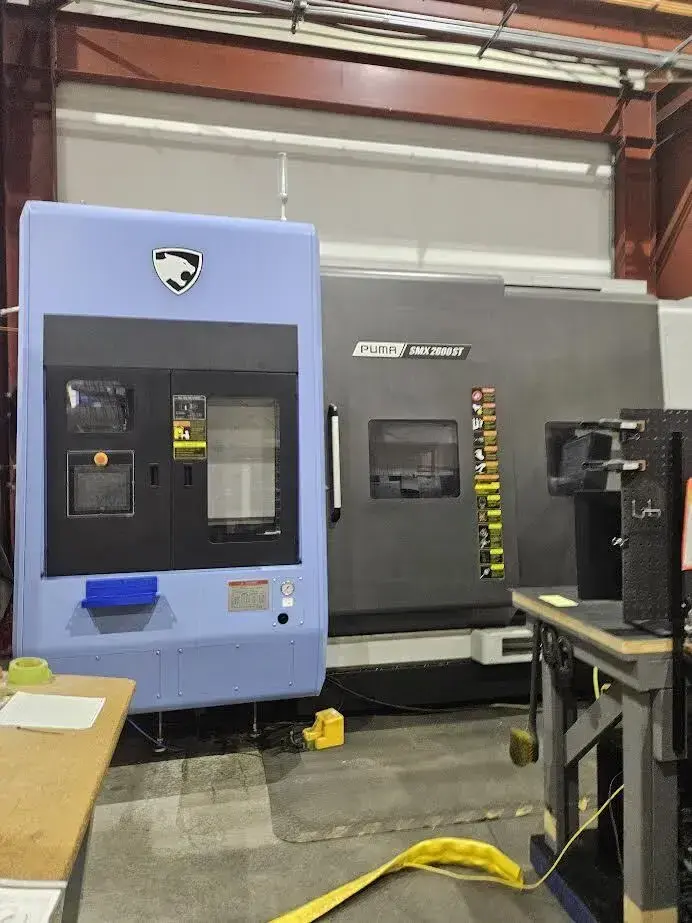

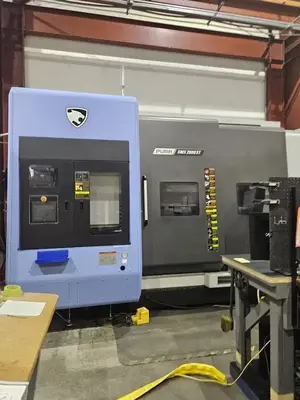

2023 DOOSAN PUMA SMX2600ST
Have one to sell?
ConditionUsed
1 available

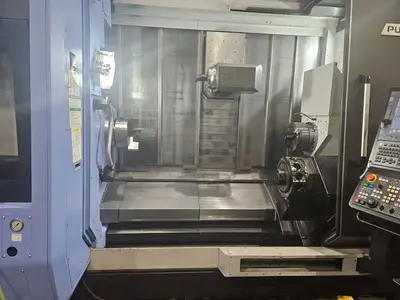

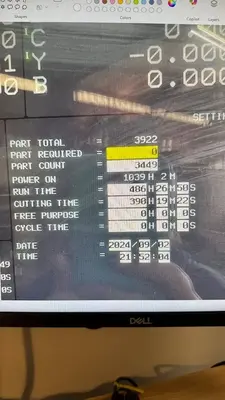

Purchased for a job that never materialized. A little over 600 hours of cutting time for R&D use on this machine. 8 axes, Live milling, Second Spindle, B axis, C axis, Y axis, Lower Turret, 80-station ATC and more.

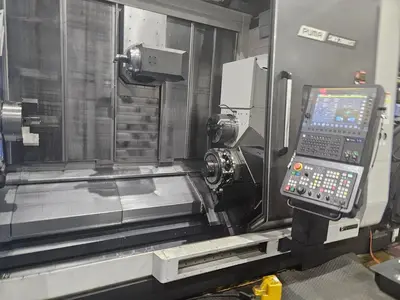

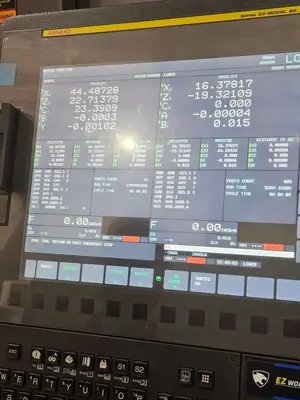

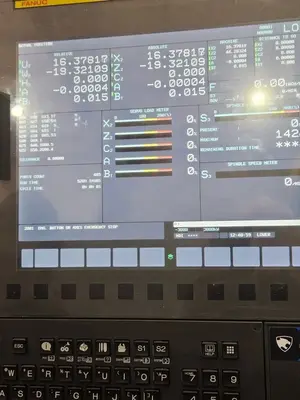

FANUC 31i- B5 CONTROL
LIVE TOOLS ON B AXIS

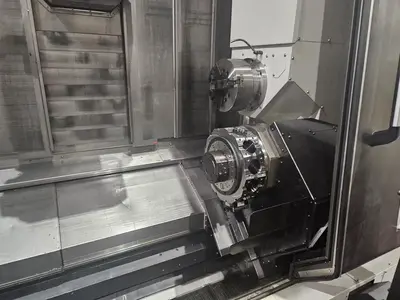

LIVE TOOLS ON LOWER TURRET
ONE LIVE TOOL HOLDER FOR THE TURRET WILL COME WITH THE MACHINE
SCALES
AUTO DOOR
FULL C AXIS ON BOTH SPINDLES
TOOL PRE-SETTER
80 STATION ATC

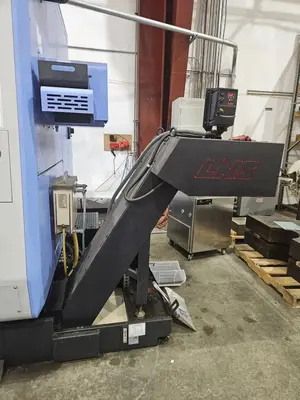

CHIP CONVEYOR

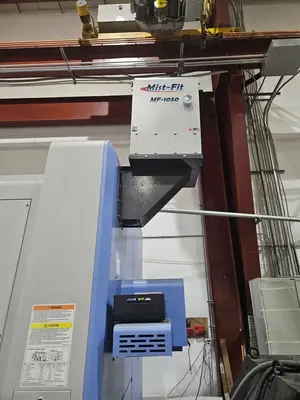

MIST COLLECTOR
ALL STANDARD TOOLING WHEN NEW
Purchased for a job that never materialized. A little over 600 hours of cutting time for R&D use on this machine. 8 axes, Live milling, Second Spindle, B axis, C axis, Y axis, Lower Turret, 80-station ATC and more.
Imperial
| Maximum Swing | 26" |
| Max Turning Diameter | 26" |
| Main Spindle Bore/Max Bar Capacity | 3.5"/ 3.2" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 60.6" |
| X-Axis Travel (X1, X2, X3) | 27.4" |
| Z-Axis Travel (Z1, Z2, Z3) | 62.4" |
| Y-Axis Travel (Y1, Y2, Y3) | 11.8 in (±5.9 in) |
| C-Axis Indexing (1, 2) | .001 |

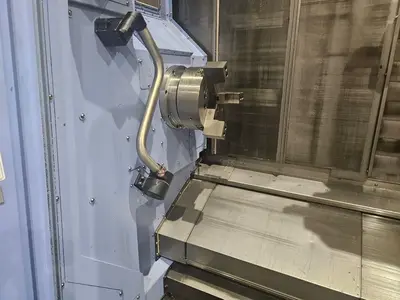

| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.5" |
| Main Spindle Maximum Bar Work | 3.2" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 |
| Sub Spindle/2nd Spindle Chuck Size | 10 |
| Sub Spindle/2nd Spindle Speed | 4,000 RPM |
| ATC Magazine Capacity | 80 |
| Number of Turrets | 1 |
| Turret Rotary Tool Spindle Speed 1, 2 | 12000 |
| B-Axis Travel | ±120° (240° total) |
| Control | CNC (Fanuc 31i-B5) |
| Dimensions | 228" x 118" x 111" |
| Weight | 39,600 Lbs. |
FANUC 31i- B5 CONTROL
LIVE TOOLS ON B AXIS
LIVE TOOLS ON LOWER TURRET
ONE LIVE TOOL HOLDER FOR THE TURRET WILL COME WITH THE MACHINE
SCALES
AUTO DOOR
FULL C AXIS ON BOTH SPINDLES
TOOL PRE-SETTER
80 STATION ATC
CHIP CONVEYOR
MIST COLLECTOR
ALL STANDARD TOOLING WHEN NEW
