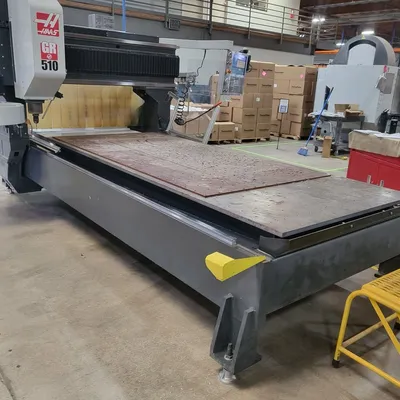

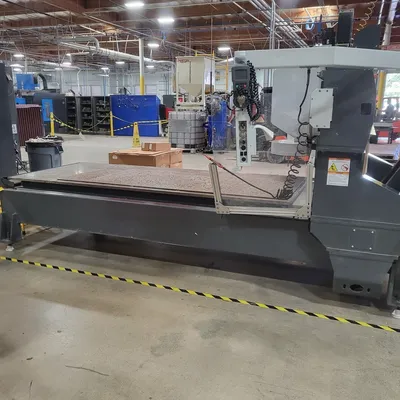

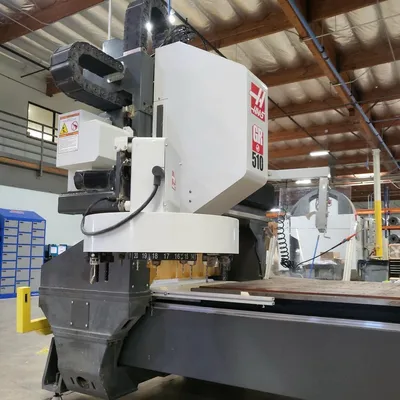

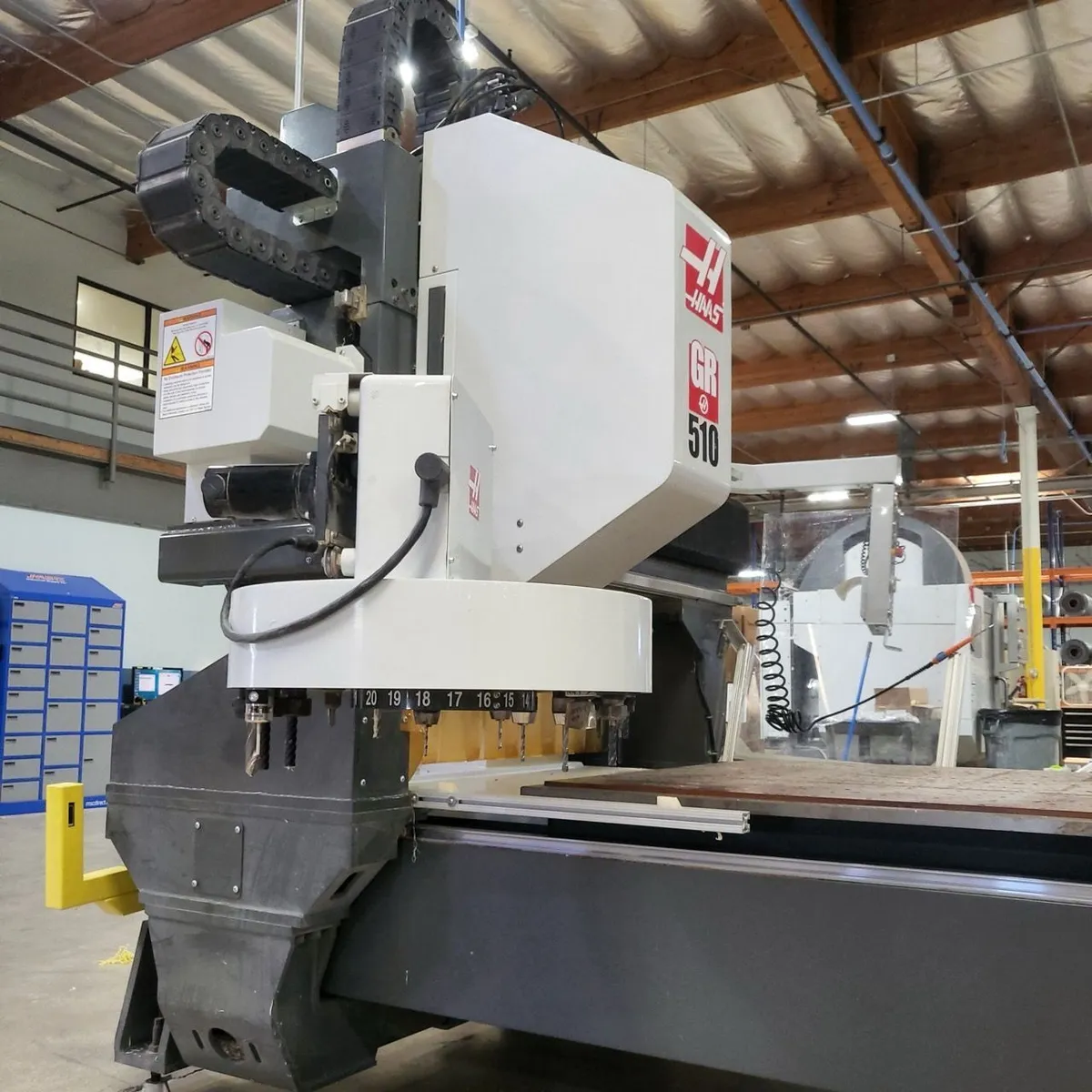

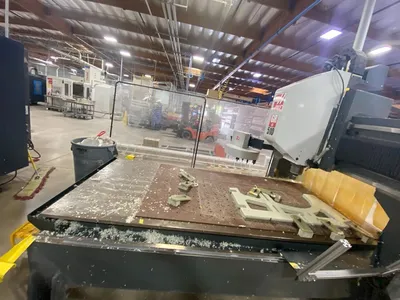

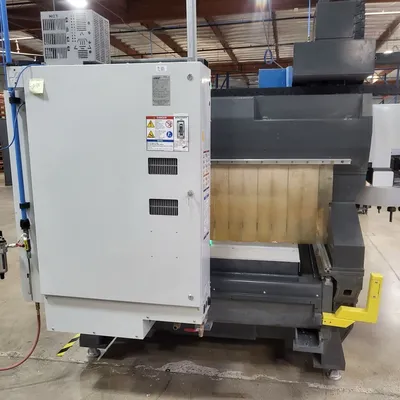

Haas GR-510 Gantry Mill, 2012 – 10k Spindle, Airblast, Low Hours
Have one to sell?
ConditionUsed
1 available
Haas GR-510 Gantry Mill 2012 model features a 10k RPM spindle, airblast, and Haas CNC control. With low hours of use, it boasts dimensions X: 121", Y: 61", Z: 11", and a robust 15 hp motor. Capable of handling up to 6,000 lbs with precision.
TAPER: CT40
SPINDLE NOSE TO TABLE: 2.5″ – 13.5″
MAX TORQUE: 48 FT LB @ 1,500 RPM
DRIVE SYSTEM: DIRECT SPEED, BELT DRIVE
MAX TABLE LOAD (EVENLY DISTRIBUTED): 6,000 LBS
DISTANCE BETWEEN COLUMNS: 62″
RAPIDS X: 800 IPM
RAPIDS Y: 2,100 IPM
RAPIDS Z: 1,100 IPM
MAX CUTTING: 800 IPM
MAX TOOL DIAMETER (ADJACENT POCKETS FULL): 3.5″
MAX TOOL WEIGHT: 12 LBS

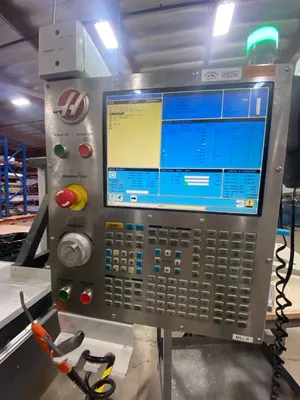

HAAS CNC CONTROL
LIGHT CURTAIN
AIRBLAST
10K RPM SPINDLE

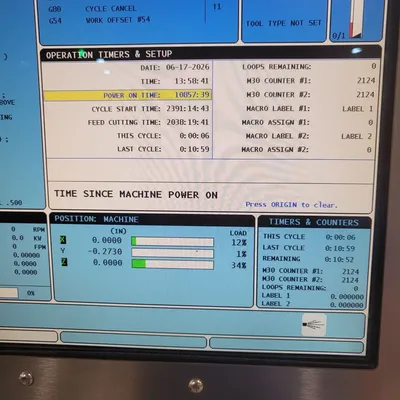

**FEED CUTTING HOURS: 2,038--
Haas GR-510 Gantry Mill 2012 model features a 10k RPM spindle, airblast, and Haas CNC control. With low hours of use, it boasts dimensions X: 121", Y: 61", Z: 11", and a robust 15 hp motor. Capable of handling up to 6,000 lbs with precision.
Imperial
| X | 121" |
| Y | 61" |
| Z | 11" |
| Power | 15 hp |
| RPM | 10,000 RPM |
| # ATC | 10 |
| Taper | 40 |
| Table-W | 53" |
| Table-L | 122" |
| Control | CNC (HAAS CNC CONTROL) |
| Dimensions | 206″ × 111″ × 108″ |
| Weight | 19,400 lbs |
TAPER: CT40
SPINDLE NOSE TO TABLE: 2.5″ – 13.5″
MAX TORQUE: 48 FT LB @ 1,500 RPM
DRIVE SYSTEM: DIRECT SPEED, BELT DRIVE
MAX TABLE LOAD (EVENLY DISTRIBUTED): 6,000 LBS
DISTANCE BETWEEN COLUMNS: 62″
RAPIDS X: 800 IPM
RAPIDS Y: 2,100 IPM
RAPIDS Z: 1,100 IPM
MAX CUTTING: 800 IPM
MAX TOOL DIAMETER (ADJACENT POCKETS FULL): 3.5″
MAX TOOL WEIGHT: 12 LBS
HAAS CNC CONTROL
LIGHT CURTAIN
AIRBLAST
10K RPM SPINDLE
**FEED CUTTING HOURS: 2,038--
