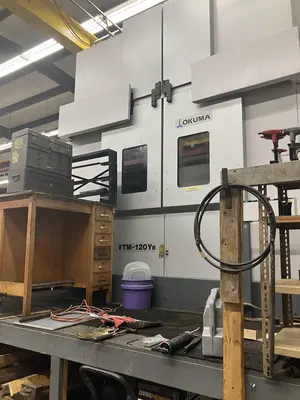

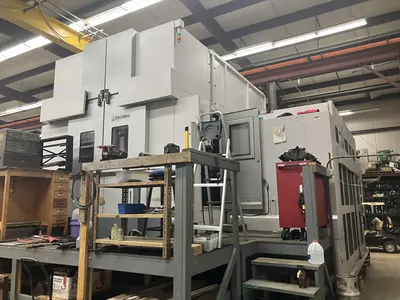

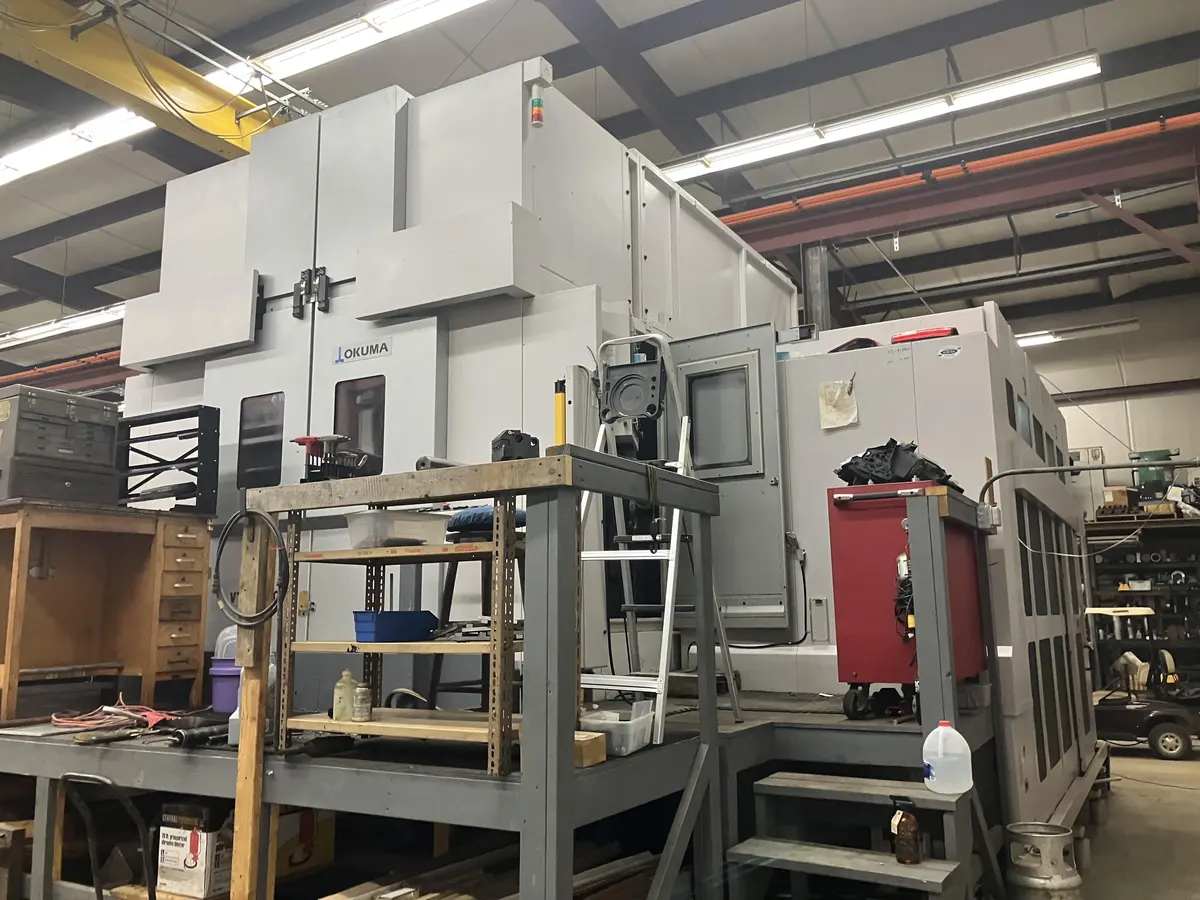

OKUMA VTM-120YB 5-AXIS (2014)

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
VTL VERT. LIVE SPINDLE CNC
Manufacturer:
OKUMA
Model:
VTM-120YB 5-AXIS
Year:
2014
Stock #:
211050
Status:
For Sale

Description

Explore precision with the OKUMA VTM-120YB 5-Axis VTL CNC (2014). Featuring a 50" table, 47.2" max turning diameter, 42.52" turning height, and 120-tool ATC. Equipped with FANUC control, Renishaw probe, and tool breakage detection.

Table Dia50"1,270 mm
Maximum Swing59.06"1,500.1 mm
Maximum Turning Diameter47.2"1,198.9 mm
Maximum Turning Height42.542.5
Table Weight Capacity5,500 lb2,494.8 kg
Vertical Travel of Ram, Z-Axis42.52"1,080 mm
Horizontal Railhead Travel, X-Axis48.8"48.8"
Chuck size5050
Table RPM500 RPM500 RPM
Live Spindle Motor20 HP20 HP
Live Spindle Speed, 2-Ranges6000 RPM6000 RPM
C-Axis Contouring360° full contouring (0.001° minimum increment)360° full contouring (0.001° minimum increment)
Automatic Tool Changer120120
Rapid Traverse X/Z10501050
ControlCNC (FANUC 18i-TB)CNC (FANUC 18i-TB)

B AXIS MILLING & TURNING HEAD .001 DEGREE INDEX

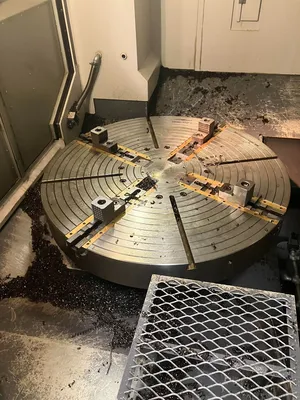

50" (4) JAW CHUCK
X TRAVEL 48.8"
Y TRAVEL 24.4"
MAX. MACHINING DIA. 47.2"
MAX. MACHINING LENGTH: 42.5"
C-AXIS / B-AXIS: 20 RPM / 19.5 MIN⁻¹
NOTE:
• MAX TOOL WEIGHT 66 LBS
• MAX TOOL LENGTH: 19.69 IN
MAXIMUM SWING / TURNING DIAMETER:
59.06" SWING / 47.24 IN MAX CUTTING DIAMETER.

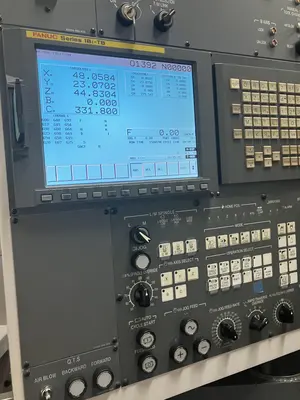

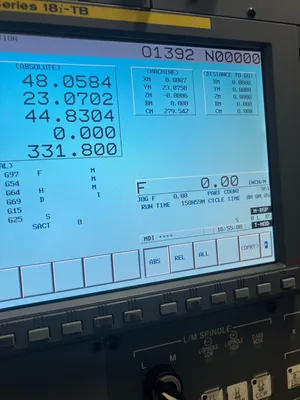

FANUC 18ITB CONTROL
CAT 50 BIG PLUS SPINDLE

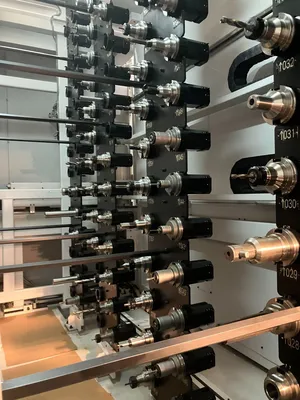

120 ATC
CAT 50 BIG PLUS SPINDLE
RENISHAW PROBE INFRARED READER
TOOL BREAKAGE DETECTION
POP- OUT TOOL PRESETTER ARM

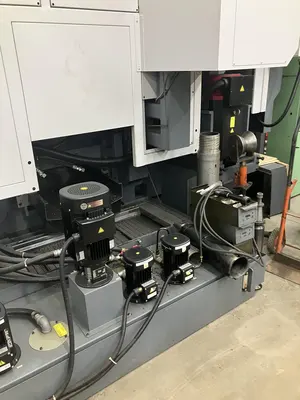

CHIP CONVEYOR
CHIP BLASTER UNIT 1000 PSI COOLANT THROUGH

NEW 2104 TAG SAYS YEAR 2012 INSTALLED IN 2014
