2020 DMG MORI NTX 1000 Gen II

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DMG MORI
Model:
NTX 1000 GEN II
Stock #:
211051
Status:
For Sale

Description

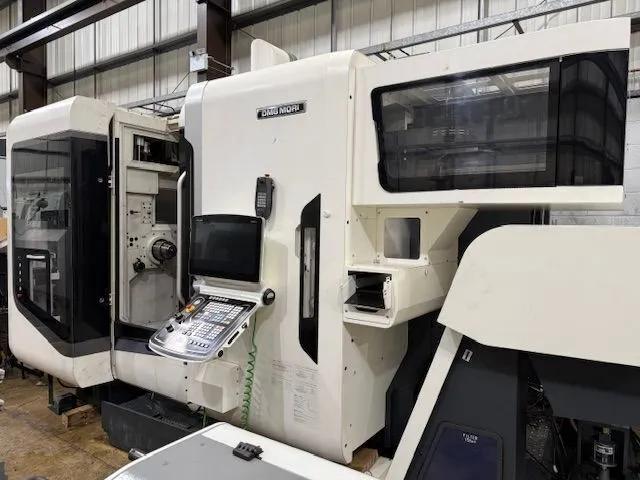

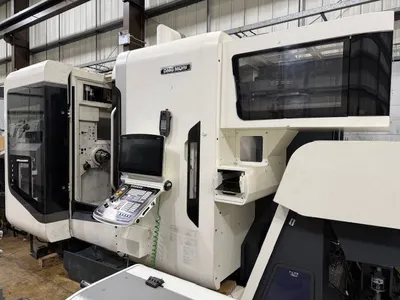

2020 DMG MORI NTX 1000 Gen II CNC Lathe in used condition. Max turning diameter of 31.4", equipped with CELOS Siemens 840D, 76 ATC capacity, dual 8" hydraulic chucks, sub spindle, and high-speed capabilities. Includes chip conveyor and mist collector.

Max Turning Diameter31.4"797.56 mm
Main Spindle Bore/Max Bar Capacity2.4"/ 2.0"2.4"/ 2.0"
Tail Stock/Sub SpindleSUBSPINDLESUBSPINDLE
Maximum Swing Over Cross Slide17.7"449.58 mm
Distance Between Centers41.3"1,049 mm
X-Axis Travel (X1, X2, X3)17.9"17.9"
Z-Axis Travel (Z1, Z2, Z3)31.431.4
Y-Axis Travel (Y1, Y2, Y3)4.14.1
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter2.4"60.96 mm
Main Spindle Maximum Bar Work2"50.8 mm
Main Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Chuck Size88
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
ATC Magazine Capacity7676
Number of Turrets11
Turret Tool Positions 1, 21010
Turret Rotary Tool Spindle Speed 1, 22000020000
B-Axis Head Indexing120 deg120°
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
Rapid Traverse, X-Axis15741574
Rapid Traverse, Y-Axis1968.01968.0
Rapid Traverse, Z-Axis1717.01717.0
ControlCNC (CELOS SIEMENS 840D SL)CNC (CELOS SIEMENS 840D SL)

Taper Hole Tool Spindle Capto C5
Min B Axis Indexing .0001
Max. Tool Diameter: 5.1" without adjacent tools;
2.7" with adjacent tools
Max. Tool Length: 9.8"
Max. Tool Weight: 11lbs
Tool-to-Tool Change: ~2.26 seconds

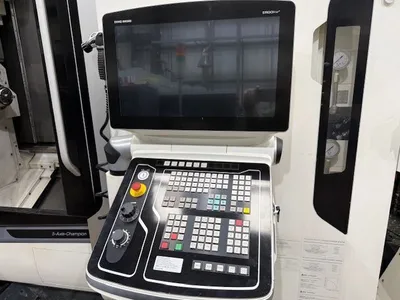

CELOS Siemens 840D SL Control
HAINBUCH SPANNTOP MINI PULL BACK SIZE 65 COLLET CHUCK
CHIP CONVEYOR

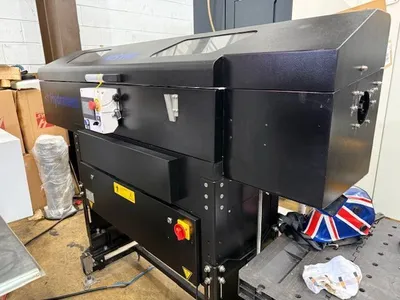

HYDRAFEED MSV65 SERVO DRIVEN SHORT MAGAZINE BAR FEED UNIT
WORKPIECE UNLOADER
WORKPIECE EJECTOR
INTERFACED FOR SUPER HIGH PRESSURE COOLANT SYSTEM
ROTARY WINDOW
COOLANT GUN
AIR BLOW FOR CHUCK
MIST COLLECTOR I/F
OIL SKIMMER
OIL MIST SEPARATOR
MANUAL IN MACHINE TOOL PRESETTER
FULL CLOSED LOOP CONTROL FOR X AXIS (TOOL SPINDLE)
FULL CLOSED LOOP CONTROL FOR X AXIS (TURRET 2)
FULL CLOSED LOOP CONTROL FOR Y AXIS (TOOL SPINDLE)
FULL CLOSED LOOP CONTROL FOR Z AXIS (TOOL SPINDLE)
FULL CLOSED LOOP CONTROL FOR Z AXIS (TURRET 2)
IN MACHINE WORKPIECE MEASURING SYSTEM (RENISHAW RMP 600)
TOOL BREAKAGE DETECTION (BLUM Z PICO)
SIGNAL LAMP 4 COLORS
BAR FEEDER INTERFACE
DRY ANCHOR
MULTI DRY FILTER
MANUAL PULSE GENERATOR
TECHNOLOGY CYCLE- 5 AXIS SIMULTANEOUS MACHINING
RENISHAW MULTI-AXIS INSPECTION SOFTWARE
