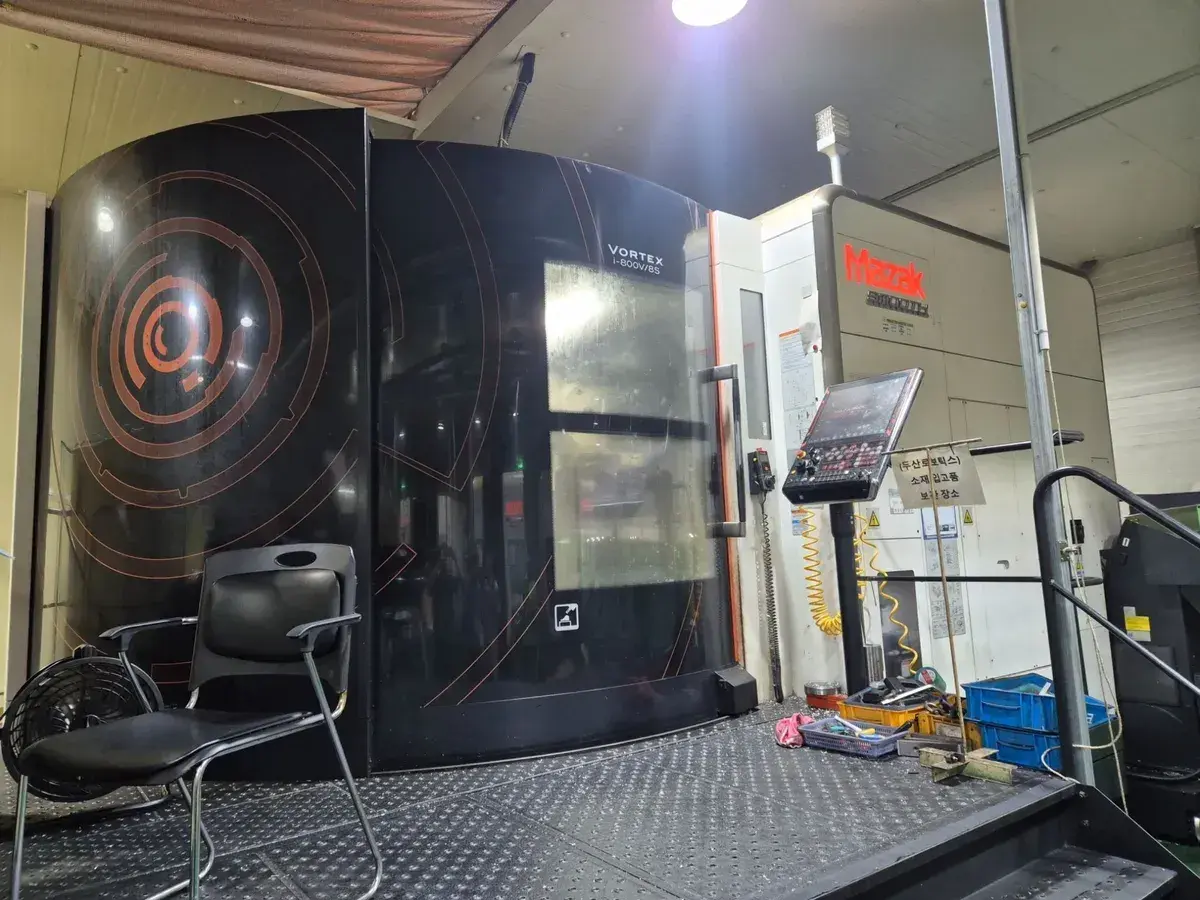

MAZAK VORTEX I 800V/8S CNC MULTI-TASKING TURNING/MACHINING CENTER (2016)
Have one to sell?
ConditionUsed
1 available
Discover the power of a 2016 MAZAK VORTEX I-800V/8S CNC 5 Axis Machining Center. It features a 50 hp spindle motor, 10,000 RPM speeds, and advanced MAZATROL SMOOTH X CNC control. Size precision with its expansive 66.93" X-axis travel and 43-tool changer, SCALES ON X, Y, and Z AXIS.
TOOL DIAMETER 4.92", 11.81
TOOL LENGTH 25.59"
TOOL WEIGHT 66 lb

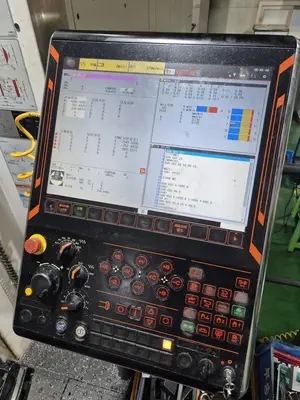

MAZATROL SMOOTH X CNC COLOR CONTROL
EIA, HIGH SMOOTHING CONTROL, SPIRAL, EIA 3D COMP
ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
HOB MACHINING, HIGH SPEED, SHAPE COMP., THREAD
INVERSE TIME, 3-D CO-OR ROT., AUTO TLM, POLAR COORDINATE INPUT
COMPARISON STOP, SPLINE, G54.1, SYNC MILL TAP, ROT-AXIS SHAPE COMP.
G00 SLOPE CONST. SCALE FEEDBACK X, Y, Z AXIS
VARIABLE 600 SETS, CYLINDRICAL & POLAR CO-OR INT. SIMULTANEOUS 5 AXIS
EIA HELICAL TAP, EIA PATTERN CYCLE, 2ND AUX. FUNCTION, TILTED WORK PLANE
5 - AXIS TOOL COMP, 5 - AXIS TOOL LENGTH COMP., TOOL CENTER POINT CONTROL
5 - AXIS SPLINE, SEAMLESS CORNER CONTROL, VARIABLE ACC CONTROL, SUPER HIGH SPEED, RAPID OVERLAP
SPINDLE CHILLER
CHIP CONVEYOR
Discover the power of a 2016 MAZAK VORTEX I-800V/8S CNC 5 Axis Machining Center. It features a 50 hp spindle motor, 10,000 RPM speeds, and advanced MAZATROL SMOOTH X CNC control. Size precision with its expansive 66.93" X-axis travel and 43-tool changer, SCALES ON X, Y, and Z AXIS.
Imperial
| X Travel | 68.93" |
| Y Travel | 59.06" |
| Z Travel | 45.28" |
| Spindle Speed | 10000 rpm |

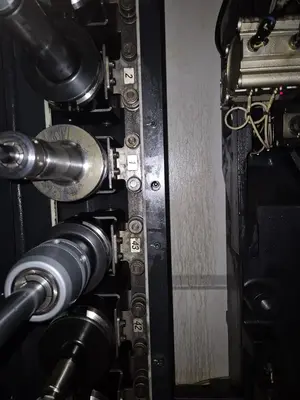

| Tool Capacity (ATC) | 43 |

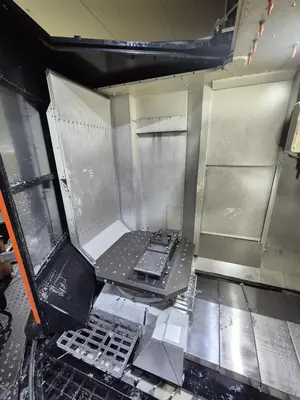

| Table Size (W) | 39.4" |
| Table Size (L) | 39.4" |
| Main Spindle Motor | 50 hp |
| Spindle Nose To Table Top | - 9.8" ~ 35.43" |
| Table Type C-Axis Table Rotation | .001 N/C Contouring 360000 Degrees |
| B-Axis (Table Swivel) | - 30 ~ + 120 DEGREES |
| Rapid Traverse Rates | 2047 ipm |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 2047 IPM/ 2407 IPM/ 2407 IPM |
| Chip Conveyor | YES |
| Control | CNC (MAZATROL SMOOTH X) |
| Weight | 94,600 lbs. |
TOOL DIAMETER 4.92", 11.81
TOOL LENGTH 25.59"
TOOL WEIGHT 66 lb

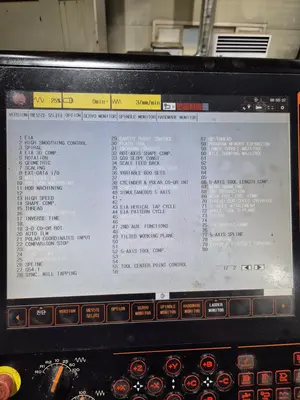

MAZATROL SMOOTH X CNC COLOR CONTROL
EIA, HIGH SMOOTHING CONTROL, SPIRAL, EIA 3D COMP
ROTATION, GEOMETRIC, SCALING, EXT-DATA I/O
HOB MACHINING, HIGH SPEED, SHAPE COMP., THREAD
INVERSE TIME, 3-D CO-OR ROT., AUTO TLM, POLAR COORDINATE INPUT
COMPARISON STOP, SPLINE, G54.1, SYNC MILL TAP, ROT-AXIS SHAPE COMP.
G00 SLOPE CONST. SCALE FEEDBACK X, Y, Z AXIS
VARIABLE 600 SETS, CYLINDRICAL & POLAR CO-OR INT. SIMULTANEOUS 5 AXIS
EIA HELICAL TAP, EIA PATTERN CYCLE, 2ND AUX. FUNCTION, TILTED WORK PLANE
5 - AXIS TOOL COMP, 5 - AXIS TOOL LENGTH COMP., TOOL CENTER POINT CONTROL
5 - AXIS SPLINE, SEAMLESS CORNER CONTROL, VARIABLE ACC CONTROL, SUPER HIGH SPEED, RAPID OVERLAP
SPINDLE CHILLER
CHIP CONVEYOR
