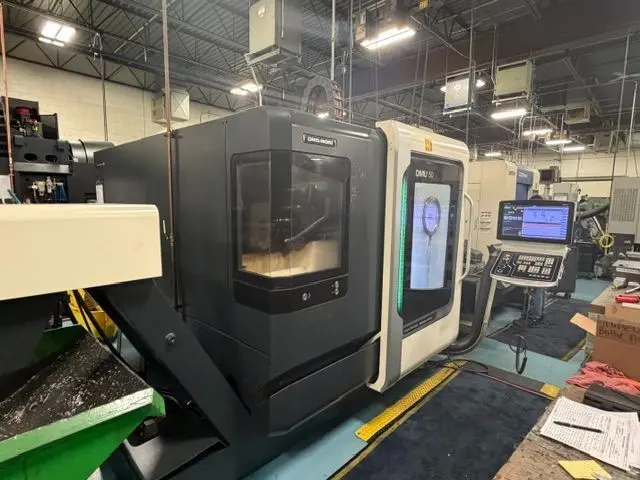

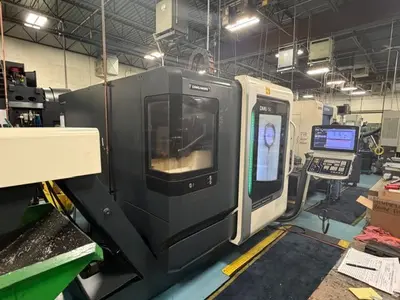

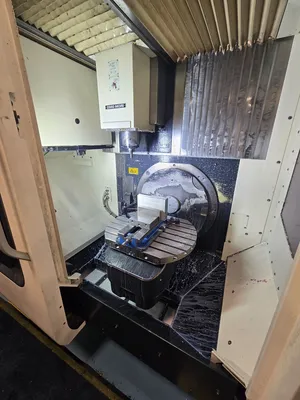

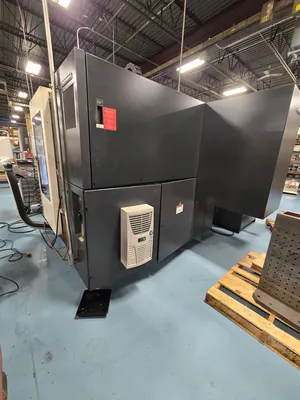

2017 DMG MORI DMU 50 5-AXIS CNC VERTICAL MACHINING CENTER - 18,000 RPM MILL
Have one to sell?
ConditionUsed
1 available
Explore precision with the 2017 DMG MORI DMU 50 GEN II 5-Axis CNC Vertical Machining Center. Features include 19.7" X travel, 18,000 RPM spindle, Siemens 840 DSL control, and a 60-tool magazine. Enjoy efficient machining with advanced probes and coolant systems.
Max Weight on Table: 661 lbs
Tool Diameter: 3.14" ~ 5.11 "
Tool Length: 11.8"
Tool Weight: 13.2 LBS.
Air Required: 80 psi, 4 scfm
Power: 400 v / 60 hz / 34 kva

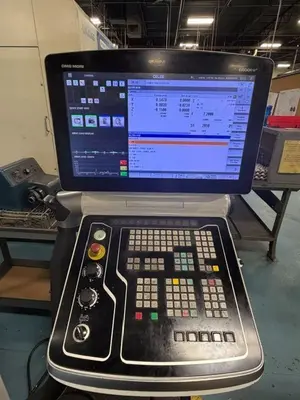

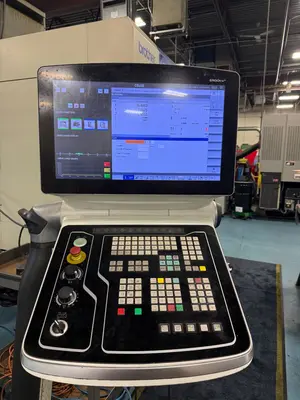

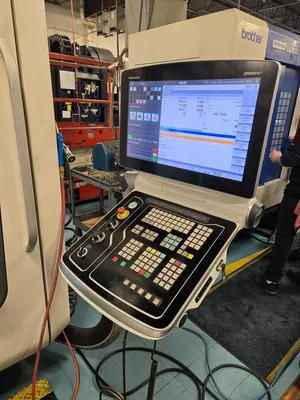

SIEMENS 840 DSL CNC CONTROL PREMIUM DESIGN WITH CELOS
HAND-HELD REMOTE PULSE GENERATOR
SPRAY GUN FOR SWARF REMOVAL
AIR BLAST THROUGH SPINDLE CENTER
TOOL MEASURING IN MACHINING AREA BLUM LASER 3D QUICK SET
60 AUTO TOOL MAGAZINE
INFRARED MEASURING PROBE RENISHAW OMP 60

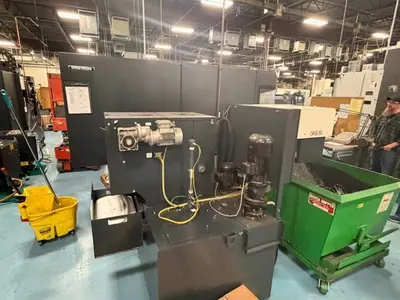

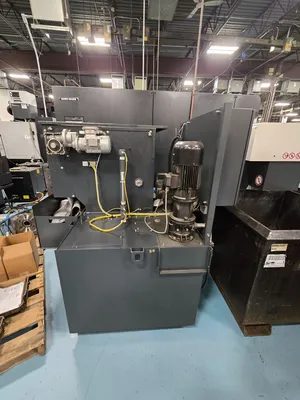

INTERNAL COOLANT WITH PAPER FILTER 40 BAR / 580 PSI COOLANT THROUGH SPINDLE
MIST COLLECTOR
BAND PAST FILTRATION UNIT
ROTARY WINDOW
CHIP CONVEYOR
4500 CUTTING HOURS
Explore precision with the 2017 DMG MORI DMU 50 GEN II 5-Axis CNC Vertical Machining Center. Features include 19.7" X travel, 18,000 RPM spindle, Siemens 840 DSL control, and a 60-tool magazine. Enjoy efficient machining with advanced probes and coolant systems.
Imperial
| X Travel | 19.7" |
| Y Travel | 17.7" |
| Z Travel | 15.7" |
| Spindle Speed | 18000 rpm |
| Tool Capacity (ATC) | 60 |
| Table Size (W) | 19.7" |
| Table Size (L) | 27.7" |
| Main Spindle Motor | 20 hp |
| Spindle Taper | HSK 63 |
| Spindle Nose To Table Top | 5.9" ~ 24.6" |
| Table Type A-Axis Trunnion Tilt Range | -5 - +110° |
| Table Type C-Axis Table Rotation | N/C Contouring |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| B-Axis (Table Swivel) | 360° ( Table Tilt ) |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 945 IPM/ 945 IPM/ 945 IPM |
| Chip Conveyor | YES |
| Control | CNC (CELOS SIEMENS 840D SL) |
| Dimensions | 216.5″ x 135″ x 106″ High Approx. |
| Weight | 10,604 LBS |
Max Weight on Table: 661 lbs
Tool Diameter: 3.14" ~ 5.11 "
Tool Length: 11.8"
Tool Weight: 13.2 LBS.
Air Required: 80 psi, 4 scfm
Power: 400 v / 60 hz / 34 kva
SIEMENS 840 DSL CNC CONTROL PREMIUM DESIGN WITH CELOS
HAND-HELD REMOTE PULSE GENERATOR
SPRAY GUN FOR SWARF REMOVAL
AIR BLAST THROUGH SPINDLE CENTER
TOOL MEASURING IN MACHINING AREA BLUM LASER 3D QUICK SET
60 AUTO TOOL MAGAZINE
INFRARED MEASURING PROBE RENISHAW OMP 60
INTERNAL COOLANT WITH PAPER FILTER 40 BAR / 580 PSI COOLANT THROUGH SPINDLE
MIST COLLECTOR
BAND PAST FILTRATION UNIT
ROTARY WINDOW
CHIP CONVEYOR
4500 CUTTING HOURS
