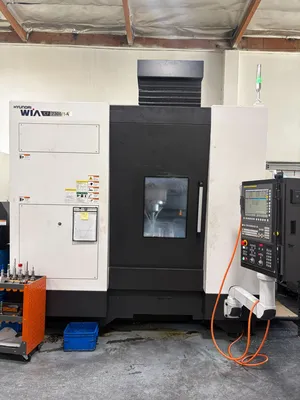

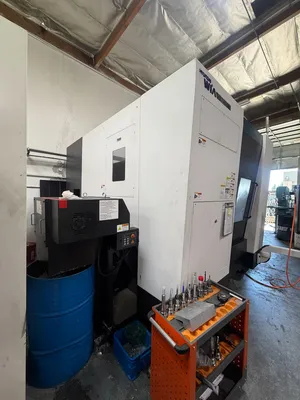

2024 HYUNDAI WIA XF 7300 CNC FULL 5 AXIS MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2024 Hyundai WIA XF 7300 CNC full 5-axis machining center. Features 30" X, 25.6" Y, 20.5" Z travel, 12,000 rpm spindle, 60-tool capacity, and CAT 40 taper. Equipped with FANUC 31i-B5 control, Renishaw tool measurement, and high-pressure coolant system.
TOOL DIAMETER 3", 5"
TOOL LENGTH 11.8"
TOOL WEIGHT 17.6 lb
WEIGHT ON TABLE 1,102 lb
MAX WORKPIECE
DIAMETER AND HEIGHT 28.7" ~ 19.7" HT.
FANUC 31I - B5 CNC COLOR CONTROL
REMOTE MPG
BIG PLUS SPINDLE 40 TAPER
X, Y, Z AXIS COOLING BALL SCREWS AND LM GUIDEWAY COOLING
RENISHAW TS 27R TOOL LENGTH MEASUREMENT AND BREAKAGE DETECTION
60 AUTO TOOL CHANGER
AUTO POWER OFF
19" COLOR TFT MONITOR
SHOWER COOLANT
BED FLUSHING COOLANT
ETHERNET & USB
5 AXIS SIMULTANEOUS
EXTENDED MEMORY
SPINDLE CHILLER
HIGH PRECISION LINEAR SCALE X, Y, & Z AXIS
DOUBLE PINION GEAR DRIVE ON B AXIS
B & C AXIS ROTARY SCALES
THRU SPINDLE COOLANT 20 BAR, 300 PSI
CHIP CONVEYOR
2024 Hyundai WIA XF 7300 CNC full 5-axis machining center. Features 30" X, 25.6" Y, 20.5" Z travel, 12,000 rpm spindle, 60-tool capacity, and CAT 40 taper. Equipped with FANUC 31i-B5 control, Renishaw tool measurement, and high-pressure coolant system.
Imperial
| X Travel | 30.1" |
| Y Travel | 25.6" |
| Z Travel | 20.5" |
| Spindle Speed | 12000 rpm |
| Tool Capacity (ATC) | 60 |
| Table Size (W) | 28.7" |
| Table Size (L) | 28.7" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | CAT 40 |
| Table Type C-Axis Table Rotation | N/C Contouring |
| Coolant Thru | Yes |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 300 psi |
| Tool Probe/Auto Tool Length Measurement | Yes |
| B-Axis (Table Swivel) | +120 ~ -20 DEGREES |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1575 IPM/ 1575 IPM/ 1575 IPM |
| Chip Conveyor | YES |
| Control | CNC (Fanuc 31i-B5) |
| Dimensions | 120.1" X 129.9" X 125" HT |
| Weight | 25,351 LBS |
TOOL DIAMETER 3", 5"
TOOL LENGTH 11.8"
TOOL WEIGHT 17.6 lb
WEIGHT ON TABLE 1,102 lb
MAX WORKPIECE
DIAMETER AND HEIGHT 28.7" ~ 19.7" HT.
FANUC 31I - B5 CNC COLOR CONTROL
REMOTE MPG
BIG PLUS SPINDLE 40 TAPER
X, Y, Z AXIS COOLING BALL SCREWS AND LM GUIDEWAY COOLING
RENISHAW TS 27R TOOL LENGTH MEASUREMENT AND BREAKAGE DETECTION
60 AUTO TOOL CHANGER
AUTO POWER OFF
19" COLOR TFT MONITOR
SHOWER COOLANT
BED FLUSHING COOLANT
ETHERNET & USB
5 AXIS SIMULTANEOUS
EXTENDED MEMORY
SPINDLE CHILLER
HIGH PRECISION LINEAR SCALE X, Y, & Z AXIS
DOUBLE PINION GEAR DRIVE ON B AXIS
B & C AXIS ROTARY SCALES
THRU SPINDLE COOLANT 20 BAR, 300 PSI
CHIP CONVEYOR
