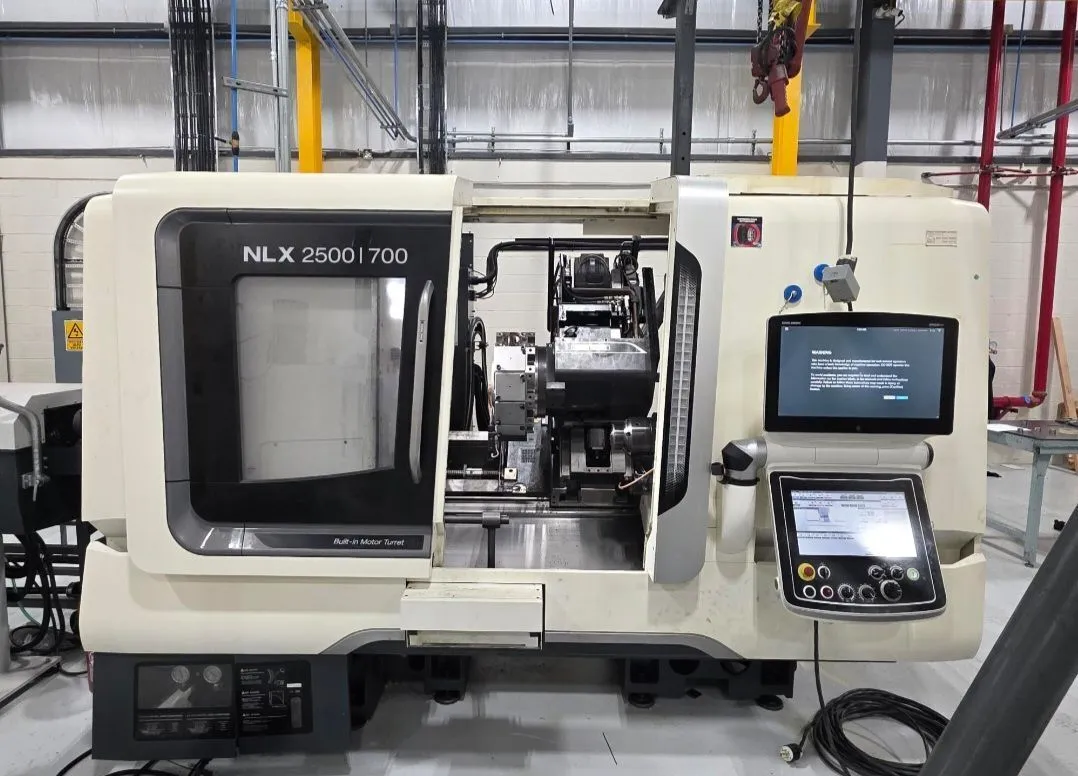

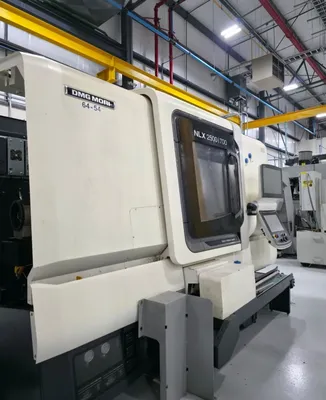

2017 DMG MORI NLX 2500SY
Have one to sell?
ConditionUsed
1 available

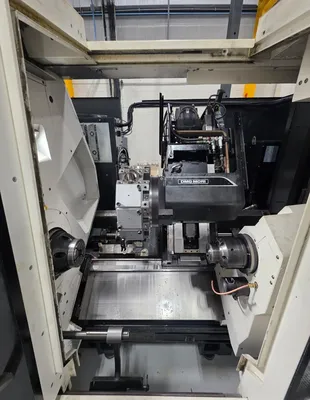

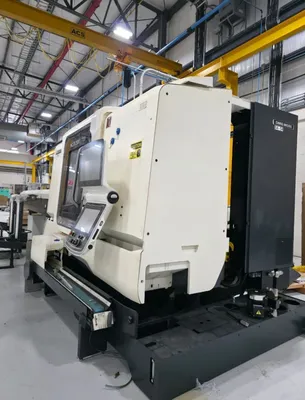

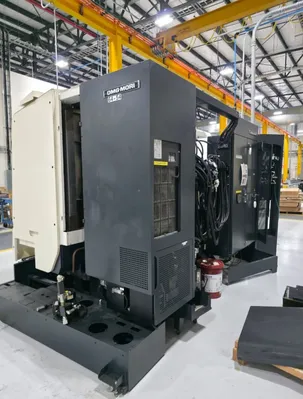

DMG MORI NLX 2500SY Combination CNC Lathe, 2017 model, in very good used condition. Ideal for precision machining tasks, offering robust performance and advanced capabilities for diverse industrial applications.
Quote: 2017 DMG MORI NLX-2500SY/700
Multi-Axis Turning Center
SPECIFICATIONS:
Swing Over Bed: 36.4"
Swing Over Front Cover: 29.7"
Max. Turning Diameter: 14"
Max. Turning Length: 27.7"
Bar Work Capacity: 3.1"
X Axis Travel: 10.2"
Y Axis Travel: 3.9<+/-2.
Z-Axis Travel: 31.3"
Headstock 2 Travel B-Axis: 28.9"
Max. Spindle Speed, Main: 4,000 RPM
Max. Spindle Speed , Sub: 6,000 RPM
Thru Spindle Hole Dia., Main: 3.6"
Thru Spindle Hole Dial, Sub: 1.7"
Number of Tool Stations: 12
Max. Rotary Tool Speed: 10,000 RPM
Rapid Traverse Rate X,Z,B: 1,181 IPM
Rapid Traverse Rate Y: 393.7 IPM
Rapid Traverse Rate C: 400 Min.
Chip Conveyor
Parts Catcher

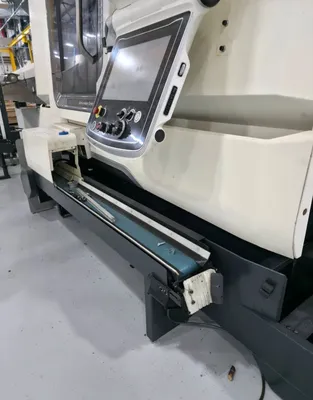

Part Conveyor

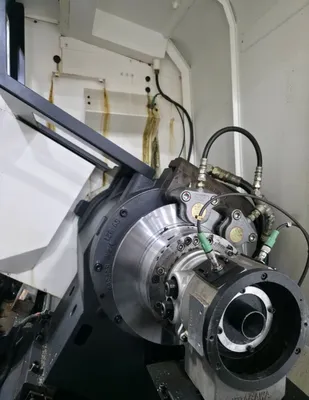

Collet Chucks Main & Sub Spindle
All Available Manuals
DMG MORI NLX 2500SY Combination CNC Lathe, 2017 model, in very good used condition. Ideal for precision machining tasks, offering robust performance and advanced capabilities for diverse industrial applications.
Imperial
| Maximum Swing | 36.4" |
| Max Turning Diameter | 14.01" |
| Main Spindle Bore/Max Bar Capacity | 3.58"/3.1" |
| Tail Stock/Sub Spindle | SUB SPINDLE |
| Maximum Swing Over Cross Slide | 29.72" |
| Distance Between Centers | 28.7" |
| Maximum Cutting Length | 27.75" |
| X-Axis Travel (X1, X2, X3) | 10.24" |
| Z-Axis Travel (Z1, Z2, Z3) | 31.3" |
| Y-Axis Travel (Y1, Y2, Y3) | 3.9" +/- 2" |
| C-Axis Indexing (1, 2) | 0.001 |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.58" |
| Main Spindle Speed | 5,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 25 / 22 HP |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 1.7" |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 / 10 HP |
| Number of Turrets | 1 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.0 |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 394 |
| Rapid Traverse, Z-Axis | 1181 |
| Control | CNC (Mori M730UM CNC Control with CELOS) |
Quote: 2017 DMG MORI NLX-2500SY/700
Multi-Axis Turning Center
SPECIFICATIONS:
Swing Over Bed: 36.4"
Swing Over Front Cover: 29.7"
Max. Turning Diameter: 14"
Max. Turning Length: 27.7"
Bar Work Capacity: 3.1"
X Axis Travel: 10.2"
Y Axis Travel: 3.9<+/-2.
Z-Axis Travel: 31.3"
Headstock 2 Travel B-Axis: 28.9"
Max. Spindle Speed, Main: 4,000 RPM
Max. Spindle Speed , Sub: 6,000 RPM
Thru Spindle Hole Dia., Main: 3.6"
Thru Spindle Hole Dial, Sub: 1.7"
Number of Tool Stations: 12
Max. Rotary Tool Speed: 10,000 RPM
Rapid Traverse Rate X,Z,B: 1,181 IPM
Rapid Traverse Rate Y: 393.7 IPM
Rapid Traverse Rate C: 400 Min.
Chip Conveyor
Parts Catcher
Part Conveyor
Collet Chucks Main & Sub Spindle
All Available Manuals
