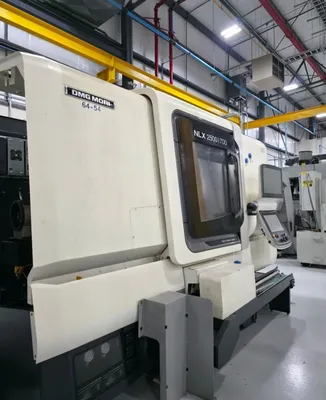

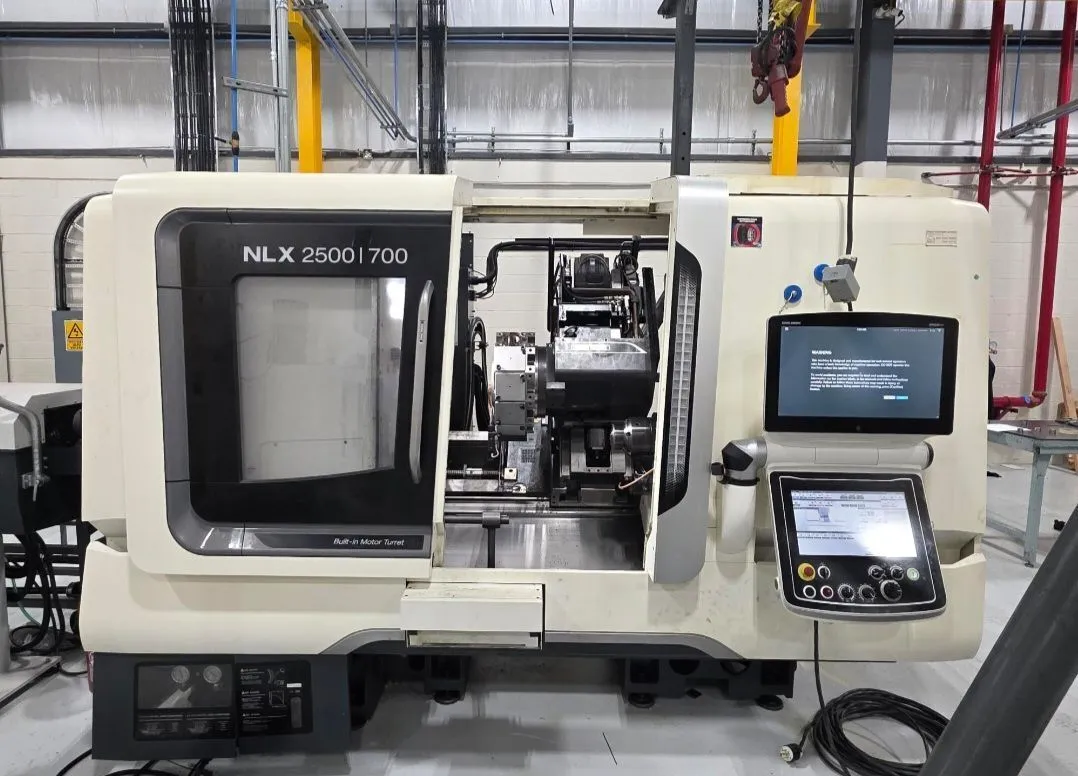

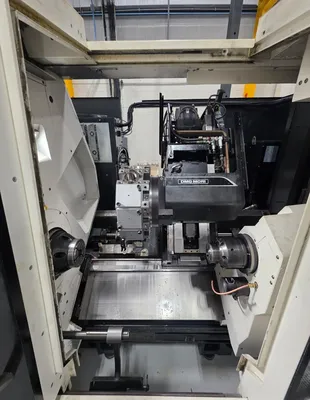

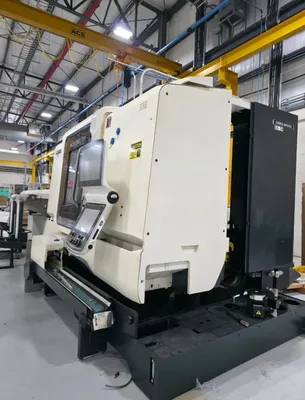

2017 DMG Mori NLX-2500SY - SUBSPINDLE - CHIP CONVEYOR

2017 DMG Mori NLX-2500SY - SUBSPINDLE - CHIP CONVEYOR

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
$199,900.00 USD
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
DMG MORI
Model:
NLX 2500SY/ 700 LATHE W/ MILLING, SUB AND Y
Year:
2017
Stock #:
211061
Status:
For Sale

Description

2017 DMG MORI NLX 2500/700 CNC turning center offering high-rigidity precision turning, approximately 18″ max turning diameter, 28″ turning length, 10″ chuck capability, powerful spindle performance, and production-ready features ideal for job shops, aerospace, automotive, and general machining applications.

Maximum Swing36.229"920.22 mm
Max Turning Diameter18.1"459.74 mm
Main Spindle Bore/Max Bar Capacity3.58"/3.1"3.58"/3.1"
Tail Stock/Sub SpindleSUB SPINDLESUB SPINDLE
Maximum Swing Over Cross Slide23.2"589.28 mm
Maximum Cutting Length27.75"704.85 mm
X-Axis Travel (X1, X2, X3)10.24"10.24"
Z-Axis Travel (Z1, Z2, Z3)31.3"31.3"
Y-Axis Travel (Y1, Y2, Y3)3.9" +/- 2"3.9" +/- 2"
C-Axis Indexing (1, 2)0.0010.001
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.58"90.932 mm
Main Spindle Maximum Bar Work3.1"78.74 mm
Main Spindle Speed5,000 RPM5,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)25 / 22 HP25 / 22 HP
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size1.7"1.7"
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)15 / 10 HP15 / 10 HP
Main & Sub Spindle SynchronizationYesYes
Number of Turrets11
Turret Tool Positions 1, 21212
Bar FeedNoNo
Parts CatcherYesYes
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
Rapid Traverse, X-Axis11811181
Rapid Traverse, Y-Axis394394
Rapid Traverse, Z-Axis11811181
ControlCNCCNC
Dimensions174" X 93" X 87"174" X 93" X 87"
Weight17,500 LBS17,500 LBS

MACHINE WAS FULLY INSPECTED PRIOR TO PURCHASING

Equipped With:
Celos ERGOline Mitsubishi M-730UM Control
Chip Conveyor
Parts Catcher

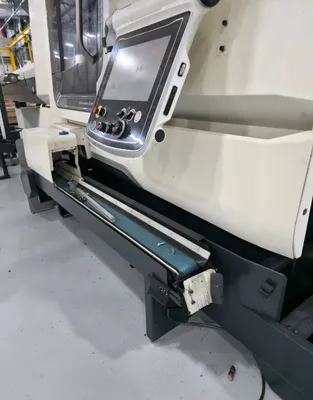

Part Conveyor

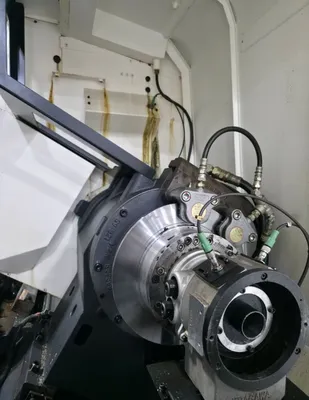

Collet Chucks Main & Sub Spindle
