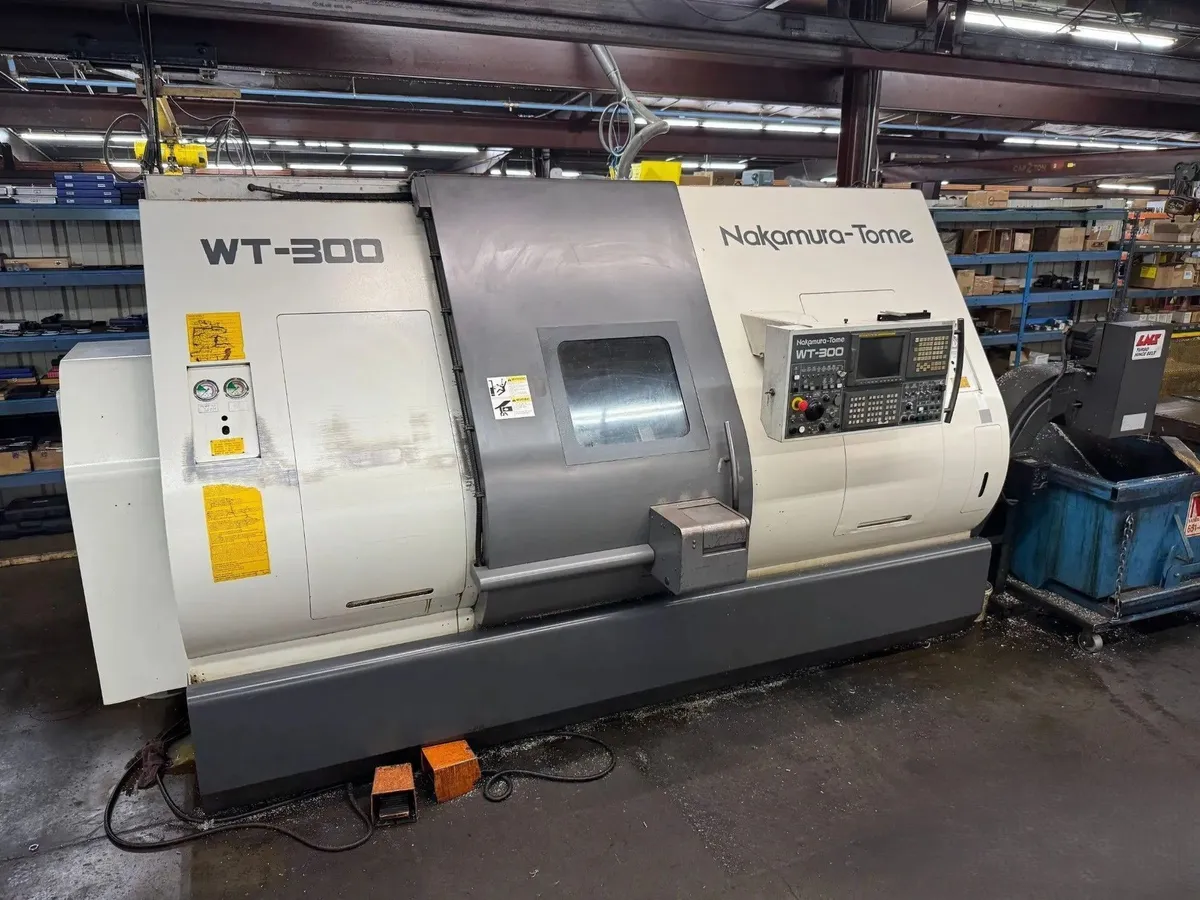

NAKAMURA TOME WT-300MMSY 8-AXIS CNC TURNING/MILL CENTER

NAKAMURA TOME WT-300MMSY 8-AXIS CNC TURNING/MILL CENTER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
NAKAMURA TOME
Model:
WT 300MMYS
Year:
2008
Stock #:
211062
Status:
For Sale

Description

Explore precision with the used Nakamura Tome WT-300MMSY 8-axis CNC turning/mill center. Featuring sub spindle, hydraulic chucks, Fanuc 18i-TB control, and versatile turrets. Equipped with bar feed, parts catcher, and chip conveyor for efficient operation.

Maximum Swing10.6"269.24 mm
Max Turning Diameter10.8"274.32 mm
Main Spindle Bore/Max Bar Capacity3.1/ 2.53.1/ 2.5
Tail Stock/Sub SpindleSub SpindleSub Spindle
Distance Between Centers43.3"1,099.8 mm
Maximum Cutting Length43.3"1,099.8 mm
X-Axis Travel (X1, X2, X3)7.6", 7.6"7.6", 7.6"
Z-Axis Travel (Z1, Z2, Z3)30.7", 30.77"30.7", 30.77"
Y-Axis Travel (Y1, Y2, Y3)4.72"4.72"
C-Axis Indexing (1, 2).001, .001.001, .001
Main Spindle Chuck Size8"203.2 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter3.1"78.74 mm
Main Spindle Maximum Bar Work2.5"63.5 mm
Main Spindle Speed4,500 RPM4,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)2020
Sub Spindle/2nd Spindle Chuck Size88
Sub Spindle/2nd Spindle Bore Size3.13.1
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed4,500 RPM4,500 RPM
Number of Turrets22
Turret Tool Positions 1, 22424
Turret Rotary Tool Spindle Speed 1, 240004000
Turret Rotary Tool Horse Power 1, 22020
B-Axis Travel33.4633.46
B Axis Rotary Tool Spindle Speed4000 rpm4,000 RPM
B-Axis Rotary Tool Spindle Horsepower5 hp
Bar FeedYesYes
Parts CatcherYesYes
Chip ConveyorYesYes
Number of Available Live Tool Holders33
ControlCNC (FANUC 18iTB)CNC (FANUC 18iTB)
Dimensions166" X 100" X 89"166" X 100" X 89"
Weight28,000 LBS28,000 LBS

SOINDLE THRU HOLE DIAMETER 1 / 2: A2-6'' / 3.15''
SPINDLE SPEED: 4500 RPM
SPINDLE HORSEPOWER 1 / 2: 25 HP AC
B - AXIS TRAVEL RIGHT SPINDLE : 33.46''
TURRET TYPE NUMBER OF POSITIONS 1 / 2: 24 DRUM TURRET
NUMBER OF MILLING POSITIONS 1 / 2: 12 / 12
ROTARY TOOL SPEED 1 / 2: 3600 RPM
ROTARY TOOL HORSEPOWER 1 / 2: 7.5 HP AC
SPINDLE INDEXING INCREMENTS 1 / 2: .001 DEGREE

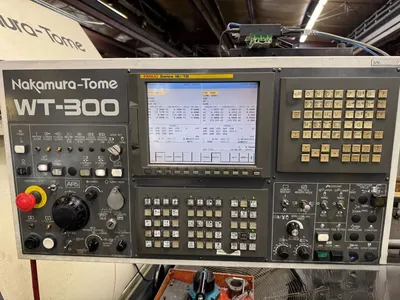

FANUC 18 i-TB CONTROL

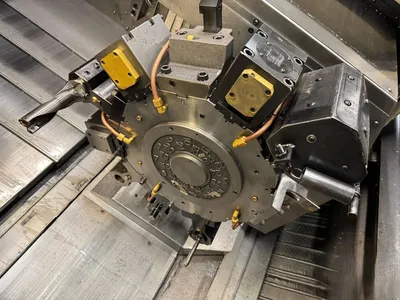

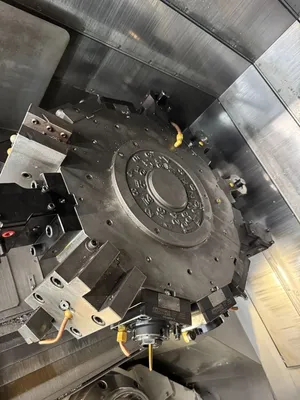

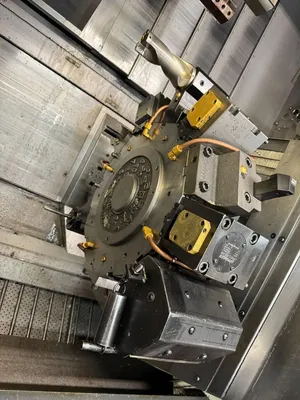

BMT65 TURRETS - LIVE ON BOTH TURRETS

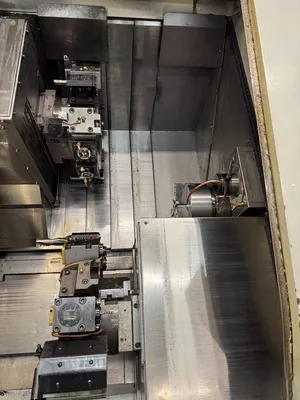

UPPER/LOWER TURRETS
Y AXIS UPPER TURRET
MAIN/SUB SPINDLES
FANUC 18I-TB

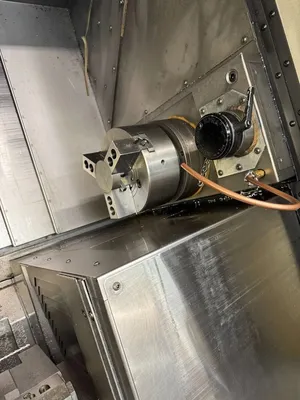

MAIN SPINDLE - 10" THREE JAW CHUCK
SUB SPINDLE - 3 JAW KITAGAWA CHUCK
(7) VARIOUS X AND Z AXIS LIVE TOOLS

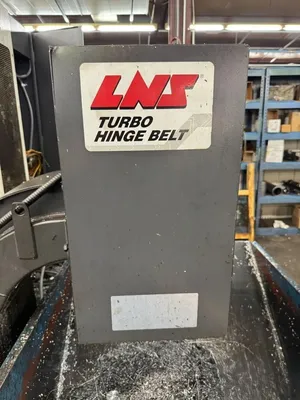

LNS TURBO CHIP CONVEYOR
