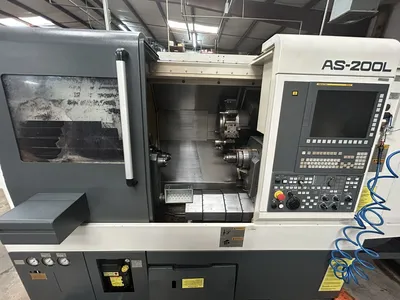

2021 NAKAMURA-TOME AS200MLSY
Have one to sell?
ConditionUsed
1 available

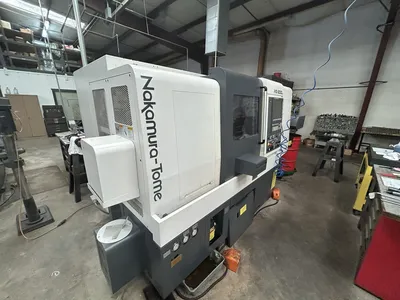

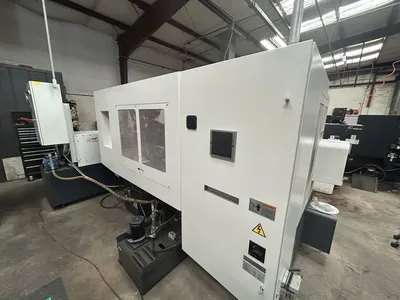

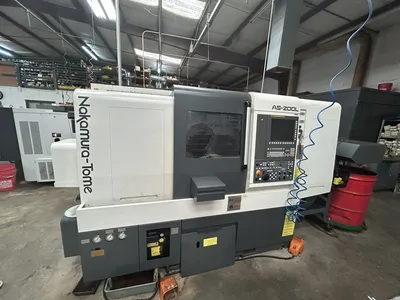

NAKAMURA-TOME AS200MLSY used CNC Multi-Axis Lathe available. Features an 8.0 Main Spindle Chuck Size. Ideal for precision engineering tasks. Contact us for more information and pricing.
C-Axis Resolution: Full C-Axis (High-speed index at 600 RPM)

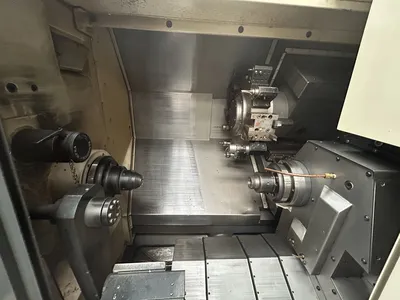

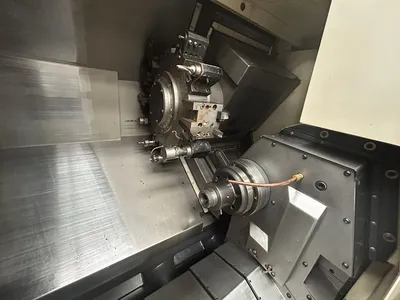

Turret Type: Dodecagonal (12-station)
# of Driven Tool Stations:12
Floor Space (L x W): Approx.124" x 71", depending on
chip conveyor and bar feeder configuration.

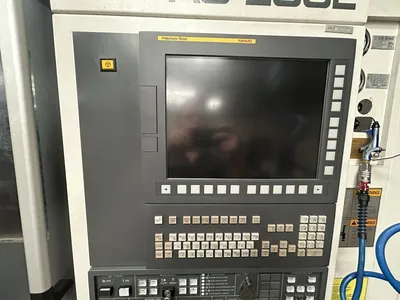

FANUC Oi-TF CONTROL
3 LIVE TOOLS
6" 3-JAW KITAGAWA CHUCK FOR SUB SPINDLE
FULL C AXIS ON BOTH SPINDLES
QG-65 QUICK GRIP COLLETS

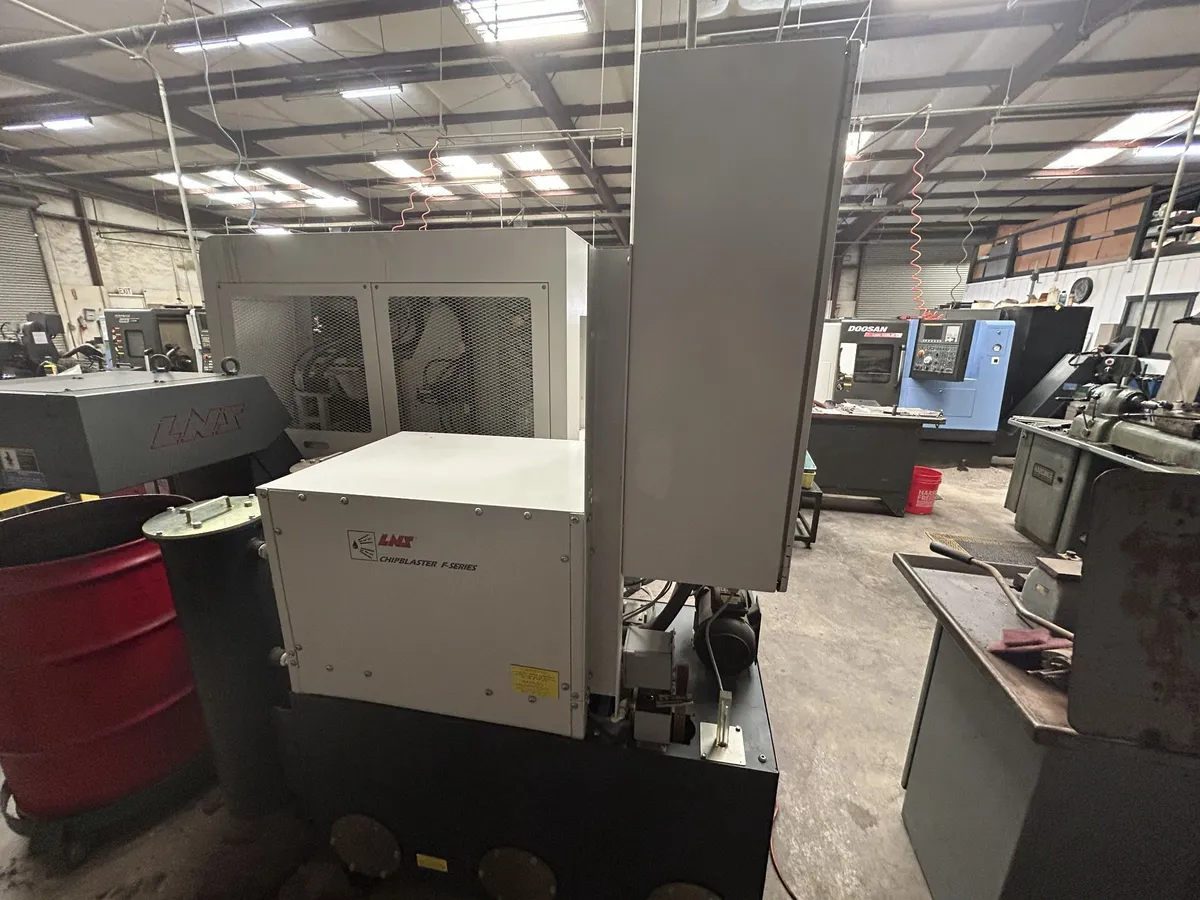

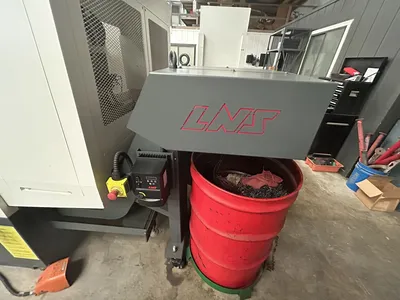

LNS TURBO CHIP CONVEYOR
PARTS CATCHER
NAKAMURA-TOME AS200MLSY used CNC Multi-Axis Lathe available. Features an 8.0 Main Spindle Chuck Size. Ideal for precision engineering tasks. Contact us for more information and pricing.
Imperial
| Maximum Swing | 15.75" |
| Max Turning Diameter | 11" |
| Main Spindle Bore/Max Bar Capacity | 2.99"/ 2.5" |
| Tail Stock/Sub Spindle | SUB SPINDLE |
| Maximum Swing Over Cross Slide | 15.8" |
| Distance Between Centers | 16.75" |
| Distance Between Spindles | 31.5" |
| X-Axis Travel (X1, X2, X3) | 9" |
| Z-Axis Travel (Z1, Z2, Z3) | 23" |
| Y-Axis Travel (Y1, Y2, Y3) | 3.22" / ±1.6" |
| C-Axis Indexing (1, 2) | FULL C-AXIS |
| Main Spindle Chuck Size | 8" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.99" |
| Main Spindle Maximum Bar Work | 2.5" |
| Main Spindle Speed | 4,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 1.6" |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Turret Tool Positions 1, 2 | 24 |
| Rapid Traverse, X-Axis | 945 |
| Rapid Traverse, Y-Axis | 236 |
| Rapid Traverse, Z-Axis | 1418 |
| Control | CNC (FANUC OI-TF) |
| Dimensions | (L x W): Approx.124" x 71" |
| Weight | 11,023 lbs. |
C-Axis Resolution: Full C-Axis (High-speed index at 600 RPM)
Turret Type: Dodecagonal (12-station)
# of Driven Tool Stations:12
Floor Space (L x W): Approx.124" x 71", depending on
chip conveyor and bar feeder configuration.
FANUC Oi-TF CONTROL
3 LIVE TOOLS
6" 3-JAW KITAGAWA CHUCK FOR SUB SPINDLE
FULL C AXIS ON BOTH SPINDLES
QG-65 QUICK GRIP COLLETS
LNS TURBO CHIP CONVEYOR
PARTS CATCHER
