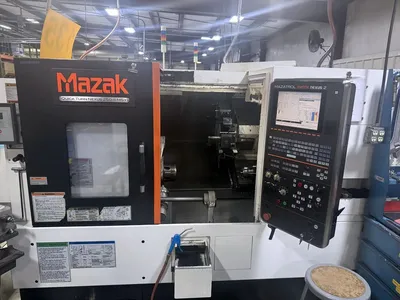

MAZAK QTN 250MSY - BARFEEDER AND PARTS CATCHER

MAZAK QTN 250MSY - BARFEEDER AND PARTS CATCHER

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 250MSY-II
Condition:
Excellent
Year:
2014
Stock #:
211068
Status:
For Sale

Description

Explore the MAZAK QTN 250MSY-II CNC lathe, a 2014 multi-axis powerhouse with 26.5" max swing, 4,000 RPM main spindle, sub-spindle, 14.75" max turning diameter, advanced MATRIX NEXUS II, bar feeder, parts catcher, and chip conveyor. Perfect for precision tasks.

Maximum Swing26.5"673.1 mm
Max Turning Diameter14.75"374.65 mm
Main Spindle Bore/Max Bar Capacity3.46"/ 3.0"3.46"/ 3.0"
Tail Stock/Sub SpindleSub SpindleSub Spindle
Maximum Swing Over Cross Slide14"355.6 mm
Maximum Cutting Length21.27"540.26 mm
Distance Between Spindles21.28"540.51 mm
X-Axis Travel (X1, X2, X3)99
Z-Axis Travel (Z1, Z2, Z3)22.6222.62
Y-Axis Travel (Y1, Y2, Y3)+ / - 2.0"+ / - 2.0"
C-Axis Indexing (1, 2).0001 DEGREE.0001 DEGREE
Main Spindle Chuck Size10"254 mm
Main Spindle Chuck TypeColletCollet
Main Spindle Bore Diameter3.46"87.884 mm
Main Spindle Maximum Bar Work3"76.2 mm
Main Spindle Speed4,000 RPM4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)35/ 3035/ 30
Sub Spindle/2nd Spindle Chuck Size66
Sub Spindle/2nd Spindle Bore Size1.69" THROUGH HOLE1.69" THROUGH HOLE
Sub Spindle/2nd Spindle Chuck TypeHydraulicHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)1010
Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 245004500
Turret Rotary Tool Horse Power 1, 27.57.5
Bar FeedYesYes
Parts CatcherYesYes
Chip ConveyorYesYes
High Pressure Coolant System (PSI)213213

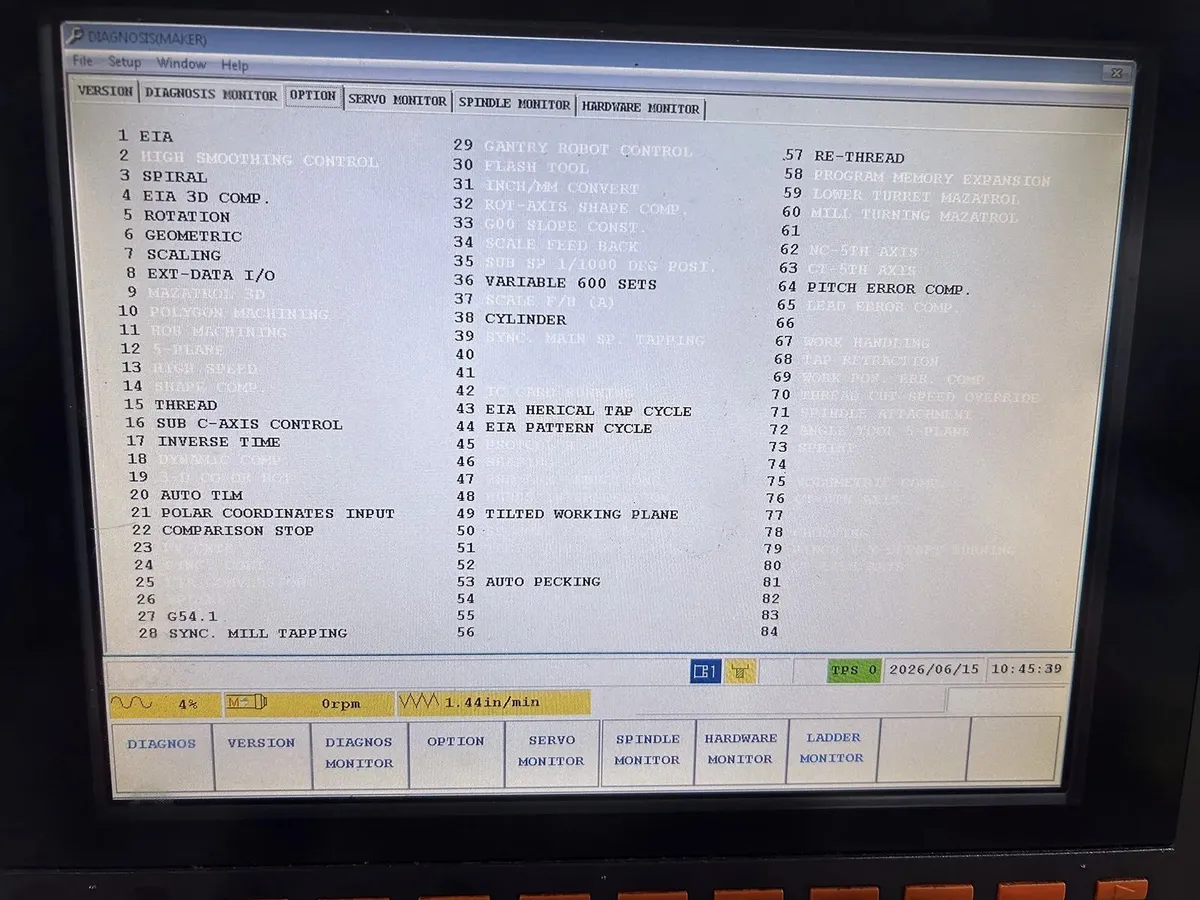

ControlCNC (MAZATROL MATRIX NEXUS 2)CNC (MAZATROL MATRIX NEXUS 2)

MATRIX NEXUS II
SUB-SPINDLE
Y-AXIS
4FT LNS BARFEED
JORGENSON CHIP-CONVEYOR
COLLET ON MAIN SPINDLE
CHUCK ON SUB-SPINDLE
PARTS CATCHER

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 250MSY-II
Condition:
Excellent
Year:
2014
Stock #:
211068
Status:
For Sale

Description

Explore the MAZAK QTN 250MSY-II CNC lathe, a 2014 multi-axis powerhouse with 26.5" max swing, 4,000 RPM main spindle, sub-spindle, 14.75" max turning diameter, advanced MATRIX NEXUS II, bar feeder, parts catcher, and chip conveyor. Perfect for precision tasks.

Specifications

Imperial

Maximum Swing26.5"
Max Turning Diameter14.75"
Main Spindle Bore/Max Bar Capacity3.46"/ 3.0"
Tail Stock/Sub SpindleSub Spindle
Maximum Swing Over Cross Slide14"
Maximum Cutting Length21.27"
Distance Between Spindles21.28"
X-Axis Travel (X1, X2, X3)9
Z-Axis Travel (Z1, Z2, Z3)22.62
Y-Axis Travel (Y1, Y2, Y3)+ / - 2.0"
C-Axis Indexing (1, 2).0001 DEGREE
Main Spindle Chuck Size10"
Main Spindle Chuck TypeCollet
Main Spindle Bore Diameter3.46"
Main Spindle Maximum Bar Work3"
Main Spindle Speed4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS)35/ 30
Sub Spindle/2nd Spindle Chuck Size6
Sub Spindle/2nd Spindle Bore Size1.69" THROUGH HOLE
Sub Spindle/2nd Spindle Chuck TypeHydraulic
Sub Spindle/2nd Spindle Speed6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS)10
Turret Tool Positions 1, 212
Turret Rotary Tool Spindle Speed 1, 24500
Turret Rotary Tool Horse Power 1, 27.5
Bar FeedYes
Parts CatcherYes
Chip ConveyorYes
High Pressure Coolant System (PSI)213
ControlCNC (MAZATROL MATRIX NEXUS 2)

Equipped With

MATRIX NEXUS II
SUB-SPINDLE
Y-AXIS
4FT LNS BARFEED
JORGENSON CHIP-CONVEYOR
COLLET ON MAIN SPINDLE
CHUCK ON SUB-SPINDLE
PARTS CATCHER
