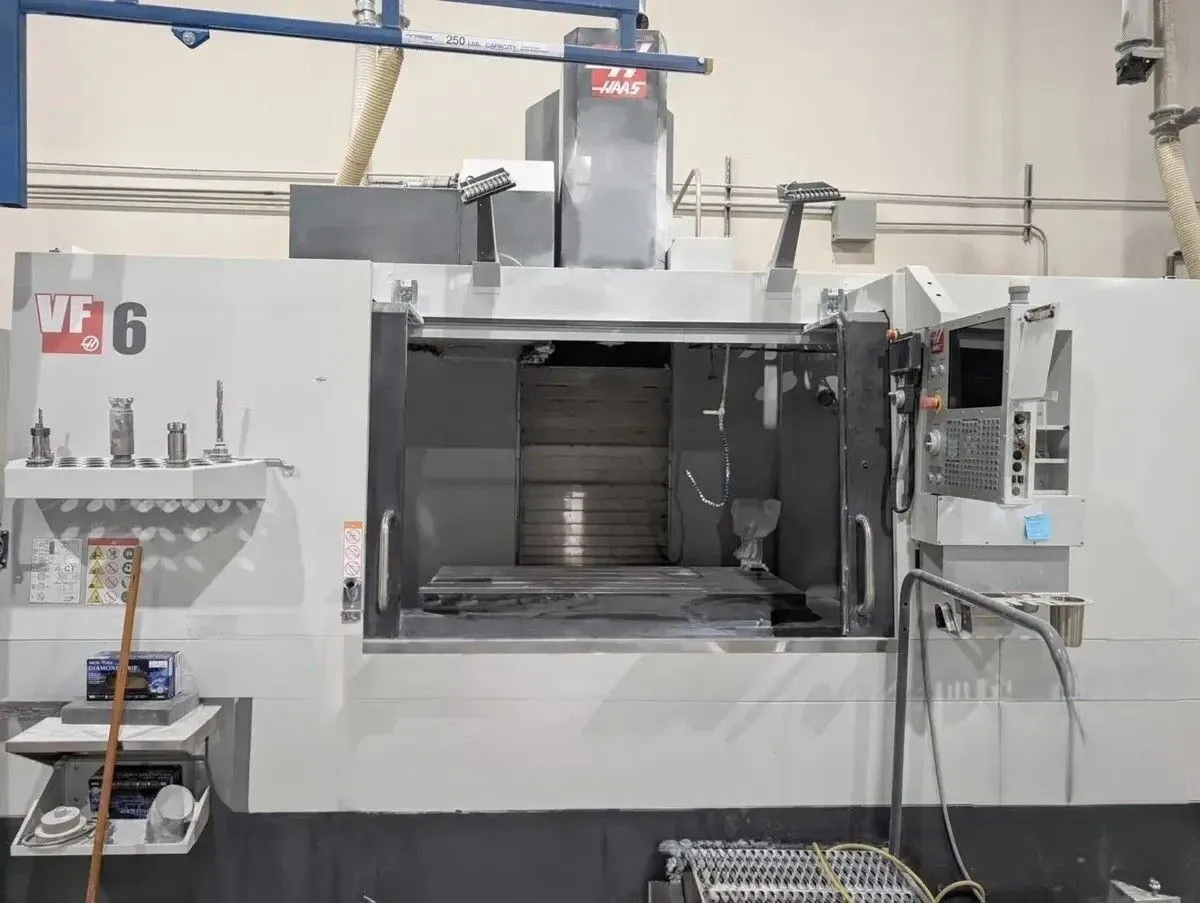

2023 HAAS VF-6/40 VERTICAL CNC MACHINING CENTER
Have one to sell?
ConditionUsed
1 available
2023 HAAS VF-6/40 Vertical CNC Machining Center with 64" x 32" x 30" travel, 10,000 rpm spindle, 30+1 tool changer, HAAS NextGen CNC, 64 MB memory, and Wi-Fi. Features include a programmable coolant nozzle and surge protection. Ideal for precision tasks.
Max Weight on Table: 4,000 lbs (1,814 kg), evenly distributed
T-Slots: 5 standard slots (5/8 in width)
Max Tool Diam (Full): 2.5 in (64 mm)
Max Tool Diam: 5.0 in (127 mm)(Adjacent Empty)
Max Tool Length: 16.0 in (406 mm)
Max Tool Weight: 12.0 lbs (5.4 kg)
Power Required: 3-Phase, 220 VAC / 70A
Air Required: 100 psi, 4 scfm
HAAS NextGen CNC CONTROL
10,000 RPM INLINE SPINDLE
30+1 HIGH-SPEED SIDE-MOUNT TOOL CHANGER
8" EXTENDED Z-AXIS CLEARANCE
4TH AXIS DRIVE & WIRING
EXPANDED 64 MB MEMORY
CHIP AUGER
THROUGH-SPINDLE COOLANT READY
PROGRAMMABLE COOLANT NOZZLE
RIGID TAPPING
HAASCONNECT
WI-FI CONNECTIVITY
M-CODE FUNCTIONS
XL REMOTE JOG HANDLE
HIGH-INTENSITY LIGHTING
WINDOWS AIR BLAST
INTERNAL HIGH-VOLTAGE ISOLATED TRANSFORMER
SURGE PROTECTION
2023 HAAS VF-6/40 Vertical CNC Machining Center with 64" x 32" x 30" travel, 10,000 rpm spindle, 30+1 tool changer, HAAS NextGen CNC, 64 MB memory, and Wi-Fi. Features include a programmable coolant nozzle and surge protection. Ideal for precision tasks.
Imperial
| X Travel | 64" |
| Y Travel | 32" |
| Z Travel | 30" |
| Spindle Speed | 10000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 28" |
| Table Size (L) | 64" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 4" - 34" |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 540 |
| Control | CNC (HAAS NextGen) |
| Dimensions | 184" X 100" X 124" |
| Weight | 25,000 lbs. |
Max Weight on Table: 4,000 lbs (1,814 kg), evenly distributed
T-Slots: 5 standard slots (5/8 in width)
Max Tool Diam (Full): 2.5 in (64 mm)
Max Tool Diam: 5.0 in (127 mm)(Adjacent Empty)
Max Tool Length: 16.0 in (406 mm)
Max Tool Weight: 12.0 lbs (5.4 kg)
Power Required: 3-Phase, 220 VAC / 70A
Air Required: 100 psi, 4 scfm
HAAS NextGen CNC CONTROL
10,000 RPM INLINE SPINDLE
30+1 HIGH-SPEED SIDE-MOUNT TOOL CHANGER
8" EXTENDED Z-AXIS CLEARANCE
4TH AXIS DRIVE & WIRING
EXPANDED 64 MB MEMORY
CHIP AUGER
THROUGH-SPINDLE COOLANT READY
PROGRAMMABLE COOLANT NOZZLE
RIGID TAPPING
HAASCONNECT
WI-FI CONNECTIVITY
M-CODE FUNCTIONS
XL REMOTE JOG HANDLE
HIGH-INTENSITY LIGHTING
WINDOWS AIR BLAST
INTERNAL HIGH-VOLTAGE ISOLATED TRANSFORMER
SURGE PROTECTION
