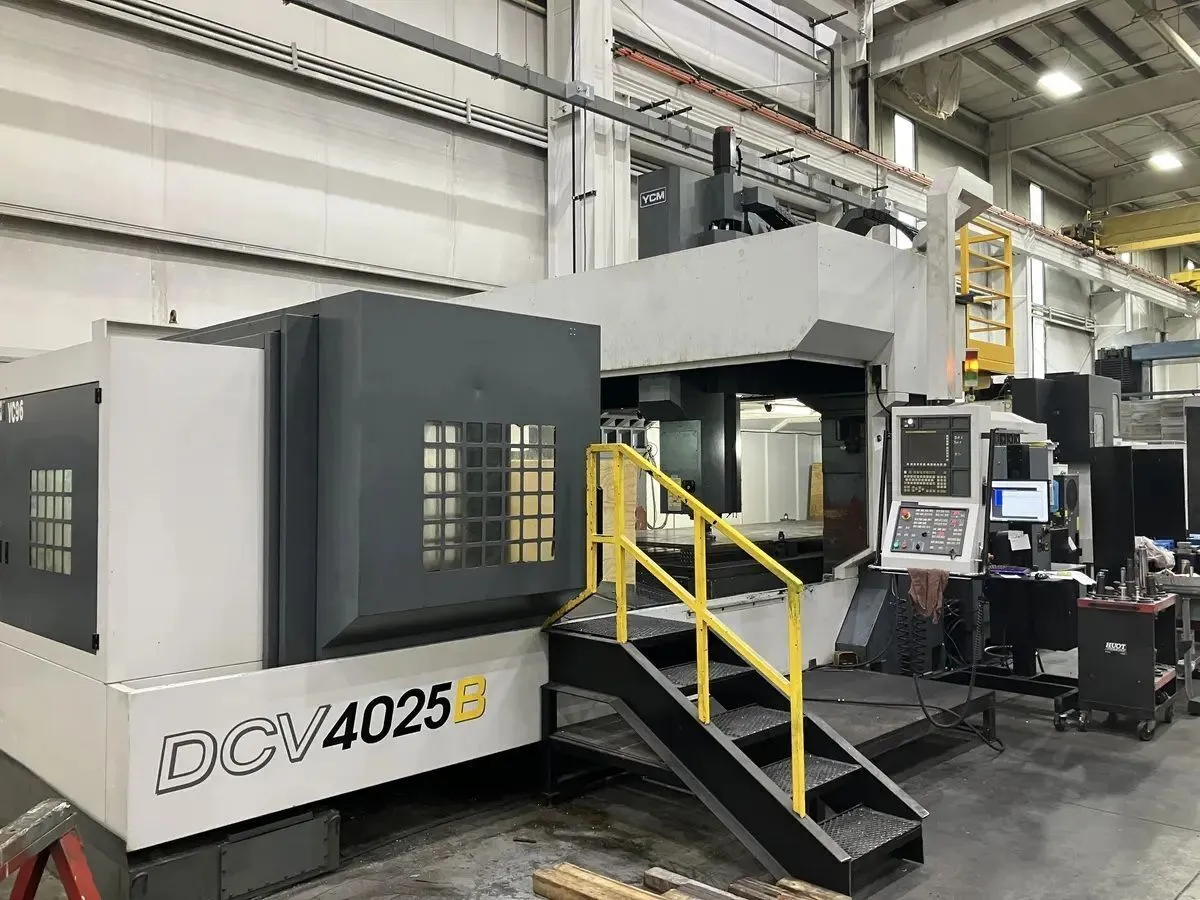

YCM DCV 4025B (2012)
Have one to sell?
ConditionUsed
1 available
Explore the YCM DCV 4025B (2012), a used vertical machining center featuring a massive 160" x 98" x 40" travel, 4500 rpm spindle speed, CAT 50 spindle taper, 120-tool ATC, coolant thru spindle, and FANUC 31i control. Ideal for high-speed machining.
Number Of Gear Ranges 2
Tool Diameter 4.92
Tool Length 13.78"
Tool Weight 44.1 lb

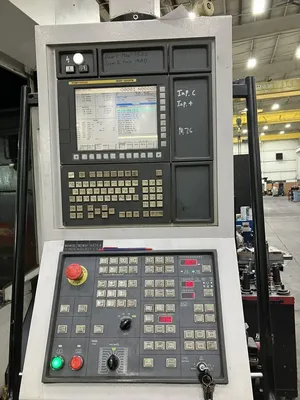

FANUC 31i CNC COLOR CONTROL
GEAR HEAD SPINDLE
COOLANT THRU SPINDLE

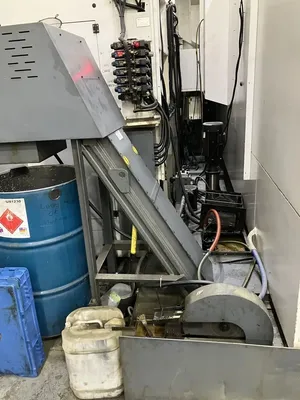

CHIP CONVEYOR
ETHERNET
HIGH-SPEED MACHINING
DATA SERVER
SPINDLE THERMAL COMPENSATION
3-ROLLER TYPE GUIDE WAY FOR Y AXIS
HARDENED AND GROUND BOX WAY FOR Z-AXIS
TOOL SELECTION RANDOM METHOD
Explore the YCM DCV 4025B (2012), a used vertical machining center featuring a massive 160" x 98" x 40" travel, 4500 rpm spindle speed, CAT 50 spindle taper, 120-tool ATC, coolant thru spindle, and FANUC 31i control. Ideal for high-speed machining.
Imperial
| X Travel | 160" |
| Y Travel | 98" |
| Z Travel | 40" |
| Spindle Speed | 4500 rpm |
| Tool Capacity (ATC) | 120 |
| Table Size (W) | 94.5" |
| Table Size (L) | 158" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | CAT 50 |
| Spindle Nose To Table Top | 7.87~47.87" |
| Coolant Thru | Yes |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 472/591/591 IPM |
| Chip Conveyor | YES |
| Control | CNC (FANUC 31i-B) |
| Dimensions | 33' x 17.34' x 14' |
| Weight | 101,412 LBS |
Number Of Gear Ranges 2
Tool Diameter 4.92
Tool Length 13.78"
Tool Weight 44.1 lb
FANUC 31i CNC COLOR CONTROL
GEAR HEAD SPINDLE
COOLANT THRU SPINDLE
CHIP CONVEYOR
ETHERNET
HIGH-SPEED MACHINING
DATA SERVER
SPINDLE THERMAL COMPENSATION
3-ROLLER TYPE GUIDE WAY FOR Y AXIS
HARDENED AND GROUND BOX WAY FOR Z-AXIS
TOOL SELECTION RANDOM METHOD
