2019 HAAS ST - 20Y
Have one to sell?
ConditionUsed
1 available
Fully Loaded 2019 Haas ST-20Y CNC Lathe – Precision, Power & Performance
Elevate your shop’s productivity with this loaded 2019 Haas ST-20Y CNC Lathe –A high-performance turning center equipped with premium upgrades, with a total package value of $195,000 when purchased new. Engineered for precision and built for versatility, this machine features Y-axis milling, live tooling, and an expansive work envelope to handle complex parts with ease. Whether you're increasing capacity or expanding capabilities, the ST-20Y delivers unmatched performance without sacrificing quality.

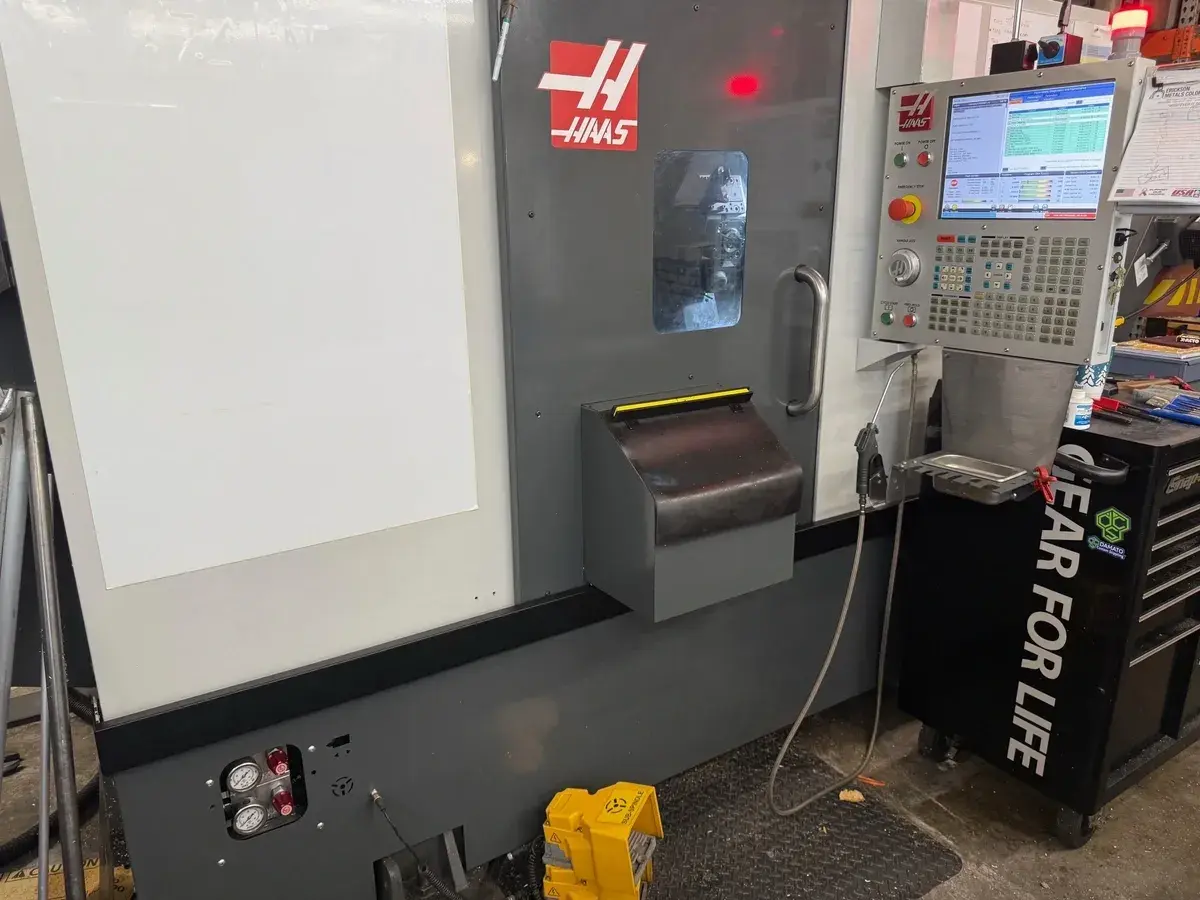

NEXTGEN HAAS CNC CONTROL
5,000RPM MAIN SPINDLE

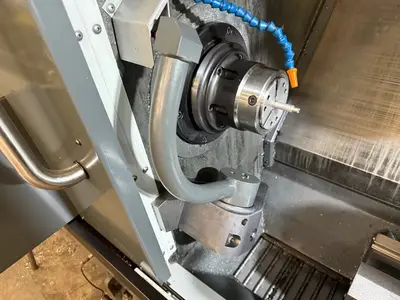

6,000RPM SUB-SPINDLE
UPGRADED 6,000RPM LIVE TOOLING SPINDLE SPEED

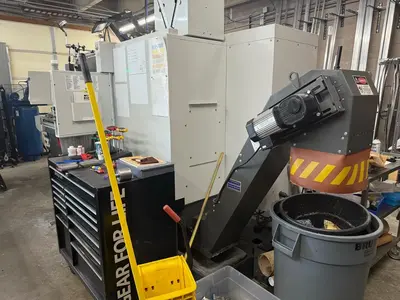

BELT-TYPE CHIP CONVEYOR

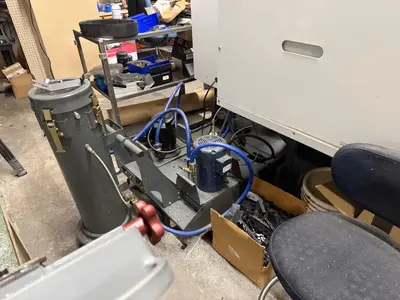

HIGH-PRESSURE COOLANT
AUXILIARY COOLANT FILTER
VISUAL PARTS PROGRAMMING SYSTEM
32 GB EXPANDED MEMORY
PARTS CATCHER

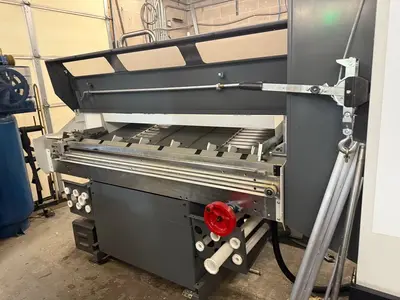

HAAS BARFEEDER
RIGID TAPPING,
SPINDLE ORIENTATION
USB/ETHERNET/WI-FI CONNECTIVITY
HAASCONNECT REMOTE MONITORING

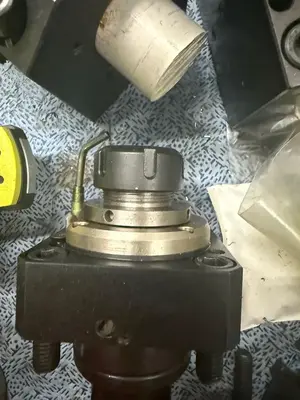

***ROYAL COLLET CHUCKS & LIVE TOOLING AVAILABLE FOR AN ADDITIONAL COST***
Fully Loaded 2019 Haas ST-20Y CNC Lathe – Precision, Power & Performance
Elevate your shop’s productivity with this loaded 2019 Haas ST-20Y CNC Lathe –A high-performance turning center equipped with premium upgrades, with a total package value of $195,000 when purchased new. Engineered for precision and built for versatility, this machine features Y-axis milling, live tooling, and an expansive work envelope to handle complex parts with ease. Whether you're increasing capacity or expanding capabilities, the ST-20Y delivers unmatched performance without sacrificing quality.
Imperial
| Maximum Swing | 21" |
| Max Turning Diameter | 12" |
| Main Spindle Bore/Max Bar Capacity | 2.5"/ 2.0" |
| Tail Stock/Sub Spindle | SUBSPINDLE |
| Distance Between Centers | 21" |
| Maximum Cutting Length | 21" |
| X-Axis Travel (X1, X2, X3) | 8.4" |
| Z-Axis Travel (Z1, Z2, Z3) | 22.5 |
| Y-Axis Travel (Y1, Y2, Y3) | ± 2.0" |
| C-Axis Indexing (1, 2) | FULL C-AXIS |
| Main Spindle Chuck Size | 8.3" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 2.5" |
| Main Spindle Maximum Bar Work | 2" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 20 |
| Sub Spindle/2nd Spindle Chuck Type | Collet |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |

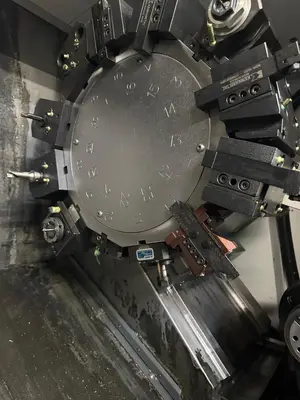

| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Bar Feed | Yes |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Control | CNC (HAAS NextGen) |

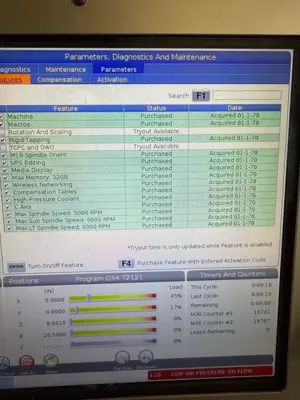

NEXTGEN HAAS CNC CONTROL
5,000RPM MAIN SPINDLE
6,000RPM SUB-SPINDLE
UPGRADED 6,000RPM LIVE TOOLING SPINDLE SPEED
BELT-TYPE CHIP CONVEYOR
HIGH-PRESSURE COOLANT
AUXILIARY COOLANT FILTER
VISUAL PARTS PROGRAMMING SYSTEM
32 GB EXPANDED MEMORY
PARTS CATCHER
HAAS BARFEEDER
RIGID TAPPING,
SPINDLE ORIENTATION
USB/ETHERNET/WI-FI CONNECTIVITY
HAASCONNECT REMOTE MONITORING
***ROYAL COLLET CHUCKS & LIVE TOOLING AVAILABLE FOR AN ADDITIONAL COST***
