2022 MAKINO F5 PRO 6...MULTIPLE MACHINES AVAILABLE
Have one to sell?
ConditionUsed
1 available

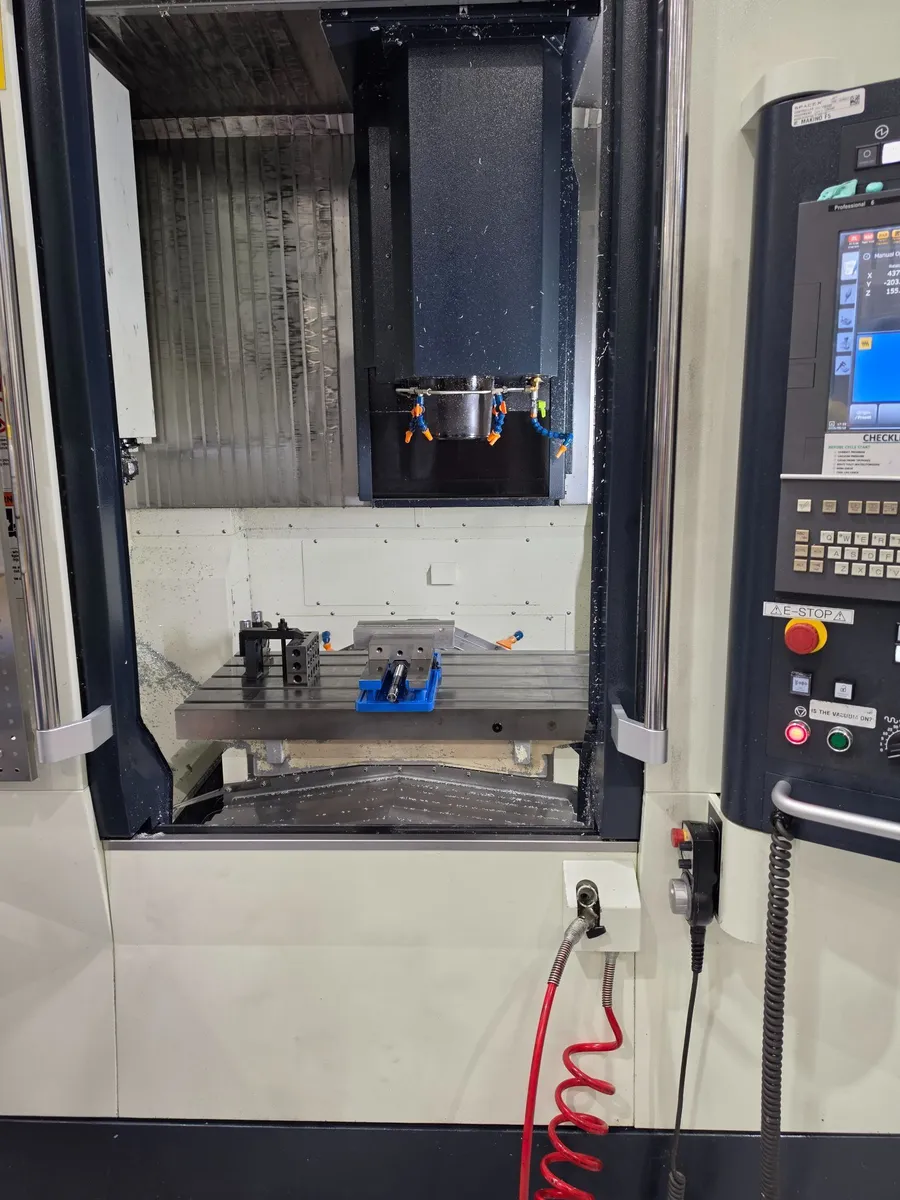

MAKINO F5 PRO 6 Vertical Machining Center, 2022, used. Ideal for precision and efficient machining tasks. Integrate cutting-edge technology into your operations with this high-quality machining tool.
Standard Features:
20,000 RPM, HSK-A63 Spindle (Optional: 30,000 RPM, HSK-F63)
Scale Feedback for X-, Y- and Z-Axes
30-Tool Magazine
ATC Shutter
Automatic Air Blow
Nozzle Coolant

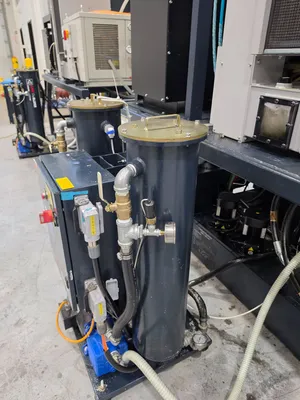

Rear Coolant Tank with Chip Augers

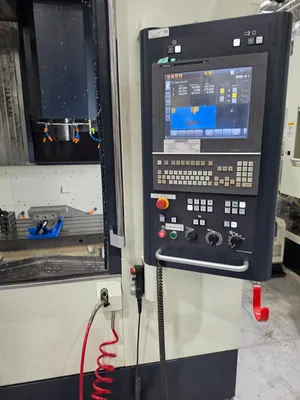

Professional 6 Control
Super Geometric Intelligence Control (SGI.5)
Data Center (1 GB)
Part Program Storage (2 GB)
Program Numbers (1000)
Rigid Tapping
Centralized Auto Grease
Fully Enclosed Splash Guard
Portable Manual Pulse Generator
Air Dryer
Helical Interpolation
Programming Data Input (G10)
Tool Offset Pairs (64 Total)
Tool Offset Memory C
Cutter Compensation C
Run Hour Meter Package
MAKINO F5 PRO 6 Vertical Machining Center, 2022, used. Ideal for precision and efficient machining tasks. Integrate cutting-edge technology into your operations with this high-quality machining tool.
Imperial
| X Travel | 35.4" |
| Y Travel | 19.6" |
| Z Travel | 17.7" |
| Spindle Speed | 20000 rpm |
| Tool Capacity (ATC) | 30 |
| Table Size (W) | 19.6" |
| Table Size (L) | 39.3" |
| Main Spindle Motor | 20 hp |
| Spindle Taper | HSK 63 |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 787 |
| Chip Conveyor | Y |
| Control | CNC (Professional 6 Control) |
| Dimensions | FLOOR SPACE 101"W X 124"D X 120.7H |
| Weight | 16,535 LBS |
Standard Features:
20,000 RPM, HSK-A63 Spindle (Optional: 30,000 RPM, HSK-F63)
Scale Feedback for X-, Y- and Z-Axes
30-Tool Magazine
ATC Shutter
Automatic Air Blow
Nozzle Coolant
Rear Coolant Tank with Chip Augers
Professional 6 Control
Super Geometric Intelligence Control (SGI.5)
Data Center (1 GB)
Part Program Storage (2 GB)
Program Numbers (1000)
Rigid Tapping
Centralized Auto Grease
Fully Enclosed Splash Guard
Portable Manual Pulse Generator
Air Dryer
Helical Interpolation
Programming Data Input (G10)
Tool Offset Pairs (64 Total)
Tool Offset Memory C
Cutter Compensation C
Run Hour Meter Package
