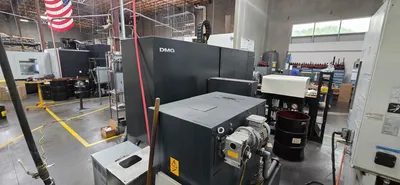

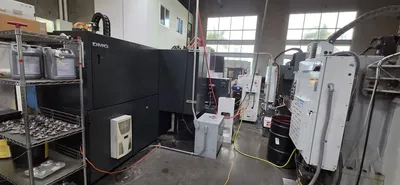

2012 DMG MORI DMU 50 5-AXIS CNC VERTICAL MACHINING CENTER - 18,000 RPM MILL - 2 AVAILABLE
Have one to sell?
ConditionUsed
1 available
2012 DMG MORI DMU 50 GEN II 5-axis CNC machining center, features 19.7"x17.7"x15.7" travel, 18,000 rpm spindle, 60-tool ATC, and HEIDENHAIN control. Table size 19.7"x24.6". Includes chip conveyor, manuals, and tool probe.
Max Weight on Table: 661 lbs
Max Tool Size: 3.14″ X 11.81″
Max Tool Weight: 13.2 lbs.
Air Required: 80 psi, 4 scfm
Power: 400 v / 60 hz / 34 kva
HEIDENHAIN CNC CONTROL
CHIP CONVEYOR
ALL AVAILABLE MANUALS
2012 DMG MORI DMU 50 GEN II 5-axis CNC machining center, features 19.7"x17.7"x15.7" travel, 18,000 rpm spindle, 60-tool ATC, and HEIDENHAIN control. Table size 19.7"x24.6". Includes chip conveyor, manuals, and tool probe.
Imperial
| X Travel | 19.7" |
| Y Travel | 17.7" |
| Z Travel | 15.7" |
| Spindle Speed | 18000 rpm |
| Tool Capacity (ATC) | 60 |
| Table Size (W) | 19.7" |
| Table Size (L) | 24.6" |
| Main Spindle Motor | 27.2 hp |
| Spindle Taper | HSK 63 |
| Table Type C-Axis Table Rotation | .001 N/C Contouring 360000 Degrees |
| Tool Probe/Auto Tool Length Measurement | Yes |

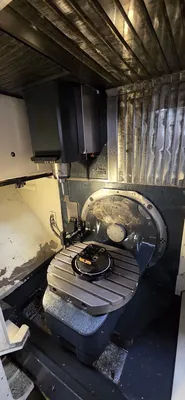

| B-Axis (Table Swivel) | -35° +110° ( Table Tilt ) |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1181 IPM |
| Chip Conveyor | YES |

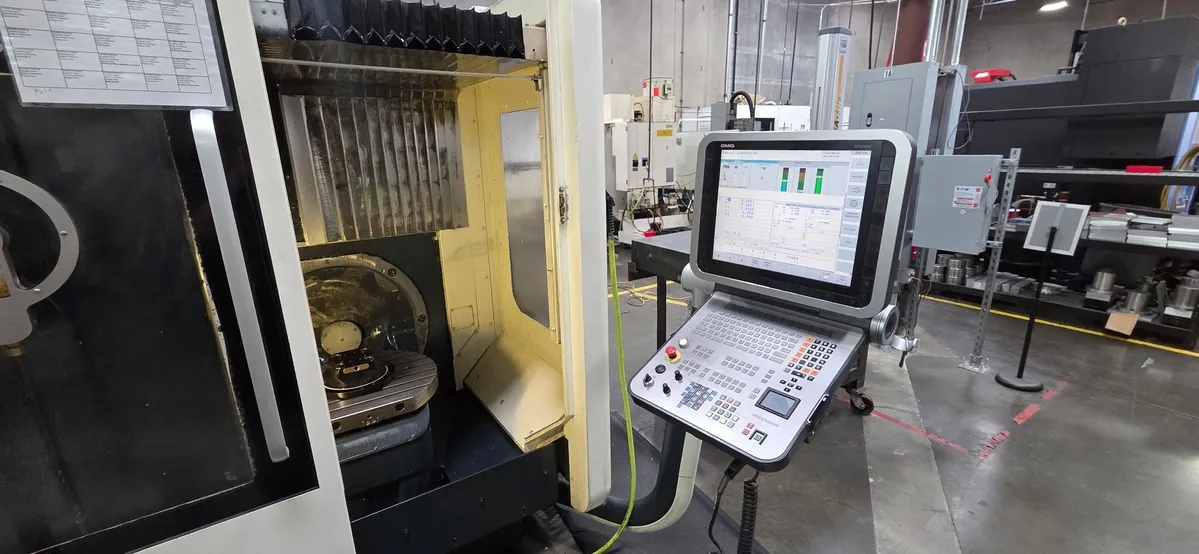

| Control | CNC (Heidenhain iTNC-530/CRT) |
| Dimensions | 216.5″ x 135″ x 106″ High Approx. |
| Weight | 10,604 LBS |
Max Weight on Table: 661 lbs
Max Tool Size: 3.14″ X 11.81″
Max Tool Weight: 13.2 lbs.
Air Required: 80 psi, 4 scfm
Power: 400 v / 60 hz / 34 kva
HEIDENHAIN CNC CONTROL
CHIP CONVEYOR
ALL AVAILABLE MANUALS
