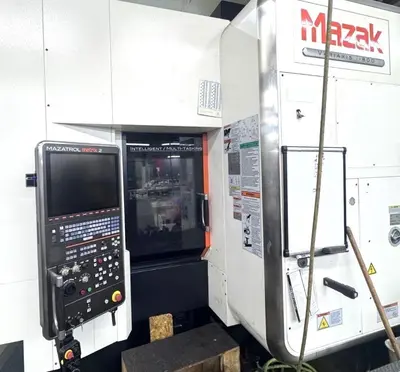

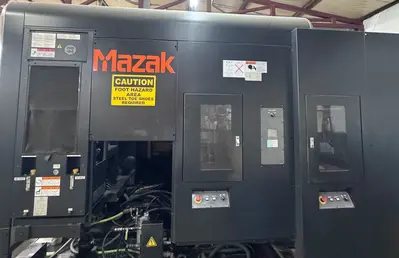

MAZAK VARIAXIS i-800 MULTI AXIS VERTICAL WITH PALLET CHANGER
Have one to sell?
ConditionUsed
1 available
Used 2014 MAZAK VARIAXIS i-800 vertical machining center with pallet changer. Features 28.74"x33.46"x22.05" travel, 10,000 RPM spindle, and 80-tool capacity. Equipped with MAZATROL MATRIX 2 CNC, tool probes, chip conveyor, and coolant system.
A-Axis (Tilt Range): -120° to +30° (Trunnion tilt)
C-Axis (Rotation Range): 360° full contouring (0.001° indexing minimum)
Pallet Size: 31" x 24" (2) Pallet
Max Workpiece Diameter: 39.37"
(Note: limited to 28.74" / 730 mm if equipped with a 2-pallet changer)
Max Workpiece Height: 19.69" (500 mm)
Max Table/Pallet Load: 2,200 lbs.
Spindle Speed: Standard 10,000 RPM (High-torque configuration).
Spindle Motor: 50 hp/40 hp continuous.
Spindle Nose Clearance: Compact nose geometry designed to handle shorter,
more rigid toolholders.
Tool Changer & Feedrates
Tool Storage Capacity: 80 ATC
Tool Exchange Speed: Approx. 4.3 seconds chip-to-chip.
Max Tool Weight: 44 lbs.
Max Tool Length: 16.34"
Rapid Traverse Rates (X/Y/Z) 1,654 ipm (42 m/min).Control,
Machine Weight: ~43,297 lbs to 46,297 lbs (19,639 kg to 21,000 kg)
depending on ATC magazine type and pallet systems.
Coolant System: Factory configurations typically feature standard through-spindle coolant capability, often paired with high-pressure systems (ranging from 230 to 1,000 psi)
Utilization: 17-4 SS & 6061 Aluminum

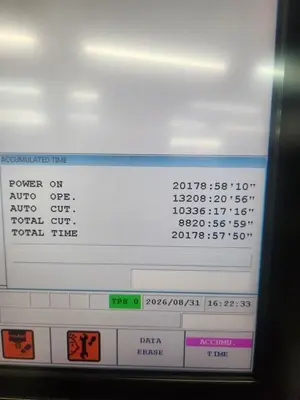

Hours: 8820 Cut Hours
MAZATROL MATRIX 2 CNC CONTROL

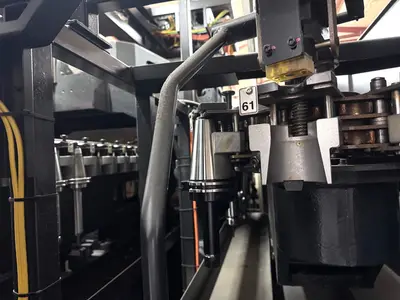

80 POSITION TOOL CHANGER
50 TAPER

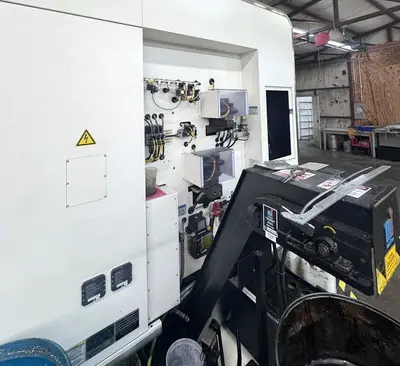

CHIP CONVEYOR WITH INTEGRATED COOLANT FILTRATION THRU SPINDLE COOLANT PSI RATING 300 PSI

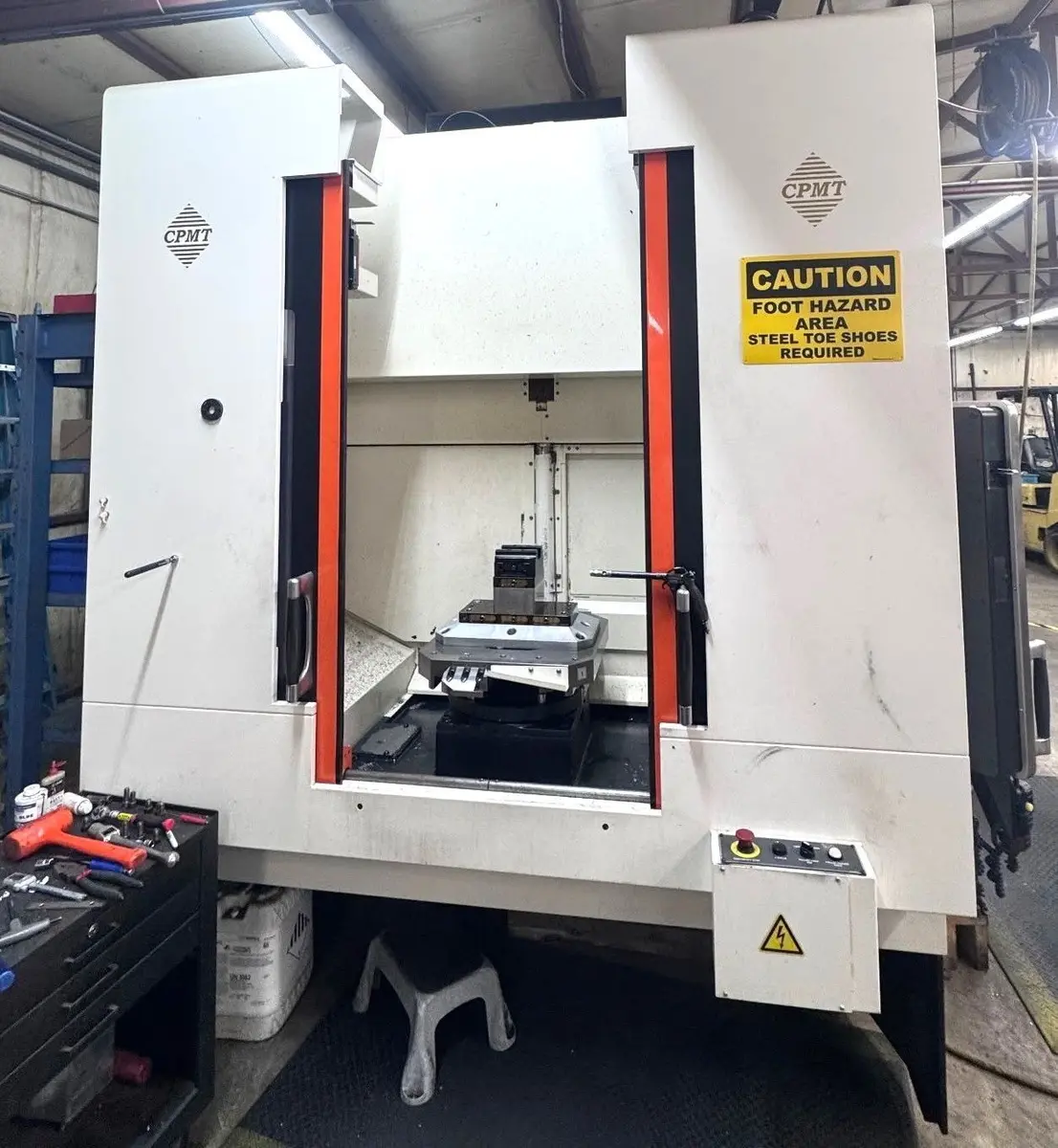

(2) PALLET
MANUAL PULSE GENERATOR REMOTE JOG HANDWHEEL
Used 2014 MAZAK VARIAXIS i-800 vertical machining center with pallet changer. Features 28.74"x33.46"x22.05" travel, 10,000 RPM spindle, and 80-tool capacity. Equipped with MAZATROL MATRIX 2 CNC, tool probes, chip conveyor, and coolant system.
Imperial
| X Travel | 28.74" |
| Y Travel | 33.46" |
| Z Travel | 22.05" |
| Spindle Speed | 10000 rpm |
| Tool Capacity (ATC) | 80 |
| Table Size (W) | 24" |
| Table Size (L) | 31" |
| Main Spindle Motor | 50 hp |
| Spindle Taper | CAT 50 |
| Spindle Nose To Table Top | 9.06” TO 31.10” (POSITIONED HORIZONTALLY)/ 7.09” TO 29.13” (POSITIONED VERTICALLY) |
| Table Type A-Axis Trunnion Tilt Range | -120° to +30° (Indexing in units of 0.0001Deg) |
| Table Type C-Axis Table Rotation | N/C Contouring |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 300 psi |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Multiple Pallets | Yes |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1,654 / 1654/ 1654 IPM |
| Chip Conveyor | YES |
| Control | CNC (Mazatrol Matrix 2) |
| Dimensions | 235" x 140" x 141 |
| Weight | 49,500 LBS |
A-Axis (Tilt Range): -120° to +30° (Trunnion tilt)
C-Axis (Rotation Range): 360° full contouring (0.001° indexing minimum)
Pallet Size: 31" x 24" (2) Pallet
Max Workpiece Diameter: 39.37"
(Note: limited to 28.74" / 730 mm if equipped with a 2-pallet changer)
Max Workpiece Height: 19.69" (500 mm)
Max Table/Pallet Load: 2,200 lbs.
Spindle Speed: Standard 10,000 RPM (High-torque configuration).
Spindle Motor: 50 hp/40 hp continuous.
Spindle Nose Clearance: Compact nose geometry designed to handle shorter,
more rigid toolholders.
Tool Changer & Feedrates
Tool Storage Capacity: 80 ATC
Tool Exchange Speed: Approx. 4.3 seconds chip-to-chip.
Max Tool Weight: 44 lbs.
Max Tool Length: 16.34"
Rapid Traverse Rates (X/Y/Z) 1,654 ipm (42 m/min).Control,
Machine Weight: ~43,297 lbs to 46,297 lbs (19,639 kg to 21,000 kg)
depending on ATC magazine type and pallet systems.
Coolant System: Factory configurations typically feature standard through-spindle coolant capability, often paired with high-pressure systems (ranging from 230 to 1,000 psi)
Utilization: 17-4 SS & 6061 Aluminum
Hours: 8820 Cut Hours
MAZATROL MATRIX 2 CNC CONTROL
80 POSITION TOOL CHANGER
50 TAPER
CHIP CONVEYOR WITH INTEGRATED COOLANT FILTRATION THRU SPINDLE COOLANT PSI RATING 300 PSI
(2) PALLET
MANUAL PULSE GENERATOR REMOTE JOG HANDWHEEL
