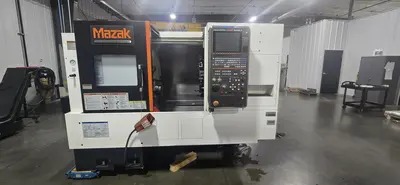

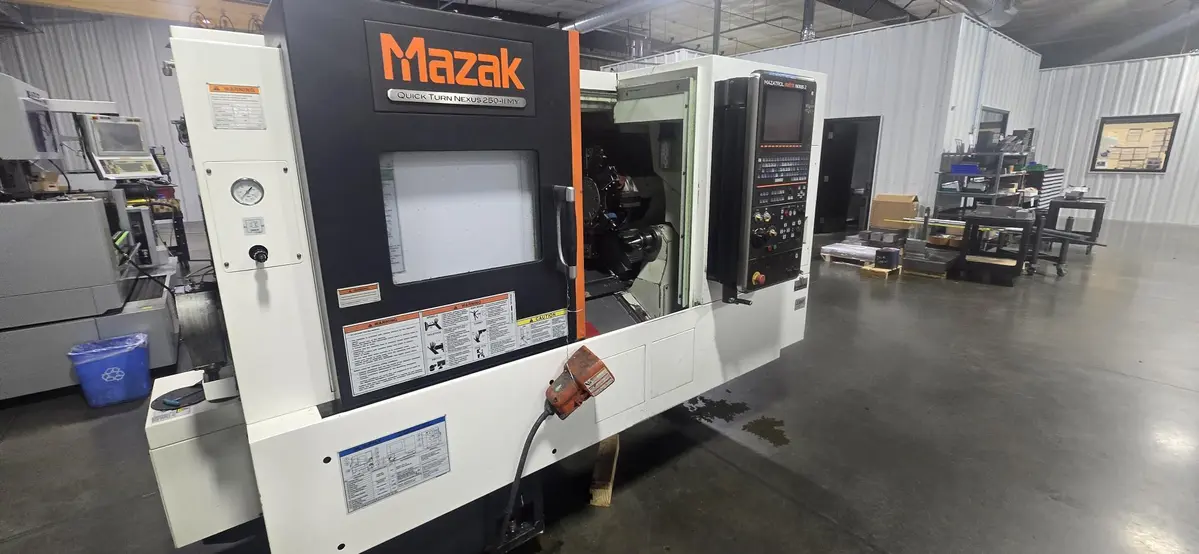

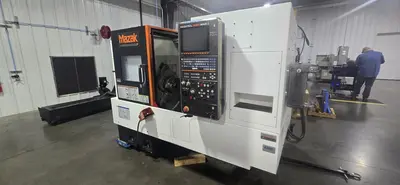

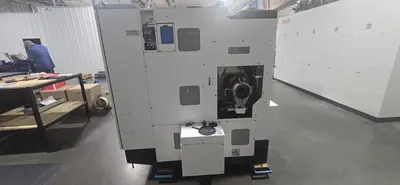

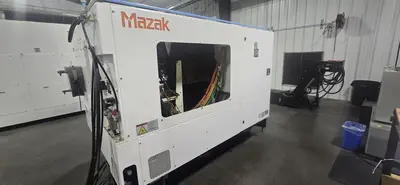

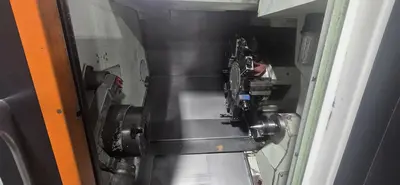

MAZAK QTN 250MY-II MULTI AXIS LATHES WITH MILLING AND Y AXIS (2013)
Have one to sell?
ConditionUsed
1 available
MAZAK NEXUS QTN 250MYII CNC Lathe, 2013 model, features Y-axis control, milling, 26.5" swing over bed, 22.7" turning length, 10" chuck, 4,000 RPM spindle, 12-station turret, and a 19" touchscreen. Equipped with an auto tool eye, rigid tap, and chip conveyor.
SPINDLE NOSE A2 - 8
TURRET ROTARY TOOL HORSEPOWER 10 hp
TAILSTOCK QUILL DIAMETER 3.94"
TAILSTOCK TAPER MT 4
TAILSTOCK QUILL TRAVEL 4.72"
PROGRAMMABLE TAILSTOCK 'Yes'
MAZATROL MATRIX 2 CNC COLOR CONTROL
EIA/ISO INPUT FUNCTION
Y AXIS CONTROL
600 VARIABLE USER MACRO
SEQUENCE COMPARISON STOP FUNCTION
AUTO TOOL EYE
RIGID TAP ON THE MILLING HEAD
CHIP CONVEYOR SIDE DISCHARGE
STANDARD ROTARY HEADS, AND STATIC HOLDERS
ALL AVAILABLE MANUALS
C-AXIS POSITIONING 0.0001 DEG.
15" COLOR LCD (TOUCH SCREEN)
PROGRAMMABLE TAILSTOCK
MAZAK TAPPING/BORING TORNADO (G130)
THREAD CUTTING FUNCTION, EIA PATTERN CYCLE
10" 3-JAW HYDRAULIC CHUCK SYSTEM
MAZAK NEXUS QTN 250MYII CNC Lathe, 2013 model, features Y-axis control, milling, 26.5" swing over bed, 22.7" turning length, 10" chuck, 4,000 RPM spindle, 12-station turret, and a 19" touchscreen. Equipped with an auto tool eye, rigid tap, and chip conveyor.
Imperial
| Maximum Swing | 26.5" |
| Max Turning Diameter | 14.76" |
| Main Spindle Bore/Max Bar Capacity | 3.5"/ 3.0" |
| Tail Stock/Sub Spindle | TAILSTOCK |
| Distance Between Centers | 24" |
| Maximum Cutting Length | 19.85" |
| X-Axis Travel (X1, X2, X3) | 9" |
| Z-Axis Travel (Z1, Z2, Z3) | 22.76" |
| Y-Axis Travel (Y1, Y2, Y3) | +/- 2" (4") |
| C-Axis Indexing (1, 2) | 0.001 |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.5" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35 HP |
| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 6000 |
| Turret Rotary Tool Horse Power 1, 2 | 10 |
| Parts Catcher | No |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Control | CNC (Mazatrol Matrix 2) |
| Weight | 11,530 LBS |
SPINDLE NOSE A2 - 8
TURRET ROTARY TOOL HORSEPOWER 10 hp
TAILSTOCK QUILL DIAMETER 3.94"
TAILSTOCK TAPER MT 4
TAILSTOCK QUILL TRAVEL 4.72"
PROGRAMMABLE TAILSTOCK 'Yes'
MAZATROL MATRIX 2 CNC COLOR CONTROL
EIA/ISO INPUT FUNCTION
Y AXIS CONTROL
600 VARIABLE USER MACRO
SEQUENCE COMPARISON STOP FUNCTION
AUTO TOOL EYE
RIGID TAP ON THE MILLING HEAD
CHIP CONVEYOR SIDE DISCHARGE
STANDARD ROTARY HEADS, AND STATIC HOLDERS
ALL AVAILABLE MANUALS
C-AXIS POSITIONING 0.0001 DEG.
15" COLOR LCD (TOUCH SCREEN)
PROGRAMMABLE TAILSTOCK
MAZAK TAPPING/BORING TORNADO (G130)
THREAD CUTTING FUNCTION, EIA PATTERN CYCLE
10" 3-JAW HYDRAULIC CHUCK SYSTEM
