DOOSAN PUMA 2600SY MULTI AXIS LATHE WITH SUB-SPINDLE AND Y AXIS
Have one to sell?
ConditionUsed
1 available
2011 DOOSAN PUMA 2600SY multi-axis CNC lathe with sub-spindle and Y-axis. Features a FANUC i-CNC control, 24-position turret, live tooling, parts catcher, chip conveyor, and 10-inch and 8-inch hydraulic chucks. Used.
SPINDLE NOSE 1 A2 -8
SPINDLE NOSE 2 A2- 6

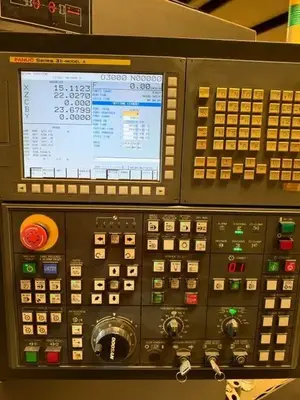

FANUC I CNC COLOR CONTROL
10" 3-JAW HYDRAULIC CHUCK MAIN SPINDLE

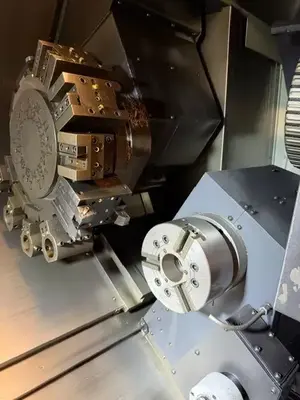

8" 3- JAW HYDRAULIC CHUCK ON SUB SPINDLE
AUTO PARTS CATCHER AND CONVEYOR
CHIP CONVEYOR

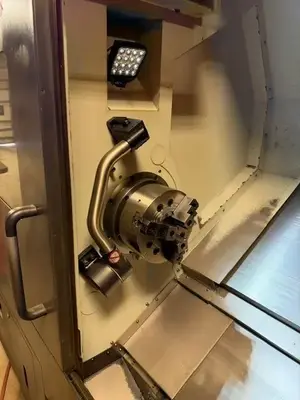

AUTO TOOL PRESETTER
(2) OD LIVE HOLDERS
(1) ID LIVE HOLDER
ALL STANDARD STATIC TOOL HOLDERS & WEDGE BLOCKS
2011 DOOSAN PUMA 2600SY multi-axis CNC lathe with sub-spindle and Y-axis. Features a FANUC i-CNC control, 24-position turret, live tooling, parts catcher, chip conveyor, and 10-inch and 8-inch hydraulic chucks. Used.
Imperial
| Maximum Swing | 30.7" |
| Max Turning Diameter | 14.8" |
| Main Spindle Bore/Max Bar Capacity | 3.4"/ 3.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Cutting Length | 28.5" |
| X-Axis Travel (X1, X2, X3) | 10.2" |
| Z-Axis Travel (Z1, Z2, Z3) | 32.7" |
| Y-Axis Travel (Y1, Y2, Y3) | 4.1" |
| C-Axis Indexing (1, 2) | .001/ .001 INDEXING |
| W-Axis Travel Sub Spindle | 29 in |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Hydraulic |
| Main Spindle Bore Diameter | 3.34" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 3,500 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 30 |
| Sub Spindle/2nd Spindle Chuck Size | 8 |
| Sub Spindle/2nd Spindle Bore Size | 2.0" |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 5,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 |
| Turret Tool Positions 1, 2 | 24 |
| Turret Rotary Tool Spindle Speed 1, 2 | 5000 |
| Turret Rotary Tool Horse Power 1, 2 | 7.5 |
| Bar Feed | No |
| Parts Catcher | Yes |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| Number of Available Live Tool Holders | 4 |
| Rapid Traverse, X-Axis | 1181 |
| Rapid Traverse, Y-Axis | 393 |
| Rapid Traverse, Z-Axis | 1181 |
| Control | CNC (DOOSAN FANUC 31i) |
| Weight | 16,100 LBS |
SPINDLE NOSE 1 A2 -8
SPINDLE NOSE 2 A2- 6
FANUC I CNC COLOR CONTROL
10" 3-JAW HYDRAULIC CHUCK MAIN SPINDLE
8" 3- JAW HYDRAULIC CHUCK ON SUB SPINDLE
AUTO PARTS CATCHER AND CONVEYOR
CHIP CONVEYOR
AUTO TOOL PRESETTER
(2) OD LIVE HOLDERS
(1) ID LIVE HOLDER
ALL STANDARD STATIC TOOL HOLDERS & WEDGE BLOCKS
