MAZAK QTN 250-II
Have one to sell?
ConditionUsed
1 available

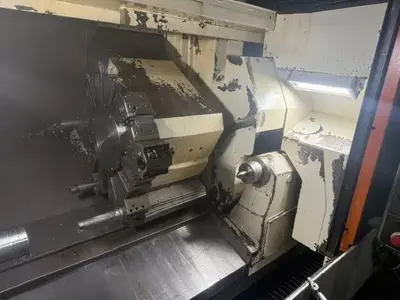

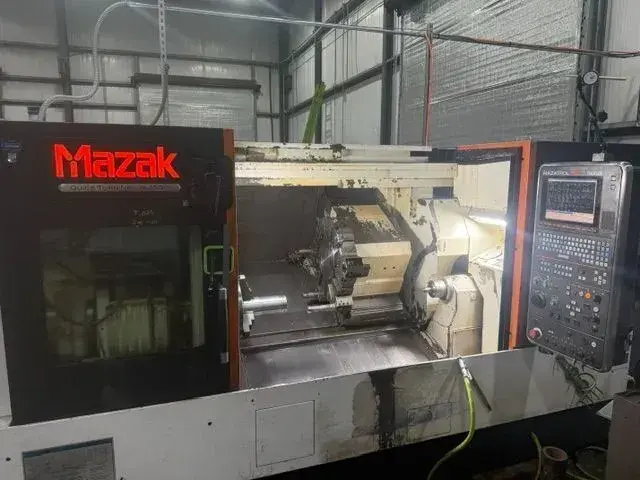

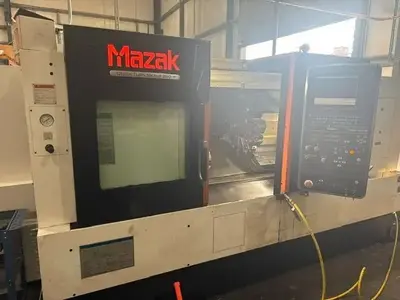

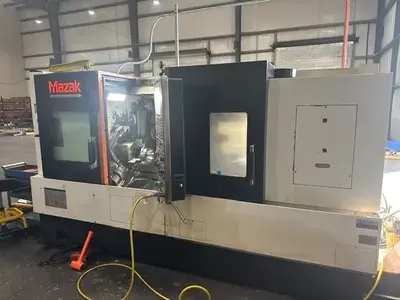

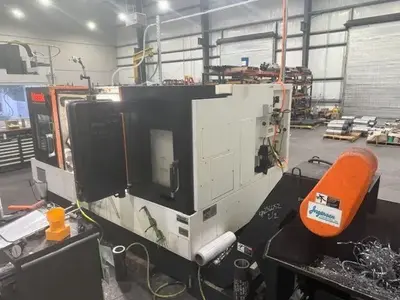

2012 MAZAK QTN 250-II used 2-axis CNC lathe with MAZATROL MATRIX control, 35 hp spindle, 10" 3-jaw hydraulic chuck, 12-position turret, tailstock and side-discharge chip conveyor. Max turning diameter: 13.78"; machining length: 38.733".
SPINDLE MOTOR 35 / 30 (30 MIN/CONT.)
SPINDLE NOSE A2-8
TURRET TYPE DRUM TURRET
TOOL SHANK HEIGHT 1"
BORING BAR SHANK DIAMETER 1.5"
TURRET INDEX TIME .2 SEC (ONE POSITION)
RAPID TRAVERSE RATES X-AXIS 1181 IPM
RAPID TRAVERSE RATES Z-AXIS 1299 IPM
TAILSTOCK TRAVEL 20.75"
TAILSTOCK CENTER MT NO.5
COOLANT TANK CAPACITY 40 GAL

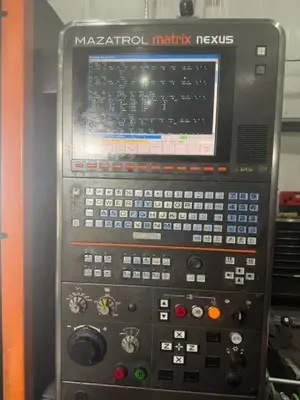

MAZATROL MATRIX CNC CONTROL
EIA/ISO INPUT FUNCTION
600 VARIABLE USER MACRO
SEQUENCE COMPARISON STOP FUNCTION
HYDRAULIC PRESSURE INTERLOCK
AUTO TOOL EYE
TRANSFORMER

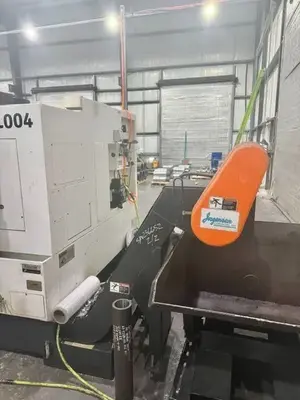

CHIP CONVEYOR SIDE DISCHARGE
MAZATROL MATRIX CNC CONTROL
STANDARD ROTARY HEADS, AND STATIC HOLDERS
ALL AVAILABLE MANUALS

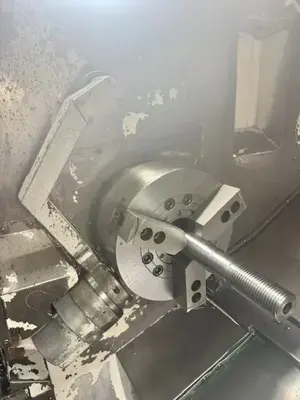

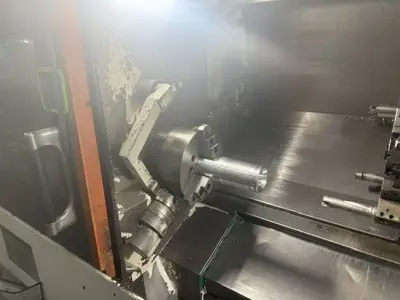

10" 3-JAW HYDRAULIC CHUCK
2012 MAZAK QTN 250-II used 2-axis CNC lathe with MAZATROL MATRIX control, 35 hp spindle, 10" 3-jaw hydraulic chuck, 12-position turret, tailstock and side-discharge chip conveyor. Max turning diameter: 13.78"; machining length: 38.733".
Imperial
| Max. Swing | 24" |
| Max Turning Diameter | 13.78" |
| Spindle Bore/Max Bar Capacity | 3.46"/ 3.0" |
| Z Travel | 40.25" |
| X Travel | 7.5" |
| Machining Length | 38.733" |
| Chuck Size | 10" |
| Chuck Type | Hydraullic |
| Spindle Motor | 35 hp |
| Spindle Speeds (RPM) | 4000 |
| Spindle Bore/Bar Capacity | 3.46 in |
| Max. Bar Capacity | 3" |
| Turret Tool Positions | 12 |
| Tailstock | Yes |
| Chip Conveyor | Yes |
| Chip Conveyor | Side |
| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 98.4" X 70.1"X 72.4 |
| Weight | 10,560 LBS |
SPINDLE MOTOR 35 / 30 (30 MIN/CONT.)
SPINDLE NOSE A2-8
TURRET TYPE DRUM TURRET
TOOL SHANK HEIGHT 1"
BORING BAR SHANK DIAMETER 1.5"
TURRET INDEX TIME .2 SEC (ONE POSITION)
RAPID TRAVERSE RATES X-AXIS 1181 IPM
RAPID TRAVERSE RATES Z-AXIS 1299 IPM
TAILSTOCK TRAVEL 20.75"
TAILSTOCK CENTER MT NO.5
COOLANT TANK CAPACITY 40 GAL
MAZATROL MATRIX CNC CONTROL
EIA/ISO INPUT FUNCTION
600 VARIABLE USER MACRO
SEQUENCE COMPARISON STOP FUNCTION
HYDRAULIC PRESSURE INTERLOCK
AUTO TOOL EYE
TRANSFORMER
CHIP CONVEYOR SIDE DISCHARGE
MAZATROL MATRIX CNC CONTROL
STANDARD ROTARY HEADS, AND STATIC HOLDERS
ALL AVAILABLE MANUALS
10" 3-JAW HYDRAULIC CHUCK
