HAAS VF-3SS VERTICAL (2011)
Have one to sell?
ConditionUsed
1 available

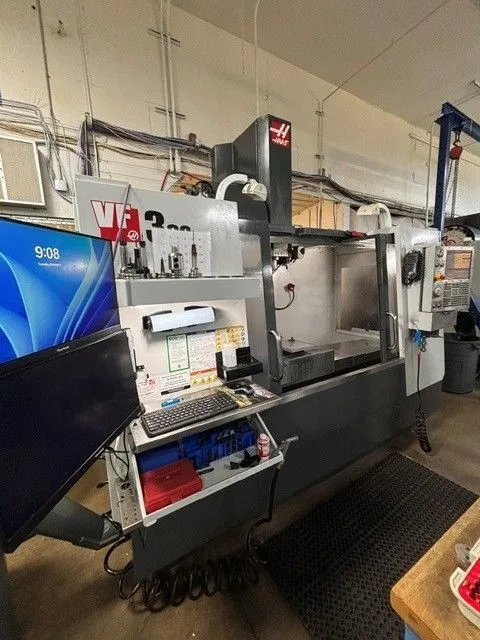

2011 HAAS VF-3SS vertical machining center with 40" x 20" x 25" travels, 12,000-rpm, 30-hp spindle, 24-position tool changer, fourth- and fifth-axis devices, probing, through-spindle coolant, chip auger and HAAS CNC control. Used.
HAAS CNC CONTROL
EXPANDED MEMORY
BRUSHLESS A AXIS (FOURTH AXIS) DEVICE
BRUSHLESS B AXIS (FIFTH AXIS) DEVICE
YASKAWA SPINDLE MOTOR (12K)
RIGID TAPPING (R-TAP)
34-POSITION COOLANT SPIGOT (P-COOL)
COORDINATE ROTATION & SCALING (COORD)
MACROS (MACRO)
CHIP AUGER
TSC OR TTC (THRU SPINDLE/TOOL COOLANT)
LINEAR SCALES
40 TAPER/24 POCKET SERVO SMTC
M19 SPINDLE ORIENTATION P AND R CODES (S
SECOND MOCON BOARD
INTUITIVE PROGRAMMING SYSTEM (IPS)
WIRELESS INTUITIVE PROBING SYSTEM
POWER FAILURE MODULE (EPFDM)
MIN LUBE SYSTEM GREASE RESERVOIR(TYPE 3)
HIGH INTENSITY LIGHT (HIL)
BEARINGLESS TSC UNION
2011 HAAS VF-3SS vertical machining center with 40" x 20" x 25" travels, 12,000-rpm, 30-hp spindle, 24-position tool changer, fourth- and fifth-axis devices, probing, through-spindle coolant, chip auger and HAAS CNC control. Used.
Imperial
| X Travel | 40" |
| Y Travel | 20" |
| Z Travel | 25" |
| Spindle Speed | 12000 rpm |
| Tool Capacity (ATC) | 24 |
| Table Size (W) | 48" |
| Table Size (L) | 18" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 4" - 29" |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1400 |
| Control | CNC |
| Dimensions | 122" X 93" X 111" |
| Weight | 13,500 LBS |
HAAS CNC CONTROL
EXPANDED MEMORY
BRUSHLESS A AXIS (FOURTH AXIS) DEVICE
BRUSHLESS B AXIS (FIFTH AXIS) DEVICE
YASKAWA SPINDLE MOTOR (12K)
RIGID TAPPING (R-TAP)
34-POSITION COOLANT SPIGOT (P-COOL)
COORDINATE ROTATION & SCALING (COORD)
MACROS (MACRO)
CHIP AUGER
TSC OR TTC (THRU SPINDLE/TOOL COOLANT)
LINEAR SCALES
40 TAPER/24 POCKET SERVO SMTC
M19 SPINDLE ORIENTATION P AND R CODES (S
SECOND MOCON BOARD
INTUITIVE PROGRAMMING SYSTEM (IPS)
WIRELESS INTUITIVE PROBING SYSTEM
POWER FAILURE MODULE (EPFDM)
MIN LUBE SYSTEM GREASE RESERVOIR(TYPE 3)
HIGH INTENSITY LIGHT (HIL)
BEARINGLESS TSC UNION
