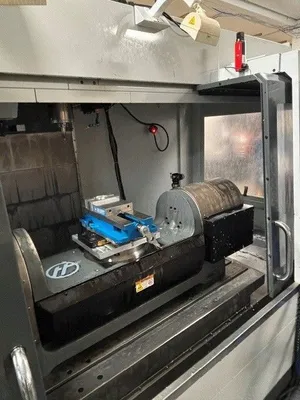

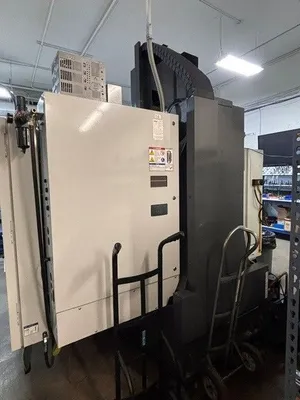

HAAS VF-6SS 5-AXIS WITH TR310 TRUNION
Have one to sell?
ConditionUsed
1 available
2012 HAAS VF-6SS 5-axis vertical machining center with TR310 trunnion, 64" x 32" x 30" travels, 12,000-rpm CAT 40 spindle, 24-tool capacity, through-spindle coolant, probing, chip auger, and HAAS CNC control. Used.
TOOL-TO-TOOL 2.3 S
CHIP-TO-CHIP 3.2 S
MAX CUTTING 833 IPM
HAAS CNC CONTROL
EXPANDED MEMORY
BRUSHLESS A AXIS (FOURTH AXIS) DEVICE
BRUSHLESS B AXIS (FIFTH AXIS) DEVICE
YASKAWA SPINDLE MOTOR (12K)
RIGID TAPPING (R-TAP)
34-POSITION COOLANT SPIGOT (P-COOL)
COORDINATE ROTATION & SCALING (COORD)
MACROS (MACRO)
CHIP CONVEYOR OR CHIP AUGER (AUGER)
TSC OR TTC (THRU SPINDLE/TOOL COOLANT)
LINEAR SCALES

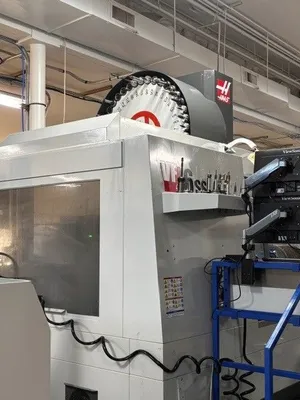

40 TAPER/24 POCKET SERVO SMTC
M19 SPINDLE ORIENTATION P AND R CODES (S
SECOND MOCON BOARD
INTUITIVE PROGRAMMING SYSTEM (IPS)
WIRELESS INTUITIVE PROBING SYSTEM
POWER FAILURE MODULE (EPFDM)
MIN LUBE SYSTEM GREASE RESERVOIR(TYPE 3)
HIGH INTENSITY LIGHT (HIL)
BEARINGLESS TSC UNION
2012 HAAS VF-6SS 5-axis vertical machining center with TR310 trunnion, 64" x 32" x 30" travels, 12,000-rpm CAT 40 spindle, 24-tool capacity, through-spindle coolant, probing, chip auger, and HAAS CNC control. Used.
Imperial
| X Travel | 64" |
| Y Travel | 32" |
| Z Travel | 30" |
| Spindle Speed | 12000 rpm |
| Tool Capacity (ATC) | 24 |
| Table Size (W) | 64" |
| Table Size (L) | 28" |
| Main Spindle Motor | 30 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 4" - 34" |
| 5 Axis Programmable Axis's | Full 5 Axis's Contouring |

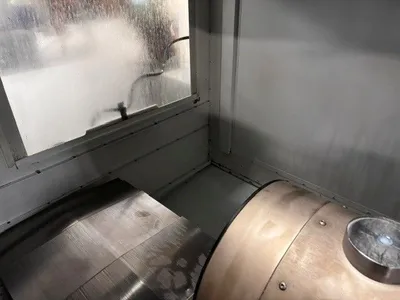

| Table Type A-Axis Trunnion Tilt Range | TR310 |
| Coolant Thru | Yes |
| Coolant Thru High Pressure | Yes |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 900 IPM/ 1200 IPM/ 1200 IPM |

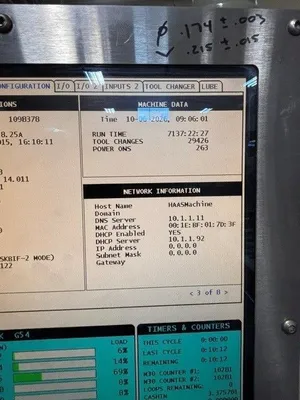

| Control | CNC (HAAS CNC CONTROL) |
| Dimensions | 195" X 102" X 130" |
| Weight | 22,300 LBS |
TOOL-TO-TOOL 2.3 S
CHIP-TO-CHIP 3.2 S
MAX CUTTING 833 IPM
HAAS CNC CONTROL
EXPANDED MEMORY
BRUSHLESS A AXIS (FOURTH AXIS) DEVICE
BRUSHLESS B AXIS (FIFTH AXIS) DEVICE
YASKAWA SPINDLE MOTOR (12K)
RIGID TAPPING (R-TAP)
34-POSITION COOLANT SPIGOT (P-COOL)
COORDINATE ROTATION & SCALING (COORD)
MACROS (MACRO)
CHIP CONVEYOR OR CHIP AUGER (AUGER)
TSC OR TTC (THRU SPINDLE/TOOL COOLANT)
LINEAR SCALES
40 TAPER/24 POCKET SERVO SMTC
M19 SPINDLE ORIENTATION P AND R CODES (S
SECOND MOCON BOARD
INTUITIVE PROGRAMMING SYSTEM (IPS)
WIRELESS INTUITIVE PROBING SYSTEM
POWER FAILURE MODULE (EPFDM)
MIN LUBE SYSTEM GREASE RESERVOIR(TYPE 3)
HIGH INTENSITY LIGHT (HIL)
BEARINGLESS TSC UNION
