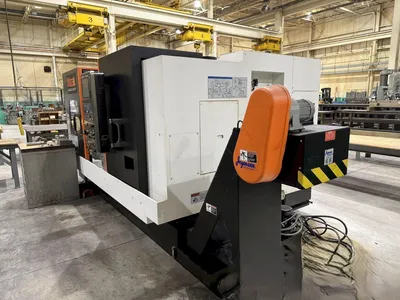

MAZAK QTN 400-II M CNC LATHE W/MILLING

Have one to sell?
(480) 423-9045
Sales@QMSused.com
ConditionUsed
1 available
Have one to sell?

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 400-II M
Condition:
Very Good
Year:
2016
Stock #:
211094
Status:
For Sale

Description

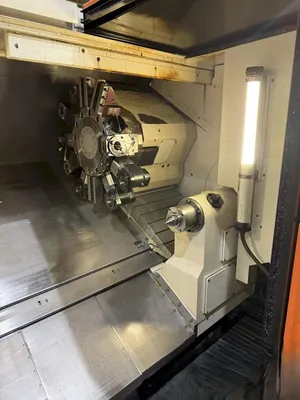

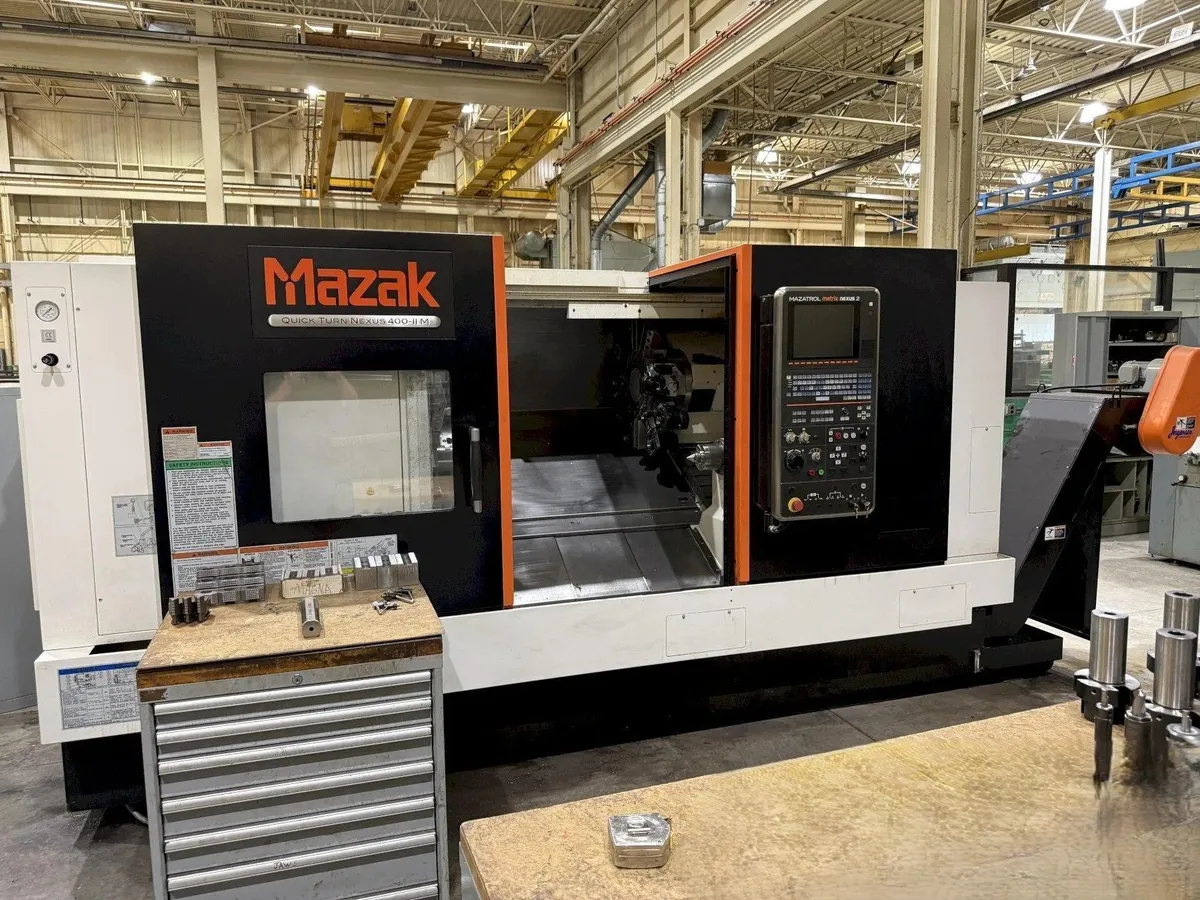

2016 Mazak QTN 400-II M CNC lathe with milling, Mazatrol Matrix Nexus 2 control, live tooling, 12-position turret, tailstock, chip conveyor and tool presetter. 33.268" swing, 22.835" max turning diameter and 4.01" bar capacity. Used.

Maximum Swing33.268"845.01 mm
Max Turning Diameter22.835"580.01 mm
Main Spindle Bore/Max Bar Capacity4.4/ 4.014.4/ 4.01
Tail Stock/Sub SpindleTail StockTail Stock
Distance Between Centers40.35"1,024.9 mm
X-Axis Travel (X1, X2, X3)12.1212.12
Z-Axis Travel (Z1, Z2, Z3)42.1242.12
C-Axis Indexing (1, 2)0.001°0.001°

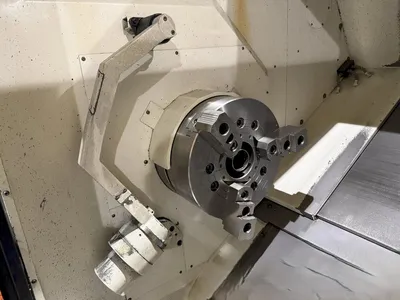

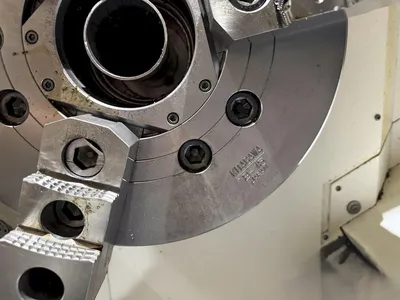

Main Spindle Chuck Size15"381 mm
Main Spindle Chuck TypeHydraulicHydraulic
Main Spindle Bore Diameter4.4"111.76 mm
Main Spindle Maximum Bar Work4.01"101.85 mm
Main Spindle Speed2,500 RPM2,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)50/ 4050/ 40

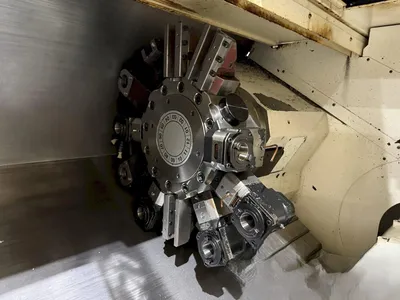

Turret Tool Positions 1, 21212
Turret Rotary Tool Spindle Speed 1, 240004000
Turret Rotary Tool Horse Power 1, 21010
Chip ConveyorYesYes
Tool Eye Automatic Front SpindleYesYes
High Pressure Coolant System (PSI)300300

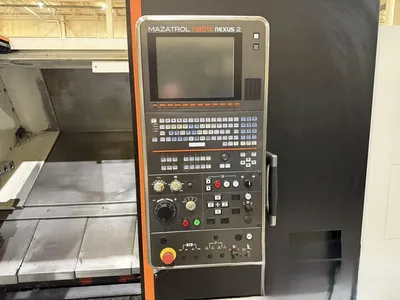

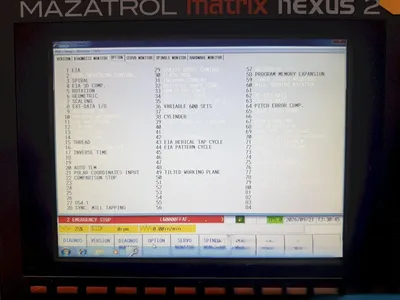

ControlCNC (MAZATROL MATRIX NEXUS 2)CNC (MAZATROL MATRIX NEXUS 2)
Weight20300 lbs20300 lbs

MAXIMUM SUPPORT WEIGHT (CHUCK/SHAFT)  2,205 LBS / 2,923 LBS
SPINDLE NOSE                          A2-11
NUMBER OF TOOLS                       12 POSITION VDI TURRET
TOOL SIZE (OUTSIDE/INSIDE)            1.26" / 2.0"
TURRET INDEX TIME (ONE/FULL)          0.25 SEC/ 0.8 SEC
TAILSTOCK TRAVEL                      40.354"
COOLANT TANK CAPACITY                 11.3 GAL. (US)

MAZATROL MATRIX NEXUS 2 CNC CONTROL
CHIP CONVEYOR
COOLANT TANK & PUMP
TOOL PRESETTER

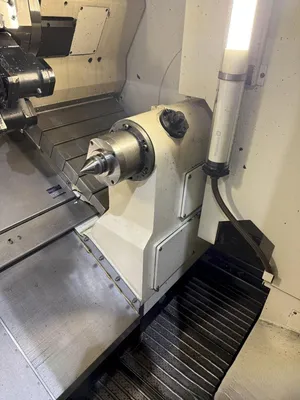

TAILSTOCK
LIVE TOOLING

Overview

Type:
CNC LATHES MULTI AXIS
Manufacturer:
MAZAK
Model:
QTN 400-II M
Condition:
Very Good
Year:
2016
Stock #:
211094
Status:
For Sale

Description

2016 Mazak QTN 400-II M CNC lathe with milling, Mazatrol Matrix Nexus 2 control, live tooling, 12-position turret, tailstock, chip conveyor and tool presetter. 33.268" swing, 22.835" max turning diameter and 4.01" bar capacity. Used.

Specifications

Imperial

Maximum Swing33.268"
Max Turning Diameter22.835"
Main Spindle Bore/Max Bar Capacity4.4/ 4.01
Tail Stock/Sub SpindleTail Stock
Distance Between Centers40.35"
X-Axis Travel (X1, X2, X3)12.12
Z-Axis Travel (Z1, Z2, Z3)42.12
C-Axis Indexing (1, 2)0.001°
Main Spindle Chuck Size15"
Main Spindle Chuck TypeHydraulic
Main Spindle Bore Diameter4.4"
Main Spindle Maximum Bar Work4.01"
Main Spindle Speed2,500 RPM
Main Spindle Horsepower (CONT. /30 MINS)50/ 40
Turret Tool Positions 1, 212
Turret Rotary Tool Spindle Speed 1, 24000
Turret Rotary Tool Horse Power 1, 210
Chip ConveyorYes
Tool Eye Automatic Front SpindleYes
High Pressure Coolant System (PSI)300
ControlCNC (MAZATROL MATRIX NEXUS 2)
Weight20300 lbs

MAXIMUM SUPPORT WEIGHT (CHUCK/SHAFT)  2,205 LBS / 2,923 LBS
SPINDLE NOSE                          A2-11
NUMBER OF TOOLS                       12 POSITION VDI TURRET
TOOL SIZE (OUTSIDE/INSIDE)            1.26" / 2.0"
TURRET INDEX TIME (ONE/FULL)          0.25 SEC/ 0.8 SEC
TAILSTOCK TRAVEL                      40.354"
COOLANT TANK CAPACITY                 11.3 GAL. (US)

Equipped With

MAZATROL MATRIX NEXUS 2 CNC CONTROL
CHIP CONVEYOR
COOLANT TANK & PUMP
TOOL PRESETTER
TAILSTOCK
LIVE TOOLING
