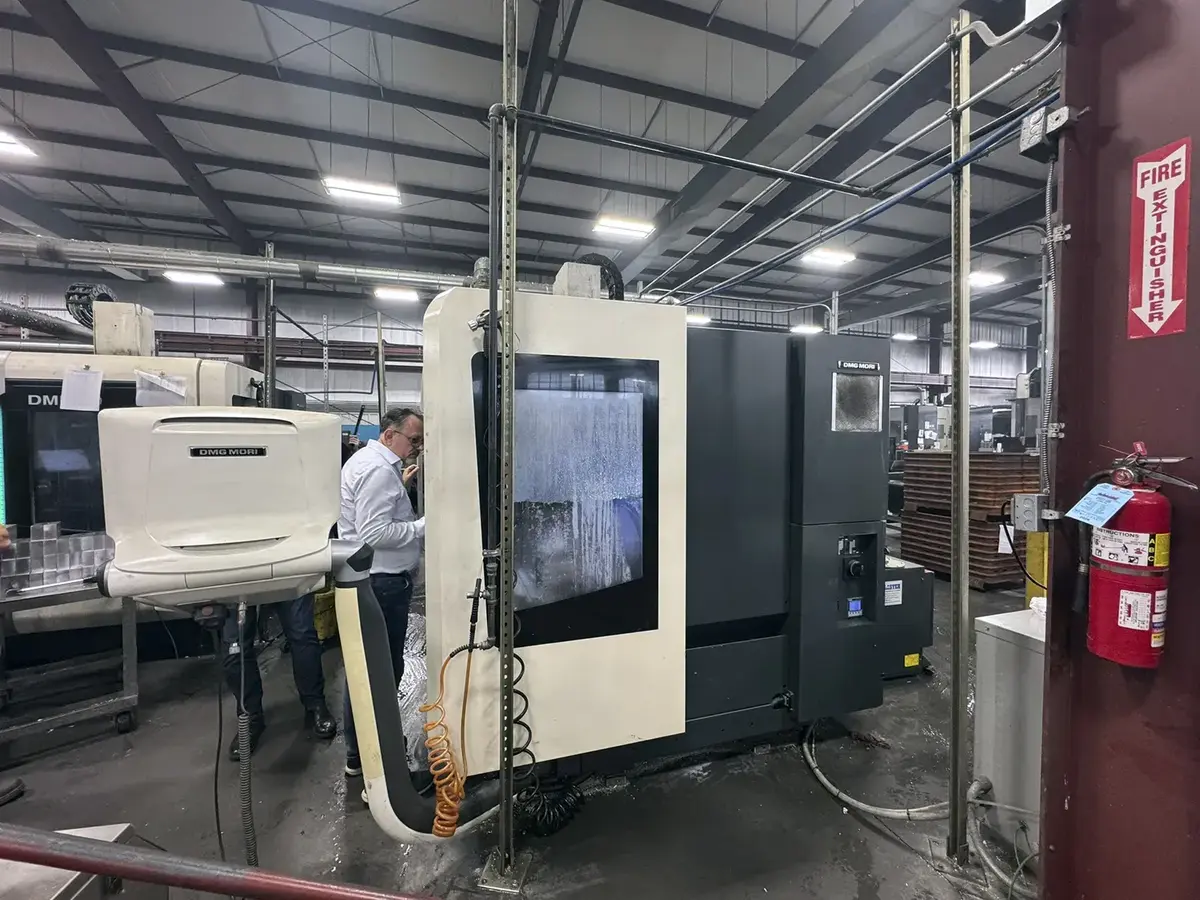

2018 DMG Mori DMU 50 Gen III Vertical 5-Axis Machining Center
Have one to sell?
ConditionUsed
1 available
$169,500.00 USD
2018 DMG MORI DMU 50 Gen III 5-axis machining center featuring a 15,000-rpm CAT40 spindle, 60-tool ATC, Siemens 840D SL control, 1000 psi high-pressure through-spindle coolant, Renishaw probe, and chip conveyor.
MAX TABLE LOAD 660 LBS
TOOL DIAMETER 3.14”-5.11”
TOOL LENGTH 11.8”
TOOL WEIGHT 13.2 LBS
MAX WORKPIECE HEIGHT 11.8”
CELOS SIEMENS 840D SL CONTROL

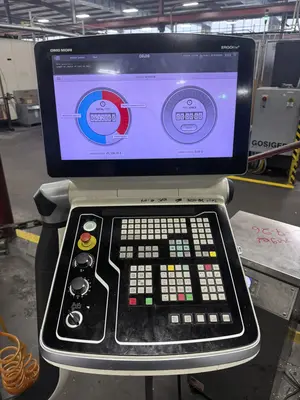

21.5" ERGOLINE MULTI-TOUCH CONTROL PANEL

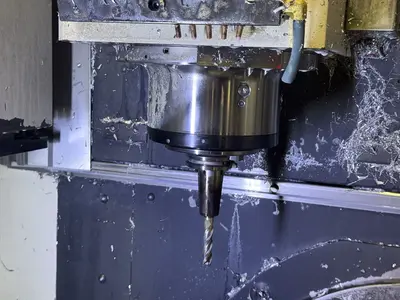

CAT40 15000 RPM SPEEDMASTER SPINDLE

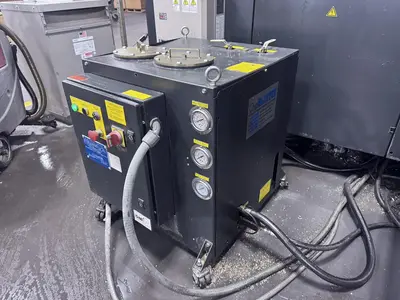

CHIPBLASTER HIGH PRESSURE COOLANT THROUGH SPINDLE

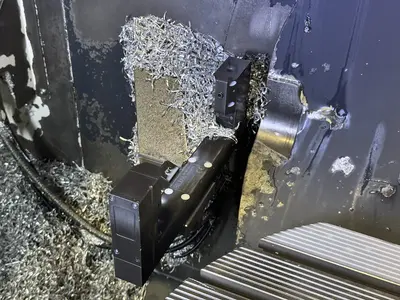

BLUM LASER CONTROL MICRO COMPACT TOOL MEASURING IN MACHINING AREA
RENISHAW INFRARED SPINDLE PROBE

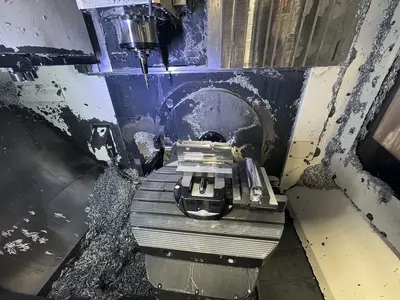

5-AXIS SIMULTANEOUS SWIVEL ROTARY TABLE
CHIP CONVEYOR
SPRAY GUN SIGNAL LIGHT TOWER
2018 DMG MORI DMU 50 Gen III 5-axis machining center featuring a 15,000-rpm CAT40 spindle, 60-tool ATC, Siemens 840D SL control, 1000 psi high-pressure through-spindle coolant, Renishaw probe, and chip conveyor.
Imperial
| X Travel | 25.6" |
| Y Travel | 20.47" |
| Z Travel | 18.7" |
| Spindle Speed | 15000 rpm |
| Tool Capacity (ATC) | 60 |
| Table Size (W) | 24.8" |
| Table Size (L) | 19.6" |
| Main Spindle Motor | 28 hp |
| Spindle Taper | CAT 40 |
| Spindle Nose To Table Top | 5.9” - 24.6” |
| Table Type A-Axis Trunnion Tilt Range | -35 / +110 degrees |
| Coolant Thru High Pressure | Yes |
| Hi Pressure Coolant System | 1000 psi |
| Part Probe | Yes |
| Tool Probe/Auto Tool Length Measurement | Yes |
| B-Axis (Table Swivel) | 360,000 degrees |
| Rapid Traverse Rates: X Axis Y Axis Z Axis | 1654 IPM/ 1654 IPM/ 1654 IPM |
| Chip Conveyor | YES |
| Control | CNC (SIEMENS 840D) |
| Weight | 16,500 lbs |
MAX TABLE LOAD 660 LBS
TOOL DIAMETER 3.14”-5.11”
TOOL LENGTH 11.8”
TOOL WEIGHT 13.2 LBS
MAX WORKPIECE HEIGHT 11.8”
CELOS SIEMENS 840D SL CONTROL
21.5" ERGOLINE MULTI-TOUCH CONTROL PANEL
CAT40 15000 RPM SPEEDMASTER SPINDLE
CHIPBLASTER HIGH PRESSURE COOLANT THROUGH SPINDLE
BLUM LASER CONTROL MICRO COMPACT TOOL MEASURING IN MACHINING AREA
RENISHAW INFRARED SPINDLE PROBE
5-AXIS SIMULTANEOUS SWIVEL ROTARY TABLE
CHIP CONVEYOR
SPRAY GUN SIGNAL LIGHT TOWER
