MAZAK QTN 250MSY - MILLING, SUBSPINDLE & Y-AXIS
Have one to sell?
ConditionUsed
1 available

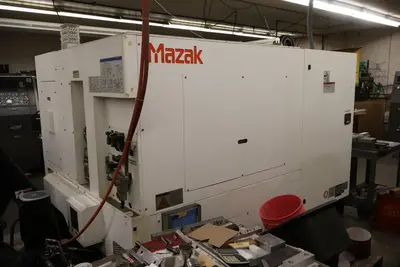

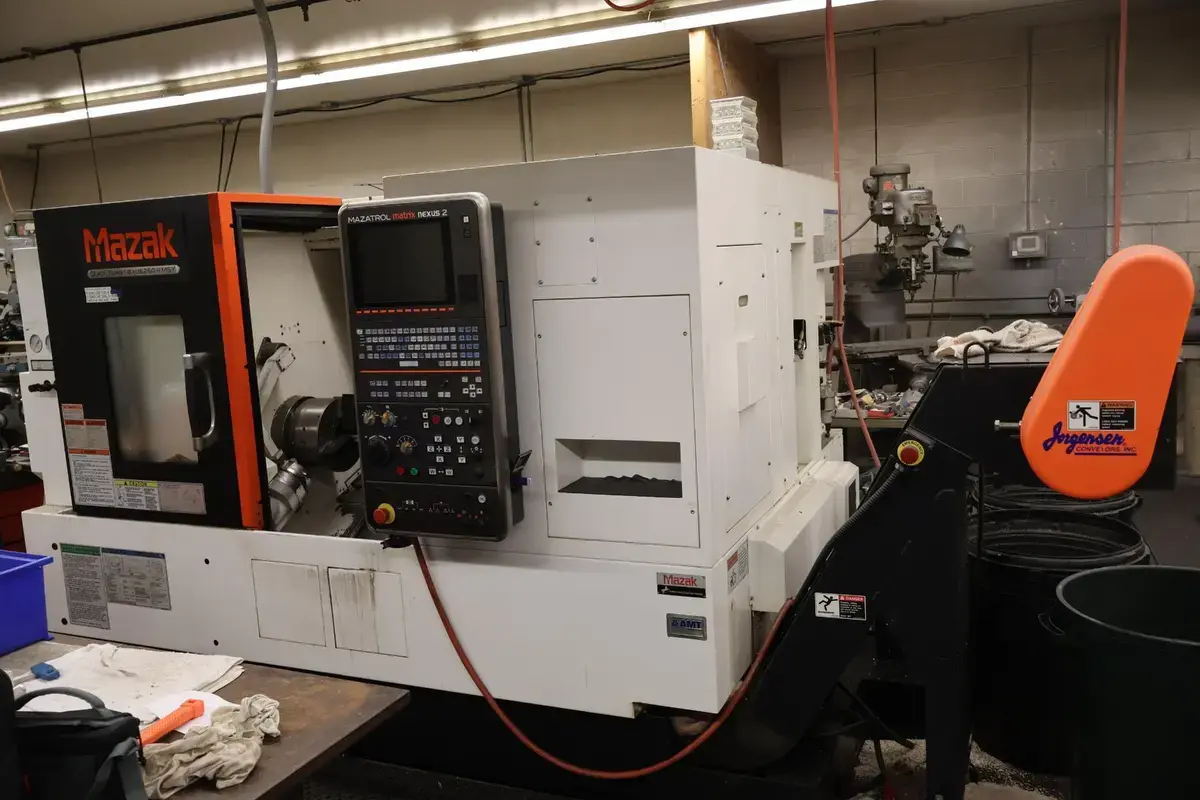

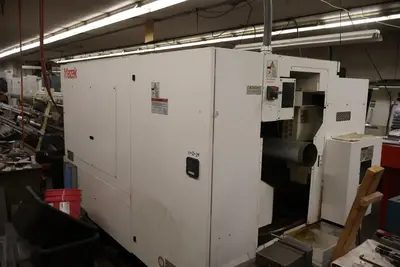

2014 MAZAK QTN 250MSY-II multi-axis CNC lathe with 4,000 RPM main spindle, 6,000 RPM sub-spindle, 12-position turret, live and static tool holders, tool presetter, and chip conveyor. Used.

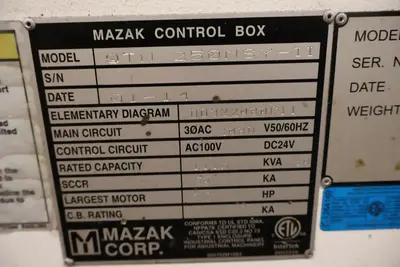

Electrics: 208 Volts, 3-phase, 50-60 Cycle
CNC Unit Dimensions (approx.): 119" x 73" x 72"
Scrap Conveyor Dims (approx.): 50" x 24" x 64"
CNC Unit Weight (approx.): 12,600 lbs.
TOOL PRESETTER

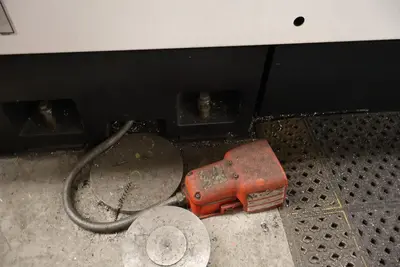

FOOT PEDAL

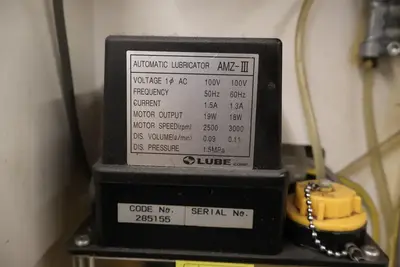

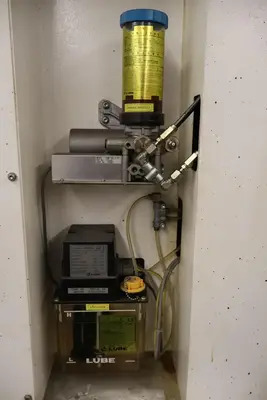

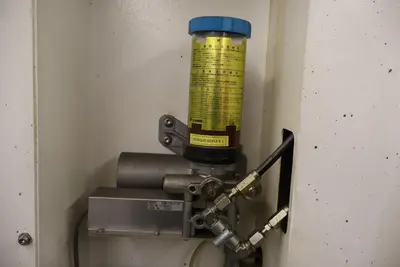

AUTO-INDUSTRIAL LUBRICATION SYSTEM

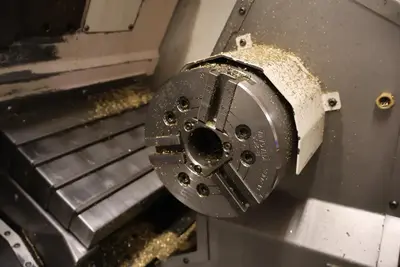

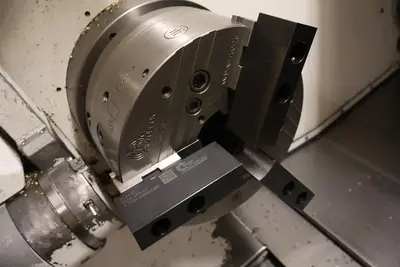

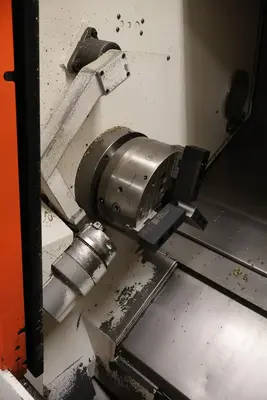

3-JAW 10" QUICK-CHANGE POWER CHUCK
3-JAW, 6" SUB-SPINDLE CHUCK/ 1.77" THROUGH-HOLE

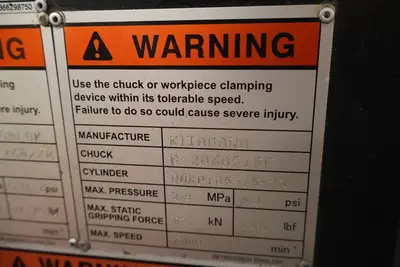

KITAGAWA B-200 SERIES POWER CHUCK

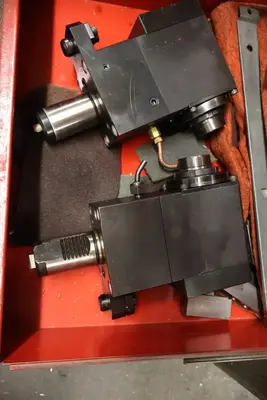

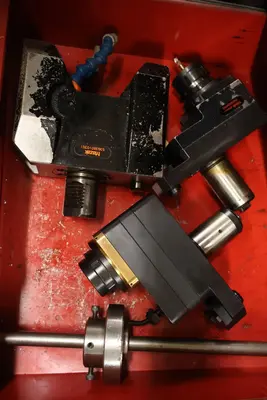

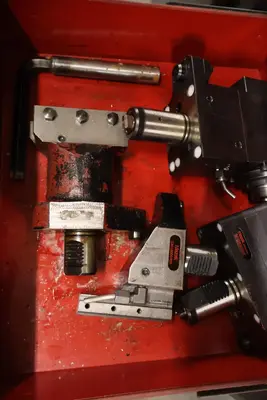

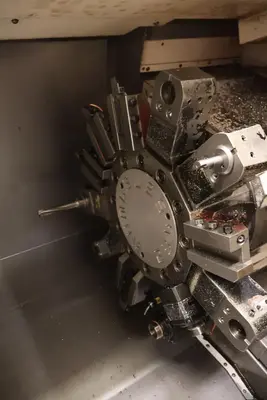

LIVE AND STATIC TOOL HOLDERS

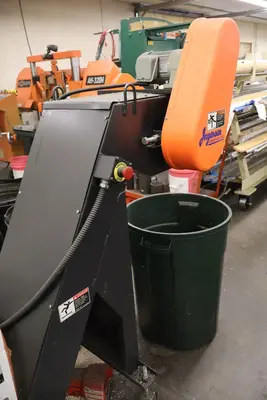

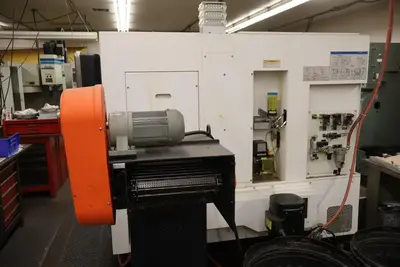

CHIP CONVEYOR
2014 MAZAK QTN 250MSY-II multi-axis CNC lathe with 4,000 RPM main spindle, 6,000 RPM sub-spindle, 12-position turret, live and static tool holders, tool presetter, and chip conveyor. Used.
Imperial
| Maximum Swing | 26.5" |
| Max Turning Diameter | 14.75" |
| Main Spindle Bore/Max Bar Capacity | 3.46"/ 3.0" |
| Tail Stock/Sub Spindle | Sub Spindle |
| Maximum Swing Over Cross Slide | 14" |
| Maximum Cutting Length | 21.27" |
| Distance Between Spindles | 21.28" |
| X-Axis Travel (X1, X2, X3) | 9 |
| Z-Axis Travel (Z1, Z2, Z3) | 22.62 |
| Y-Axis Travel (Y1, Y2, Y3) | + / - 2.0" |
| C-Axis Indexing (1, 2) | .0001 DEGREE |
| Main Spindle Chuck Size | 10" |
| Main Spindle Chuck Type | Collet |
| Main Spindle Bore Diameter | 3.46" |
| Main Spindle Maximum Bar Work | 3" |
| Main Spindle Speed | 4,000 RPM |
| Main Spindle Horsepower (CONT. /30 MINS) | 35/ 30 |
| Sub Spindle/2nd Spindle Chuck Size | 6 |
| Sub Spindle/2nd Spindle Bore Size | 1.77" THROUGH HOLE |
| Sub Spindle/2nd Spindle Chuck Type | Hydraulic |
| Sub Spindle/2nd Spindle Speed | 6,000 RPM |
| Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) | 15 |

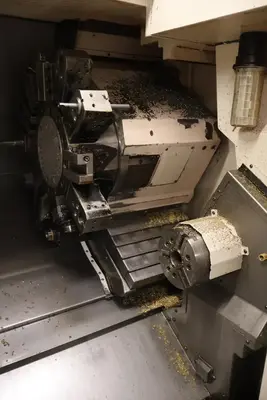

| Turret Tool Positions 1, 2 | 12 |
| Turret Rotary Tool Spindle Speed 1, 2 | 4500 |
| Turret Rotary Tool Horse Power 1, 2 | 7.5 |
| Bar Feed | No |
| Parts Catcher | No |
| Chip Conveyor | Yes |
| Tool Eye Automatic Front Spindle | Yes |
| High Pressure Coolant System (PSI) | 213 |

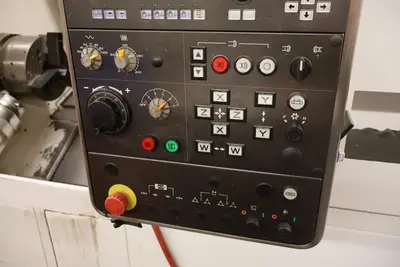

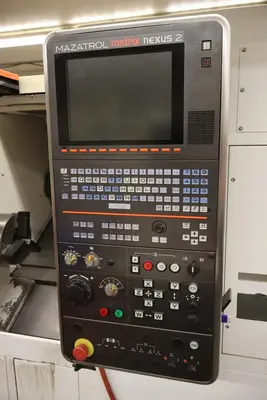

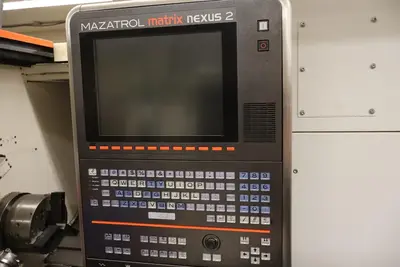

| Control | CNC (MAZATROL MATRIX NEXUS) |
| Dimensions | 119" x 73" x 72" |
| Weight | 12,620 |
Electrics: 208 Volts, 3-phase, 50-60 Cycle
CNC Unit Dimensions (approx.): 119" x 73" x 72"
Scrap Conveyor Dims (approx.): 50" x 24" x 64"
CNC Unit Weight (approx.): 12,600 lbs.
TOOL PRESETTER
FOOT PEDAL
AUTO-INDUSTRIAL LUBRICATION SYSTEM
3-JAW 10" QUICK-CHANGE POWER CHUCK
3-JAW, 6" SUB-SPINDLE CHUCK/ 1.77" THROUGH-HOLE
KITAGAWA B-200 SERIES POWER CHUCK
LIVE AND STATIC TOOL HOLDERS
CHIP CONVEYOR
